Automatic Portable orbital stainless steel pipe cutting machine pipe groove cutting beveling machine

Production Description:

This Series Are Split Frame Hydraulic Pipe Cutting And Beveling Machine with the following advantages:

• Lighter weight,minimal radial space,easy to operate.Can separate to two half
• Cold cutting only cutting,Only beveling, Cutting and beveling simultaneously
• Driveing Type:Electric-OEC,Pneumatic-OCP,Hydraulic-OCH,NC-OCS
• Especially used for cutting thick wall thickness,large processing quantity
• Heavy duty steel body and aluminum body,asjustable speed
• Angle:0°-45°(As your requiry)

Machine Features:

• Condition: New
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: Wellnit
• Model Number: OCP-914
• Voltage: 220-415V
• Rated Power: 12.5Mpa
• Dimension(L*W*H): 1155*675*510mm
• Weight: 196KGS
• Certification: ISO/CE
• Warranty: 1 Year
• After-sales Service Provided: Engineers available to service machinery overseas
• Mounting Method: Split OD Mount
• Motor: Pneumatic Motor
• Wall Thickness: ≤30mm
• Working Range: 30"-36"
• Air Pressure: 0.7-1MPa
• Air Consumption: 1500-2000L/min

• Tech data:

• Model	Working Range (ID-OD)		Wall Thickness	Rotation Speed
  OCE/ OCP-89	Φ25-89	3/4''-3''	≤35	42r/min
  OCE/ OCP-159	Φ50-159	2''-5''	≤35	20r/min
  OCE/ OCP-168	Φ50-168	2''-6''	≤35	18r/min
  OCE/ OCP-230	Φ80-230	3''-8''	≤35	15r/min
  OCE/ OCP-275	Φ125-275	5''-10''	≤35	14r/min
  OCE/ OCP-305	Φ150-305	6''-10''	≤35	13r/min
  OCE/ OCP-325	Φ168-325	6''-12''	≤35	13r/min
  OCE/ OCP-377	Φ219-377	8''-14''	≤35	12r/min
  OCE/ OCP-426	Φ273-426	10''-16''	≤35	12r/min
  OCE/ OCP-457	Φ300-457	12''-18''	≤35	12r/min
  OCE/ OCP-508	Φ355-508	14''-20''	≤35	12r/min
  OCE/ OCP-560	Φ400-506	16''-22''	≤35	12r/min
  OCE/ OCP-610	Φ457-610	18''-24''	≤35	11r/min
  OCE/ OCP-630	Φ480-630	20''-24''	≤35	11r/min
  OCE/ OCP-660	Φ508-660	20''-26''	≤35	11r/min
  OCE/ OCP-715	Φ560-715	22''-28''	≤35	11r/min
  OCE/ OCP-762	Φ600-762	24''-30''	≤35	11r/min
  OCE/ OCP-830	Φ660-813	26''-32''	≤35	10r/min
  OCE/ OCP-914	Φ762-914	30''-36''	≤35	10r/min
  OCE/ OCP-1066	Φ914-1066	36''-42''	≤35	10r/min
  OCE/ OCP-1230	Φ1066-1230	42''-48''	≤35	10r/min

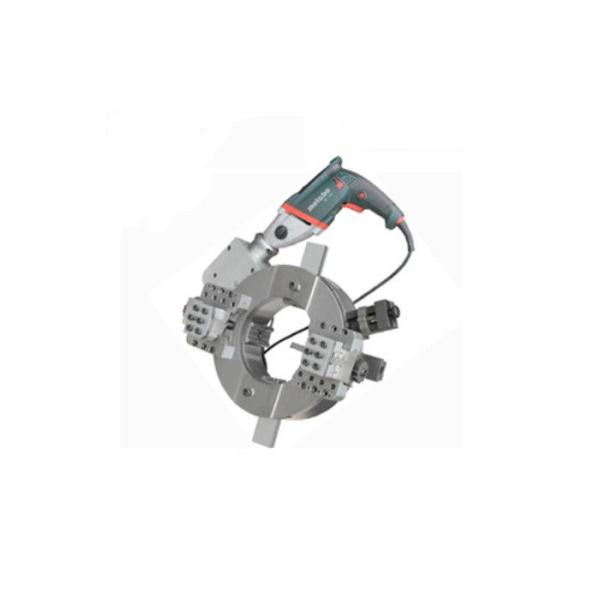

Electric operation type:

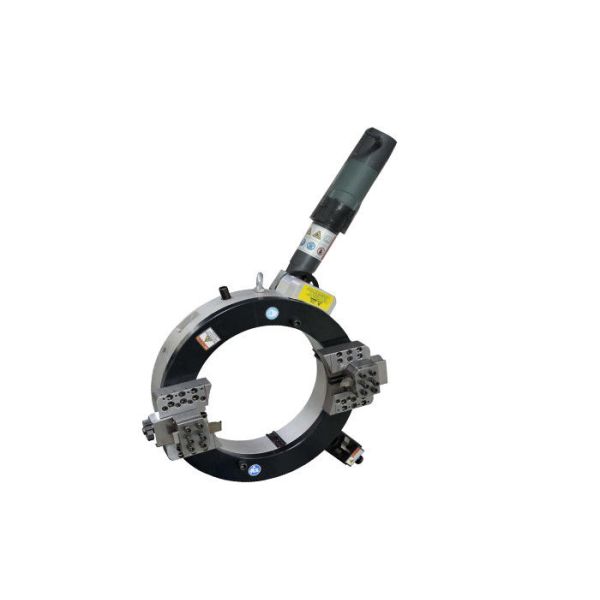

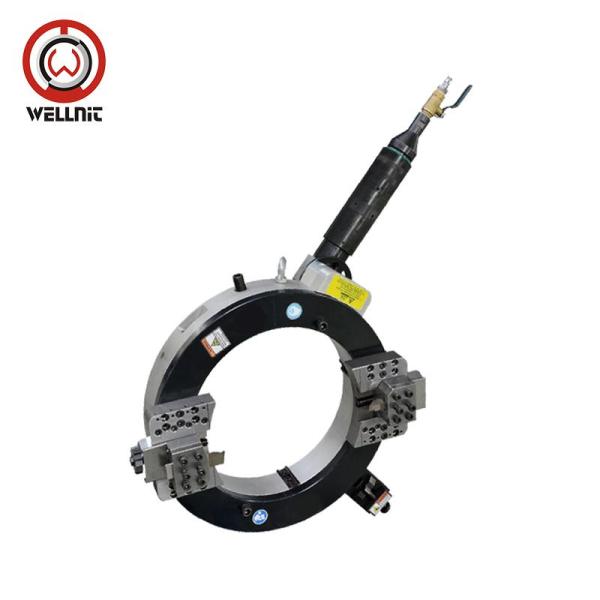

Penumatic operation type:

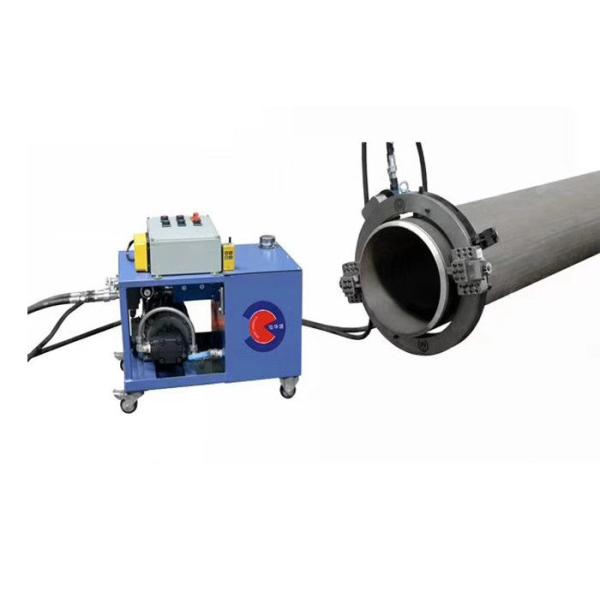

Hydraulic operation type:

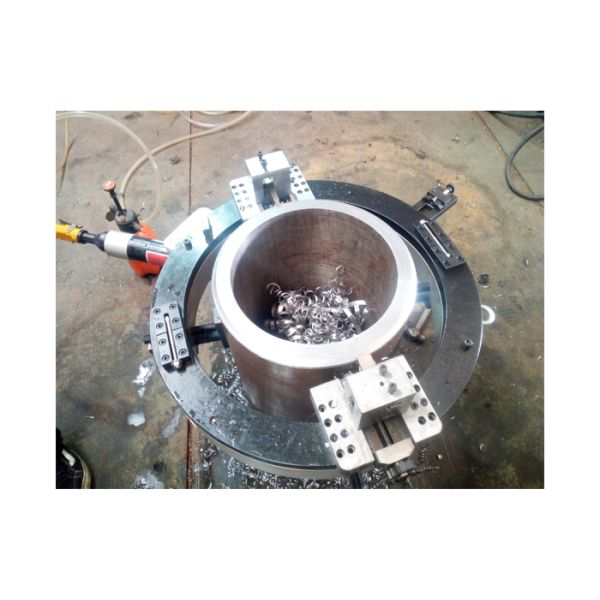

Machine detail parts pictures:

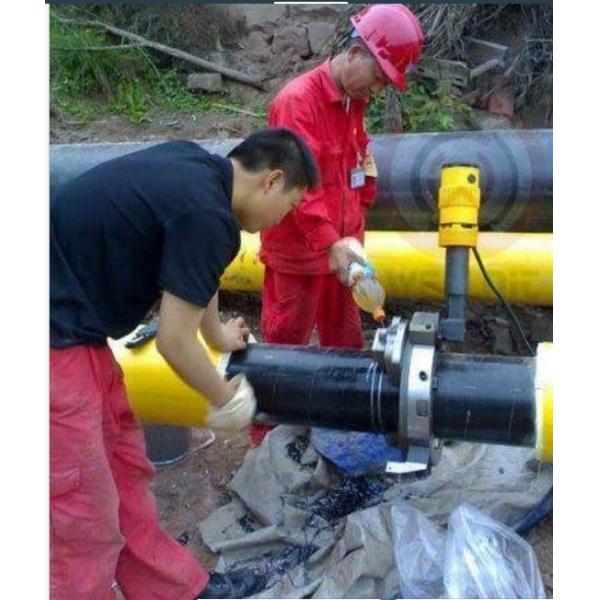

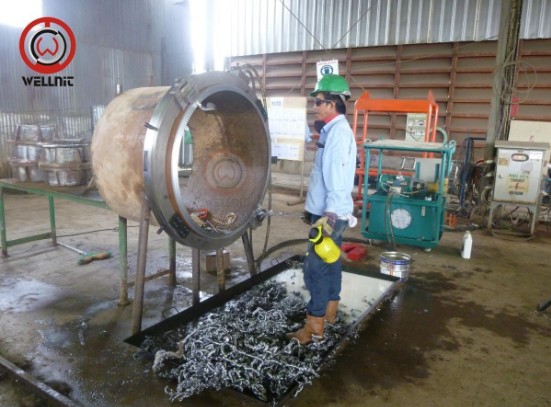

Machine on site :

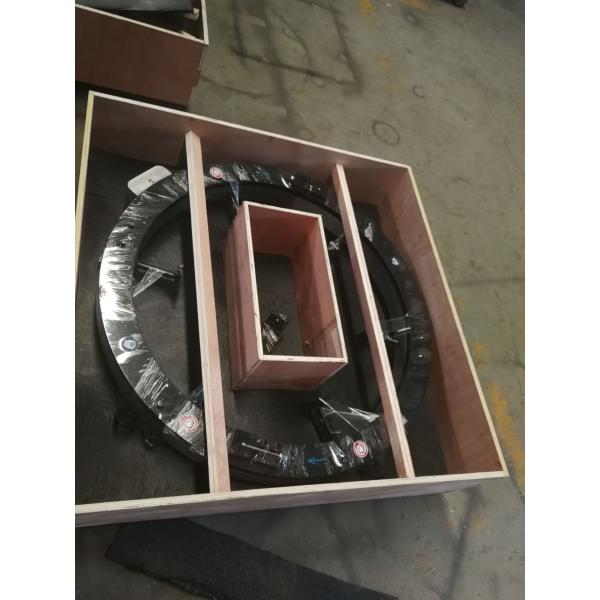

• Packaging & Delivery

• Packaging Details	Shrink-wrapped machine body inside, exported standard wooden case outside. 1 set/ WELLNIT standard case.
  Delivery Time	Shipped in 3 days after payment

•

  Our fair :
•
• Our workshop:
•
• Our certification:
•
