Anti Corrosion 2870r/Min Plate Edge Milling Machine
Anti Corrosion 2870r/Min Plate Edge Milling Machine
Specifications
Brand Name :
Wellnit
Model Number :
PBM-15
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10sets/day
Delivery Time :
with1- 7 days
Packaging Details :
Plywood Box
Rated Power: :
1620W
Voltage :
380V/220V,50HZ
Milling Angle: :
30°-60°
Material :
METAL
Bevel Width: :
1-15mm
speed: :
2870r/min
Gross Weight: :
18Kgs
Total power: :
1.1KW
Dimension(L*W*H): :
665*605*845mm
Description

PBM-15 Small Plate edge milling machine wellnit for sale

The Machine bevel the steel, plate, stainless steel and aluminum automatically, which have big difference with milling machine in the market. We provide customer stable products.

A quick and easy edge bevelling solution designed for edge preparation of steel plate.

The PBM-15 beveling machine can provide stable output power. The advantage of machine is light in

weight(compare with similar product), safety in use, easy operation and high efficiency in milling process. The machine is suitable for plate beveling process before welding.


The PBM-15 milling machine:
1. Machine parts:Anti-corrosion,hardening and tempering,abrasion treatment;
2. Welded parts: Stress relief treatment, deburring treatment, high temperature paint treatment;
3. More safe: The Control box is separate from the Electrical box, high voltage power supply do not contact with operation interface.

Specification:

Power Supply AC 380V 50HZ Bevel Width 1-15mm
Total Power 1100W Cutter Qty 5Pcs
Clamp Thickness no limited Rotation 2870r/min
Operation TYPE Electric Bevel Angle 30-60deg
Max bevel width 15mm Net Weight 18Kgs
Porcess Material

CS,SS,Aluminum,

compound and ohters

 Gross Weight 22Kgs

Feature:


1. The beveling surface of plate is smooth and flat, and no oxidation layer in it, easy for welding.
2. Meet the pre-welding requirement for K, V, X and Y-type welded joint.
3. Suitable to use on the steel plate, cast iron and hard plastics, and it also can be used on the chrome

steel and other high-strengh materials.

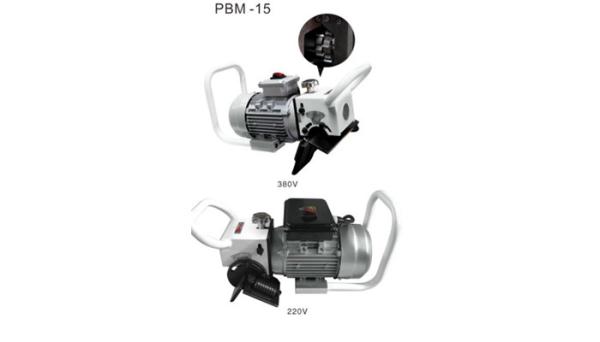

Detail image:

Anti Corrosion 2870r/Min Plate Edge Milling MachineAnti Corrosion 2870r/Min Plate Edge Milling Machine

Anti Corrosion 2870r/Min Plate Edge Milling Machine

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. Or 30 days , it's depand to quantity.

Q: What is your terms of payment ?

A:

1) T/T 50% deposit, the Balance shall be paid after the goods inspected but before the shipment;

2) If all the cost is less than USD $ 10000, T/T 100% required in advance.

Order Guide

Before you place order to us, please let us know the following information:

*Choose the right Model


*Confirm your electric power supply ( Voltage, frequency and phase)


*Confirm the beveling angel required


*Confirm the welding joint required (U, V, Double V or Compound preparation)


*Advise your pipe material ( Carbon steel, stainless steel or others)


*Other special demands about machine


*The spare parts needed


*If the pipe wall thickness more than 30mm, inform us in advance (Important)

Packaging

Selling Units: Single item
Single package size: 80X69X114 cm
Single gross weight: 25.0 KG
Package Type: Wooden Case
