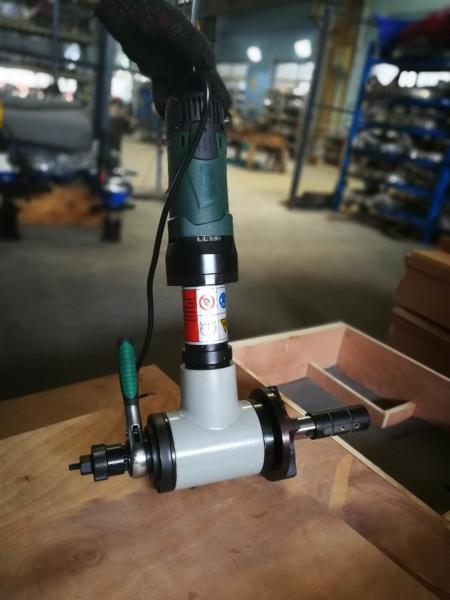

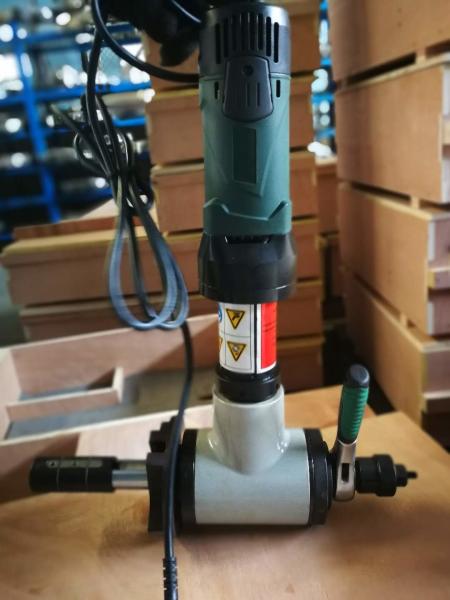

ISP -120 ISO Pneumatic Pipe Beveler , Pipe Beveling Chamfering Machine
ISP -120 ISO Pneumatic Pipe Beveler , Pipe Beveling Chamfering Machine
ISP -120 ISO Pneumatic Pipe Beveler , Pipe Beveling Chamfering Machine
ISP -120 ISO Pneumatic Pipe Beveler , Pipe Beveling Chamfering Machine
ISP -120 ISO Pneumatic Pipe Beveler , Pipe Beveling Chamfering Machine
ISP -120 ISO Pneumatic Pipe Beveler , Pipe Beveling Chamfering Machine
Specifications
Brand Name :
wellnit
Model Number :
ISP-120
Certification :
ISO
Place of Origin :
china
MOQ :
1set
Price :
USD+412-559+set
Supply Ability :
50sets/week
Delivery Time :
5-7days
Packaging Details :
wooden packing
Material :
Carbon Steel
Colour :
Green,gray
Operation Type :
Penumatic ,electric
Working Range :
40-120mm
Beveling Tool Bits :
0°，15°，30°，37.5°
Beveling Bits Material :
SS,CS
Description

Product Name:

ISP-120 Pneumatic Driving Pipe Portable Pipe Beveling Machine With Pneumatic Driven

ISP -120 ISO Pneumatic Pipe Beveler , Pipe Beveling Chamfering Machine

Products Description

ISP Series is ID-Mounted pipe beveling machine. With the advantages: Easy operation, Light Weight, Adraw nut is tightened, Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. It's can work with various material pipe, beveling angle as per your required. This machine could driven by both Electric and Pneumatic.

Below Technical Specifications for Pneumatic Type stainless steel tube polishing Machine :

Model Working Range (ID-OD) Wall Thickness Rotation Speed Air pressure Air Consumption
ISP-30 Φ18-30 1/2''-3/4'' ≤15 60r/min 0.6MPa 900 L/min
ISP--80 Φ28-89 1''-3'' ≤15 50r/min 0.6MPa 900 L/min
ISP--120 Φ40-120 1 1/4''-4'' ≤15 38r/min 0.6MPa 900 L/min
ISP--159 Φ65-159 2 1/2''-5'' ≤20 35r/min 0.6MPa 1000 L/min
ISP--252-1 Φ80-273 3''-10'' ≤20 16r/min 0.6MPa 1000 L/min
ISP--252-2 Φ80-273 ≤75 16r/min 0.6MPa 1000 L/min
ISP--352-1 Φ150-356 6''-14'' ≤20 14r/min 0.6MPa 1200 L/min
ISP--352-2 Φ150-356 ≤75 14r/min 0.6MPa 1200 L/min
ISP--426-1 Φ273-426 10''-16'' ≤20 12r/min 0.7MPa 1500 L/min
ISP--426-2 Φ273-426 ≤75 12r/min 0.7MPa 1500 L/min
ISP--630-1 Φ300-630 12''-24'' ≤20 10r/min 0.7MPa 1500 L/min
ISP--630-2 Φ300-630 ≤75 10r/min 0.7MPa 1500 L/min
ISP--850-1 Φ490-850 24''-34'' ≤20 9r/min 0.7MPa 1500 L/min
ISP--850-2 Φ490-850 ≤75 9r/min 0.7MPa 1500 L/min

Research and test dpt:

ISP -120 ISO Pneumatic Pipe Beveler , Pipe Beveling Chamfering Machine

ISE mean that driven is Electric

ISP mean that driven is Pneumatic

Pnuematic driven need meet air requirements.

Power supply:0.6-0.8MPa

Air consumption:650-1000L/Min

ISM mean that driven is Metabo(Germany import with overload protect)

Different Model that Working Range is different.

The Opeation general steps as follows:

1.Measure pipe size(I.D),choose suitable expand block and install.

2.put machine in the pipe,fixed the machine

3.install the tools

4.start to process
