Automatic Clamping Beveling Machine / Plate Edge Milling Machine For Plate And Pipes
Automatic Clamping Beveling Machine / Plate Edge Milling Machine For Plate And Pipes
Automatic Clamping Beveling Machine / Plate Edge Milling Machine For Plate And Pipes
Automatic Clamping Beveling Machine / Plate Edge Milling Machine For Plate And Pipes
Automatic Clamping Beveling Machine / Plate Edge Milling Machine For Plate And Pipes
Automatic Clamping Beveling Machine / Plate Edge Milling Machine For Plate And Pipes
Specifications
Brand Name :
Wellnit
Model Number :
PB-60L
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
USD 3882 SET
Supply Ability :
7SETS WEEK
Packaging Details :
WOODEN PACKING
Material :
Metal Iron
Power :
AC 380V 50HZ,3400W
Feed speed :
0-1500mm/min
Clamp Width :
above 80mm
Process Length :
above 300mm
Bevel Width :
0-55mm
Slope Angle :
0-90degree
Working Height :
820-860mm
Net Weight :
220KG
Process Material :
cs,ss,aluminum ,coposite
Description

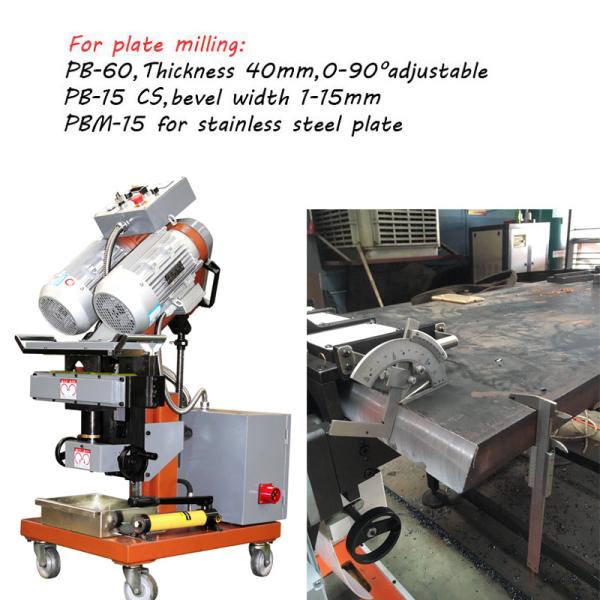

Automatic Clamping Beveling Machine / Plate Edge Milling Machine For Plate And Pipes

Products Description

This series machine is mainly for Metal Plate Edge Beveling & Chamferring for welding preperation.It is widely used in some aerospace, shipbuilding, metallurgy, pressure vessels, petrochemical and welding manufacturing fields, can process low carbon steel, stainless steel, aluminium alloy etc.

Automatic Clamping Beveling Machine / Plate Edge Milling Machine For Plate And Pipes

Note: This model with multi function to Process both Metal Plate and Pipe /tube

Model No. PB-60L
Power Supply AC 380V/220V 50Hz
Motor Power 3400W
Clamping Plate Thickness 6-60mm
Min.Processing Plate Width ≥80mm
Net Weight for Machine 220KG
Beveling Width

Single beveling width: 10mm

Max. beveling width: 55mm
Beveling Angle 25°, 30°, 35°, 40°, 45°( Match bevel angle)
Beveling Speed 0-1500m/min
Packaging Details

77*69*133mm,N/W:250KG, G/W:270KG
Range of application

This type machine, which is mainly used in aerospace, shipbuilding, metallurgy, pressure vessels, petrochemical and welding manufacturing fields, can process low carbon steel, stainless steel, aluminium alloy etc.

Features:

  • High quality transmission reducer with efficiency and stability.
  • Shock absorption to move with fast bevelling.
  • Process with electric and easy adjustable for even un-professional worker to reduce labour cost.
  • Low noise while processing by imported motor.
  • Processing material could be : Stainless stell,carbon steel,AL Alloy ,Clad Plate .etg
  • Feeding used efficient gear system.
  • Electrical wiring comply with CE standard and safty systerm.
  • Special parts used high wear-resisting and hardness material
  • Favourite price for a high quality tool.
  • Accessories & parts and tools will be offered in a tool box with manual .

Order Guide:

Before you place order to us, please let us know the following information:

  • Choose the right Model

  • Confirm your electric power supply ( Voltage, frequency and phase)

  • Confirm the beveling angel required

  • Confirm the welding joint required (U, V, Double V or Compound preparation)

  • Advise your Plate material ( Carbon steel, stainless steel or others)

  • Other special demands about machine

  • The spare parts needed
