Special Of Power Plant Pipe Bevel Cutter Groove Machine Auto Feed Low Noise
Special Of Power Plant Pipe Bevel Cutter Groove Machine Auto Feed Low Noise
Specifications
Brand Name :
Wellnit
Model Number :
ISO
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
$960
Payment Terms :
T/T
Supply Ability :
60 Sets per month
Delivery Time :
within 2days after received 100% payment
Packaging Details :
plywood
Working Range (O.D) :
28-114mm
Power Supply :
1300W
Wall thickness :
less than 20mm
Driven :
Metabo
Description

Metabo Motor Special of Power Plant Pipe beveller groove machine automatic feed

The main of performance

This series of products is specially designed for metal pipe(thin wall pipe).It is outside mounted and it has a small working radius, which is suitable for a narrow working situation.This type products main applied in the field of power plant pipeline installation.The machine is automaic feed operated (install the machine on the open end of pipe). The operation is simple and the processing speed is fastly. The grooved surface after processing is smoothly. Suitable for heat exchangers, pipes, boilers, etc.

The function of Product

1. Compact structure,lightweight,easy to carry out.
2. Easy to operation ,self-centering.Automatic feed
3. Bevel surface smoothly,Meet welding requirements.
4. Cold beveling,won’t influence the material of pipe,no spark.
5. Bevel angle can be customization.
6. Process carbon steel,stainless steel,alloy etc with U,V,J compound bevel.

Special Of Power Plant Pipe Bevel Cutter Groove Machine Auto Feed Low Noise

The specification of product

Model Working Range(O.D) Wall Thickness Accessory Block Body Material
ISO-63C 28-63mm <=12mm 28,32,38,42,45,51,54,57,60,63 Steel
ISO-76C 42-76mm <=12mm 42,45,51,54,57,60,63,68,76 Steel
ISO-89C 63-89mm <=12mm 63,68,76,83,89 Steel
ISO-114C 76-114mm <=12mm 76,83,89,95,102,108,114 Aluminum Alloy
Note:Non-Standard Machines are available according to customer's requirement.

ISO Type Machine with Metabo Motor.

Different Model that Working Range is different.

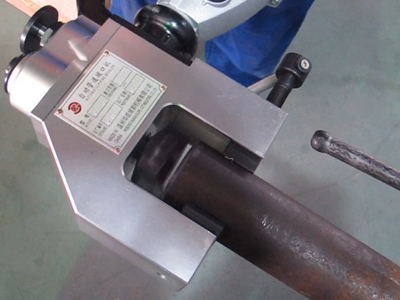

The Opeation general steps as follows:

1.Measure pipe size(O.D),choose suitable expand block and install.

2.put machine in the pipe,fixed the machine

3.install the tools

4.start to process

Special Of Power Plant Pipe Bevel Cutter Groove Machine Auto Feed Low Noise

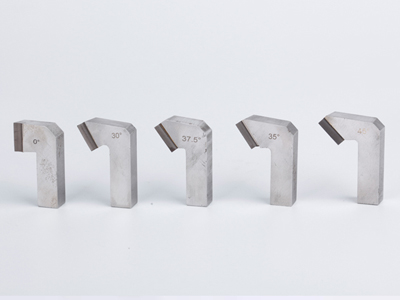

In the picture , the degree of bevel tool hav 0 , 30 , 35 , 37.5 , 45 degree.

We are manufacturers, we have professional engineers,

you provide processing requirements and drawings,

we will customize products for you to meet your needs.

We also can video with you,let our engineers teach you how to use machine.

Before place order ,please provide more details about your pipe,

We will recommend suitable machine to you.

1.PIPE SIZE (O.D):

2.PIPE THICKNESS:

3.PIPE MATERIAL:

4.DRIVEN:

Please check our website. www.zjwellnit.com

Please feel free contact us if you are interested in any product.
