Duplex Stainless Steel Pipe Cutting And Beveling Machine Clamshell Type Pipe Cutter
Duplex Stainless Steel Pipe Cutting And Beveling Machine Clamshell Type Pipe Cutter
Duplex Stainless Steel Pipe Cutting And Beveling Machine Clamshell Type Pipe Cutter
Duplex Stainless Steel Pipe Cutting And Beveling Machine Clamshell Type Pipe Cutter
Duplex Stainless Steel Pipe Cutting And Beveling Machine Clamshell Type Pipe Cutter
Duplex Stainless Steel Pipe Cutting And Beveling Machine Clamshell Type Pipe Cutter
Duplex Stainless Steel Pipe Cutting And Beveling Machine Clamshell Type Pipe Cutter
Duplex Stainless Steel Pipe Cutting And Beveling Machine Clamshell Type Pipe Cutter
Duplex Stainless Steel Pipe Cutting And Beveling Machine Clamshell Type Pipe Cutter
Duplex Stainless Steel Pipe Cutting And Beveling Machine Clamshell Type Pipe Cutter
Specifications
Brand Name :
Wellnit
Model Number :
OCP
Certification :
ISO9001
Place of Origin :
China
Description

Duplex stainless steel pipe cutting and beveling machine clamshell type pipe cutter

Product Description

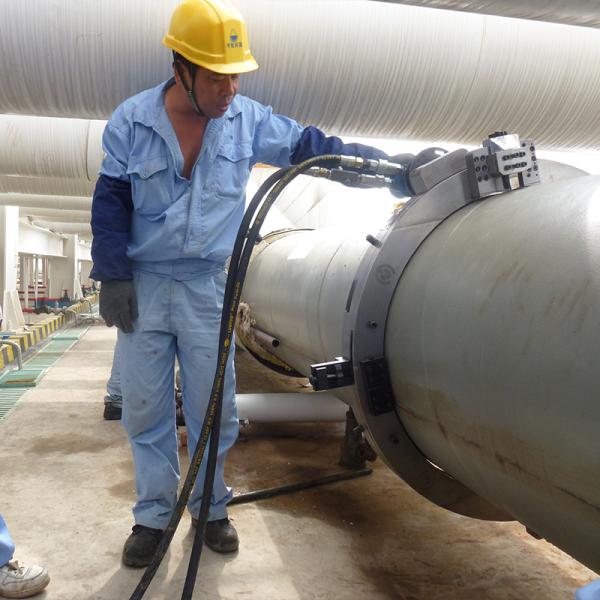

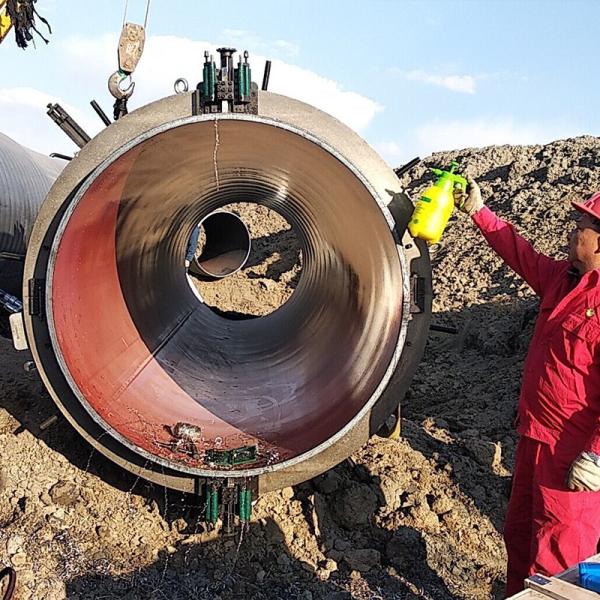

This machine is ideal for all types of pipe cutting, beveling, chamfering and end facing work. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut and bevel, single point and flange facing operations, as well as weld end preparation on open ended pipe. It can be used on pipe size from 1” to 56" of most wall thicknesses and materials.
This machine has variety of power driven ways. They are the electric driven, pneumatic driven, hydraulic driven, Metabo motor driven, servo motor driven. Users can make their own choice according to the actual needs.
This series of external mounted electric pipe cutting and beveling machine is easy to install and convenient to use. It has
features of simple maintenance, small installation space, and quick installation. It's widely used in long distance pipeline,
power plants, nuclear power, petroleum, chemical, natural gas, boiler plant, pharmacy, pipeline as well as the pipeline
installation and repair work sites.

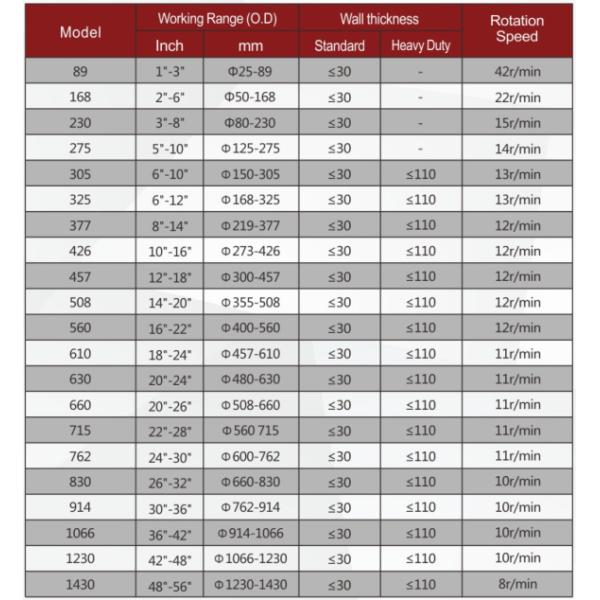

Machine Specification:
Duplex Stainless Steel Pipe Cutting And Beveling Machine Clamshell Type Pipe Cutter
Features:
1. Low axial & radial clearance.
2. Small working radius, suitable for any working situation.
3. Cutting and beveling at the same time.
4. Can be opened to use on pipe in the wall or no end open pipe.
5. Cold cutting work methods, which don't damage the pipe.
6. Multiple bevel joint types: V, U, J, compound and counter boring etc.
7. Customize the machine according to your requirements.
