ID 40mm Pipe Cutting And Beveling Machine Internal Expansion 30r/Min
ID 40mm Pipe Cutting And Beveling Machine Internal Expansion 30r/Min
ID 40mm Pipe Cutting And Beveling Machine Internal Expansion 30r/Min
ID 40mm Pipe Cutting And Beveling Machine Internal Expansion 30r/Min
Specifications
Brand Name :
Wellnit
Model Number :
ISE-159
Certification :
ISO9001
Place of Origin :
China
MOQ :
1sets
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50sets/mounth
Delivery Time :
with 7 days
Packaging Details :
Plywood Box
Capacity ID :
40mm-120mm
Wall Thickness :
less than 15mm
Rotation Speed :
30r/min
motor power :
2kw
Warranty :
1 year
Description

Hand-held beveling machine, easy to carry, specially for beveling.

Products Features

  • This series is ID-mounted pipe beveling machine with light weight,compact design .
  • There are 14 art kinds for option.
  • Easy and quickly set-up self centered and squared to the bore.
  • The tool not only can process carbon steel ,stainless steel and alloy pipe with U,V welding seam but also can process convex flange welded.
  • Fast precision ,on-site beveling,the bevel angle by your required.
  • This series available for electric and pneumatic driven

technical parameter

Model Spec Machining inner diameter Wall thickness Rotation Speed

Electric

ISE

Pneumatic

ISP

Metabo

ISM

 30 φ18-28 ≤15mm 50r/min
80 φ28-76 ≤15mm 55r/min
120 φ40-120 ≤15mm 30r/min
159 φ65-159 ≤20mm 35r/min
252-1 φ80-240 ≤20mm 16r/min
352-1 φ150-330 ≤20mm 14r/min
426-1 φ250-426 ≤20mm 12r/min
630-1 φ300-600 ≤20mm 10r/min
850-1 φ600-820 ≤20mm 9r/min
ISE-252T φ65-245 ≤20mm 16r/min
ISH-325 φ80-305 ≤20mm 16r/min

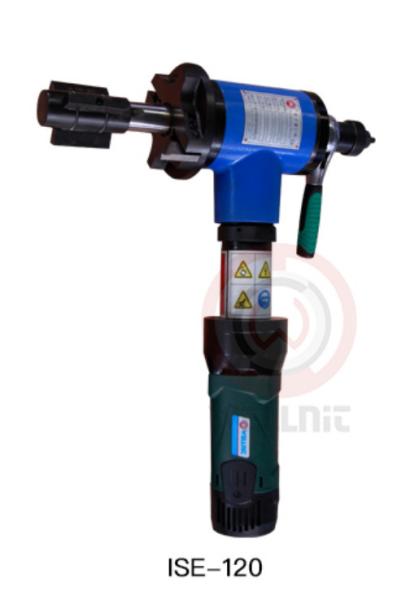

Machine Specification:

Model ISE-120
Voltage 220V
Frequency 50/60 Hz
Motor Brand Electric Motor
Power 1500W
Working Range(I.D) 40-120mm
Wall Thickness

Greater than 2mm

Less than 15mm
Rotation Speed 30r/min
Driven Electric

Machine Packing List ISE-120

Name Model Unit Qty
Machine ISE-120 Set 1
Expansion block NO.1-8 Set 8
Facing Tool 0° Pcs 1
Outside Beveling Tool 30° Pcs 1
Outside Beveling Tool 37.5° Pcs 1
Allen wrench / Pcs 1
Hex wrench / Pcs 1
Instruction manual 　 Pcs 1

Machine Feature:

  • Cold Beveling ,won’t influence the material of pipe.
  • Inside Mounted , Small working radius.
  • Compact design , Light weight , Easy to carry.
  • Easy and quickly set-up self centered and squared to the bore.
  • Bevel Type: “V” ;“U” ; “J” ; compound bevel etc.
  • The tool not only can process carbon steel,stainless steel and alloy etc.
  • Fast precision , on-site beveling , the bevel angle by your required.

Bevel Type:

ID 40mm Pipe Cutting And Beveling Machine Internal Expansion 30r/Min

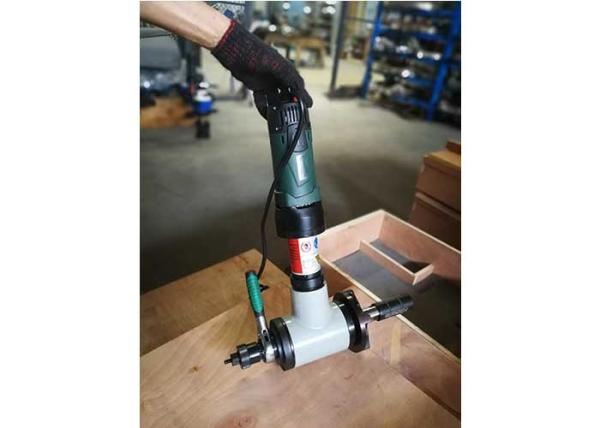

products show

ID 40mm Pipe Cutting And Beveling Machine Internal Expansion 30r/Min

ID 40mm Pipe Cutting And Beveling Machine Internal Expansion 30r/Min
