Automatic Walking Milling Steel Plate Beveling Machine With Double Cutter Head
Automatic Walking Milling Steel Plate Beveling Machine With Double Cutter Head
Automatic Walking Milling Steel Plate Beveling Machine With Double Cutter Head
Automatic Walking Milling Steel Plate Beveling Machine With Double Cutter Head
Specifications
Brand Name :
Wellnit
Model Number :
PB-100B
Certification :
ISO9001
Place of Origin :
china
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 sets a month
Delivery Time :
within 7 days after received 100% payment
Packaging Details :
plywooden
Total power :
6520W
Bevel angle :
0-90
Clamping plate thickness :
6-100mm
Clamping board width :
＞100mm
Clamping plate length :
＞300mm
Height of worktable :
820-860mm
Weight :
430kg
Description

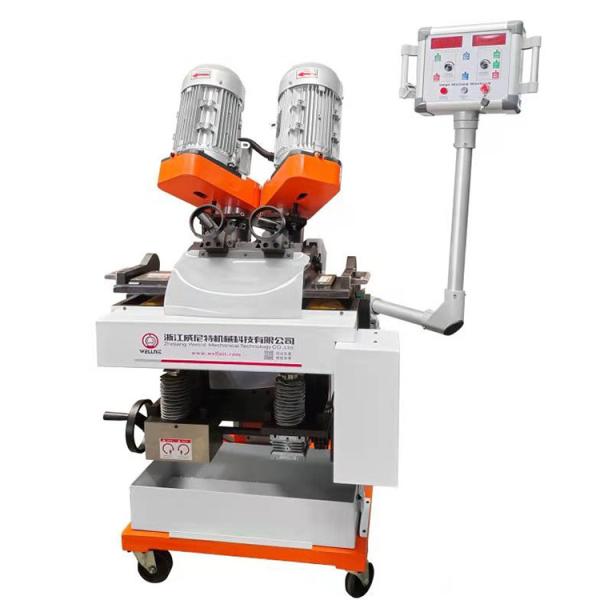

PB-100B Double cutter head automatic walking milling machine

Main Features

The pb-100b milling machine adopts double cutter heads, which cuts more lightly and saves time and effort. Double frequency conversion speed regulation, both spindle and feed speed are adjustable, with high precision. Bevel form: V, Y, K, X, etc., bevel angle can be adjusted from 0 to 90 degrees, easy to operate.

PB-100B technical parameter

Power supply voltage AC 380V 50Hz
Total power 6520W
Spindle speed 750-1440r/min
Feed speed 0-1500r/min
Bevel width 0-80mm
Single bevel width 0-20mm
Bevel angle 0°to 90°
Clamping plate thickness 6-100mm
Clamping board width >100mm
Clamping plate length >300mm
Working heightWorking height 820-860mm
weight 430kg
Processing material

Carbon steel, stainless steel, aluminum alloy,

copper, composite board

Products Show

Automatic Walking Milling Steel Plate Beveling Machine With Double Cutter Head

Automatic Walking Milling Steel Plate Beveling Machine With Double Cutter Head

Automatic Walking Milling Steel Plate Beveling Machine With Double Cutter Head

Automatic Walking Milling Steel Plate Beveling Machine With Double Cutter Head

Automatic Walking Milling Steel Plate Beveling Machine With Double Cutter Head

Product components

Automatic Walking Milling Steel Plate Beveling Machine With Double Cutter Head

Double cutter head, more brisk

Automatic Walking Milling Steel Plate Beveling Machine With Double Cutter Head

High-quality knives, excellent quality, strong and durable

Automatic Walking Milling Steel Plate Beveling Machine With Double Cutter Head

Precisely control the feed speed, easy to operate

Engineering case

Automatic Walking Milling Steel Plate Beveling Machine With Double Cutter Head

Automatic Walking Milling Steel Plate Beveling Machine With Double Cutter Head

Automatic Walking Milling Steel Plate Beveling Machine With Double Cutter Head

Scope of application

Automatic Walking Milling Steel Plate Beveling Machine With Double Cutter Head

Corporate style

Automatic Walking Milling Steel Plate Beveling Machine With Double Cutter Head

1.How to choose a suitable model?

RE: Before choose the model,we need to know more details about the pipe,such as the
I.D,O.D,wall thickness,the material of the pipe and the enviroment of the site and the requirement of the end face. Then it will be more convient for all of us to make an immediately decision .Thanks!

2.Do you have another choice about the driven?

RE: Of course,we have widely variety of choices for you, such as the electric,pneumatic,

hydraulic and NC.

3. About the type of the beveling?

RE: The normally type is the v and U,if you have any special requirement, please let us know it, i believe that our engineer can provide a solution for you.
