High Efficiency Plate Beveling Machine 1.1KW 2870r/Min
High Efficiency Plate Beveling Machine 1.1KW 2870r/Min
Specifications
Brand Name :
Wellnit
Model Number :
PBM-15
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
35 sets a month
Delivery Time :
within 7 days after received 100% payment
Packaging Details :
plywooden
Maximum milling width :
1-15mm（adjustable）
Milling Angle :
30°- 60°（adjustable）
Voltage :
380V(220v,1PH)
Frequency :
50Hz
Power :
1.1KW
Speed :
2870r/min
Description

High Efficiency Plate Beveling Machine PBM-15

Production Introdution

PBM-15 groove machine is specially designed for plate groove and chamfer,and it is a hand-propelled groove processing tool.

It is suitable for chamfering metal plate and groove processing before welding.

Light weight(compared with similar products),small vibration,easy to operate,safe and reliable.

Main Features


1. Cold Processed, No spark, Will not affect the material of plate.
2. Compact Structure, Light weight, Easy to carry
3. Voltage can be choose (220V / 380V)
4. Smooth slope, Surface finish can be as high as Ra3.2- Ra6.3.
5. Bevel angle and bevel depth can be adjustable, High Precision
6. Small working radius, Suitable for any working space,

fast beveling and deburring,High efficiency.
7. Equipped with CNC blades, low consumables.
8. Bevel type: V, Y, X,K etc.

Product show

High Efficiency Plate Beveling Machine 1.1KW 2870r/Min


Specification


Voltage

AC 1PH 220V 50HZ

AC 3PH 380V 50HZ
Frequency 50Hz
Total P ower 1100W
Clamp Thickness No Limited
Bevel Angle 30°- 60°
Rotation Speed 2870r/min
Bevel Width 1-15mm
Tool Bit Qty 12Pcs
Net Weight 18kgs
Gross Weight 28kgs
Process Material CS,SS,Aluminum Alloy Bronze etc

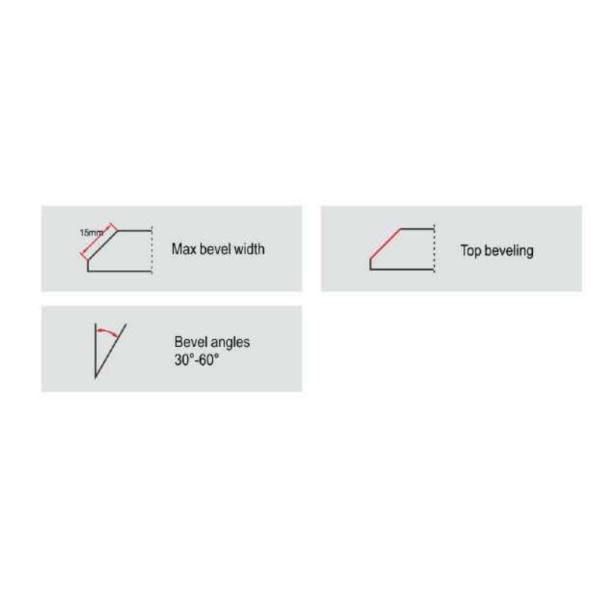

Bevel Type

High Efficiency Plate Beveling Machine 1.1KW 2870r/Min

High Efficiency Plate Beveling Machine 1.1KW 2870r/Min

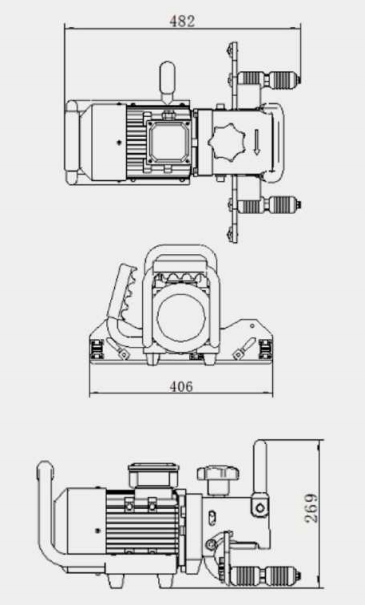

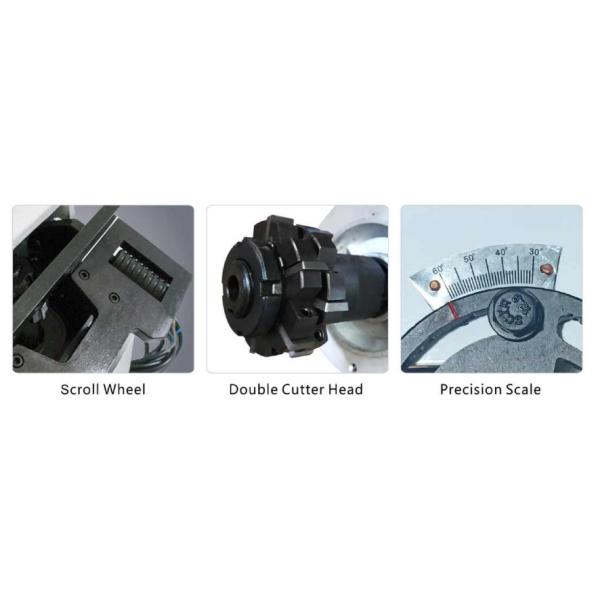

Machine Details

High Efficiency Plate Beveling Machine 1.1KW 2870r/Min
