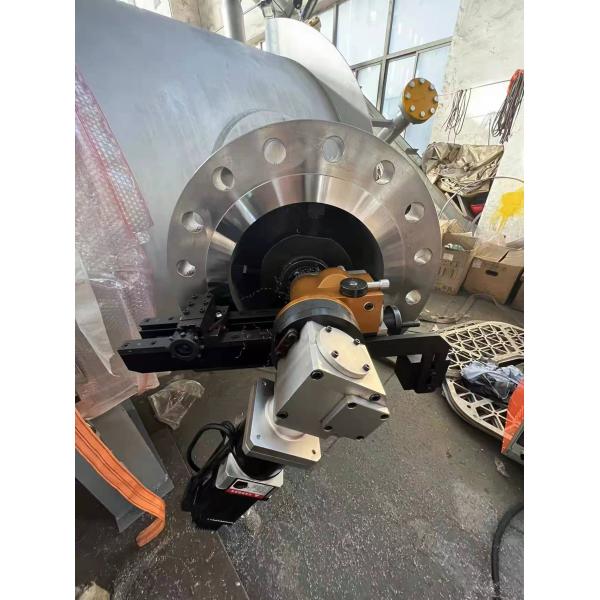

Inside Mounted Pneumatic RTJ Flange Facing Machine 33r/Min
Inside Mounted Pneumatic RTJ Flange Facing Machine 33r/Min
Inside Mounted Pneumatic RTJ Flange Facing Machine 33r/Min
Inside Mounted Pneumatic RTJ Flange Facing Machine 33r/Min
Specifications
Brand Name :
Wellnit
Model Number :
WFS-610
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T,
Supply Ability :
1 sets / week
Delivery Time :
within 7days
Packaging Details :
Aluminum Alloy Box + Plywood box
Facing Range :
50-610mm
machine driven :
Pneumatic / servo motor
function :
facing , seal groove , RTJ etc
mounted way :
inside mounted
Mounting Range :
50-508mm
Description

Valve Flange Portable Miller water line process flange facer

machine introduce

The flange end face processing machine is a portable milling machine type machine with high efficiency and fast speed. It can process flange surfaces, water lines, sealing groove processing, sealing surface processing, etc. The machine is installed internally, with a small working radius, suitable for any narrow space. The installation direction of the machine is not fixed, it can be horizontal, vertical, upside down, etc. The drive mode can also be selected, with pneumatic and servo motor drive. Pneumatics need an air compressor to provide air source.

Inside Mounted Pneumatic RTJ Flange Facing Machine 33r/Min

Machine operation:


1. Install the expansion plate according to the size of the inner hole
2. Install the counterweight, and use a level for precise installation
3. Install the tool and use a dial indicator to calibrate the tool
4. Choose automatic feed or manual feed

Machine specification

Model Facing Range (O.D) Mounting Range (I.D) Tool Feed Stroke Tool holder swivel angle Rotation Speed
WFS-610 50-610mm 50-508mm 50mm +-30° 0-42r/min
WFS-1000 160-1000mm 158-820mm 102mm +-30° 0-33r/min
WFS-1650 500-1650mm 500-1500mm 102mm +-30° 0-22r/min
WFS-2000 690-2200mm 690-2000mm 102mm +-360° 0-20r/min
WFS-3000 1150-3000mm 1120-2800mm 102mm +-360° 3-12r/min
