Hydraulic Fuel tube and pipe Orbital Welding Machine With Handy Closed Welding Head OD12-76mm
Hydraulic Fuel tube and pipe Orbital Welding Machine With Handy Closed Welding Head OD12-76mm
Specifications
Brand Name :
Hyzont
Model Number :
MWF-40/80/120
Certification :
CCC/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets a Month
Delivery Time :
5-7 days
Packaging Details :
Flight case
Name :
Automatic Fusion TIG Orbital Welding Machine
Brand :
Hyzont
Model :
MWF-40/80/120
Weld Type :
Auto GTAW
Applications :

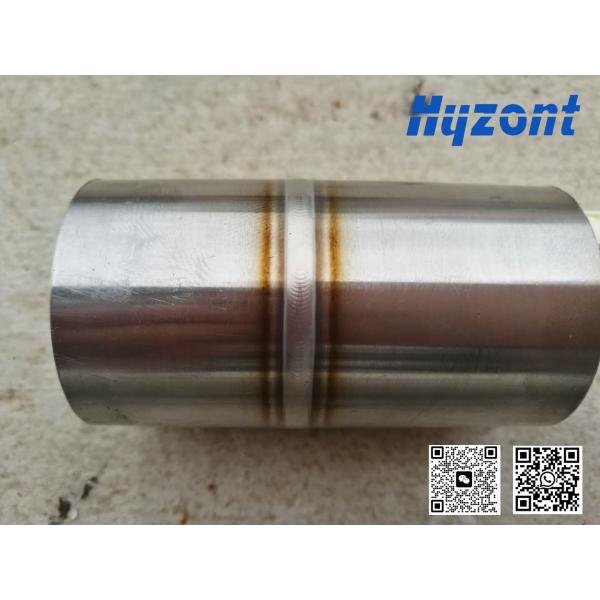

Carbon Steel or Stainless Steel Tube butt welding
Weld Tube OD :
12-76mm
Weld Tube Thickness :
1-3mm
Cable Length :
6m or Customized
Net Weight :
2-6Kg
Warranty :
12months
Description

Hydraulic Fuel tube and pipe Orbital Welding Machine With Handy Closed Welding Head OD12-76mm

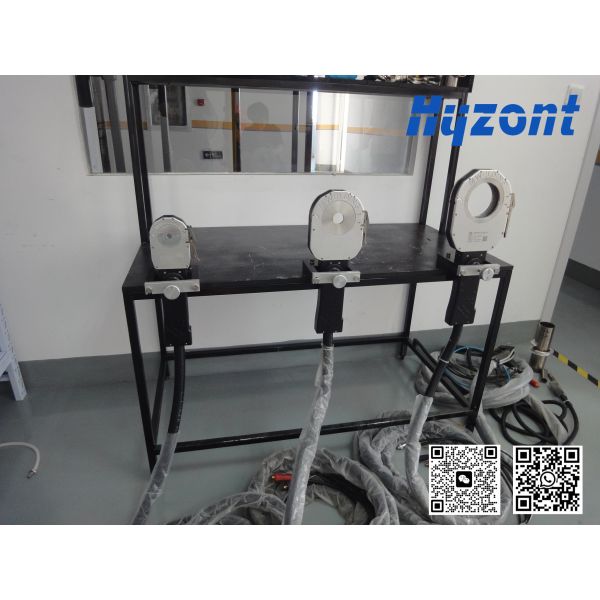

Features and advantage of Closed Weld Heads

  • Features and advantage of Closed Weld Heads
  • All Key Parts are imported insulation and heat-resisting materials
  • Compact and handy closed Welding Head which made by aluminums alloy,light and durable
  • Germany Original Rotator Motor, Welding process stable and reliable
  • Adjustable parameter during welding process for some special welding requirements
  • Built-in various welding head parameters for accurate motion control
  • Water circuit cooling design for long time working
  • Unique design of inner orientation gas circuit
  • Quick-install Clamps, easy to use

Hydraulic Fuel tube and pipe Orbital Welding Machine With Handy Closed Welding Head OD12-76mm

Model MWF-40 MWF-80 MWF-120
Material Carbon steel, Stainless Steel, Titanium Alloy
Tube Fitting Straight tube, Pipe flange, Elbow butt joint;
Welding Process TIG/GTAW (no wire feeding)
Tube OD(mm/inch)

6~38.1mm

1/4"~1 1/2"

19.05~76.2mm

3/4"~3"

38.1~114.3mm

1 1/2"~4 1/2"
Tube Wall Thickness(mm) ≤3mm ≤3mm ≤3mm
Tungsten OD(mm) 1.6 1.6-2.4 1.6-2.4
Rotating 360 degree free rotated and Auto reset ;all position welding;
Rotation speed(rpm) 0.3~6 0.2~4.5 0.15~1.9
Protective Gas Argon Argon Argon
Cooling Water Water Water
Cooling Flow(ml/min) 1000ml/min 1000ml/min 1000ml/min
Cable Length 6m 6m 6m
Main Dimension(mm)
Weight(kg) 2kg 3kg 6kg
Dimension(mm) 377*38*100 436*38*175 497*230*57

Hydraulic Fuel tube and pipe Orbital Welding Machine With Handy Closed Welding Head OD12-76mm
