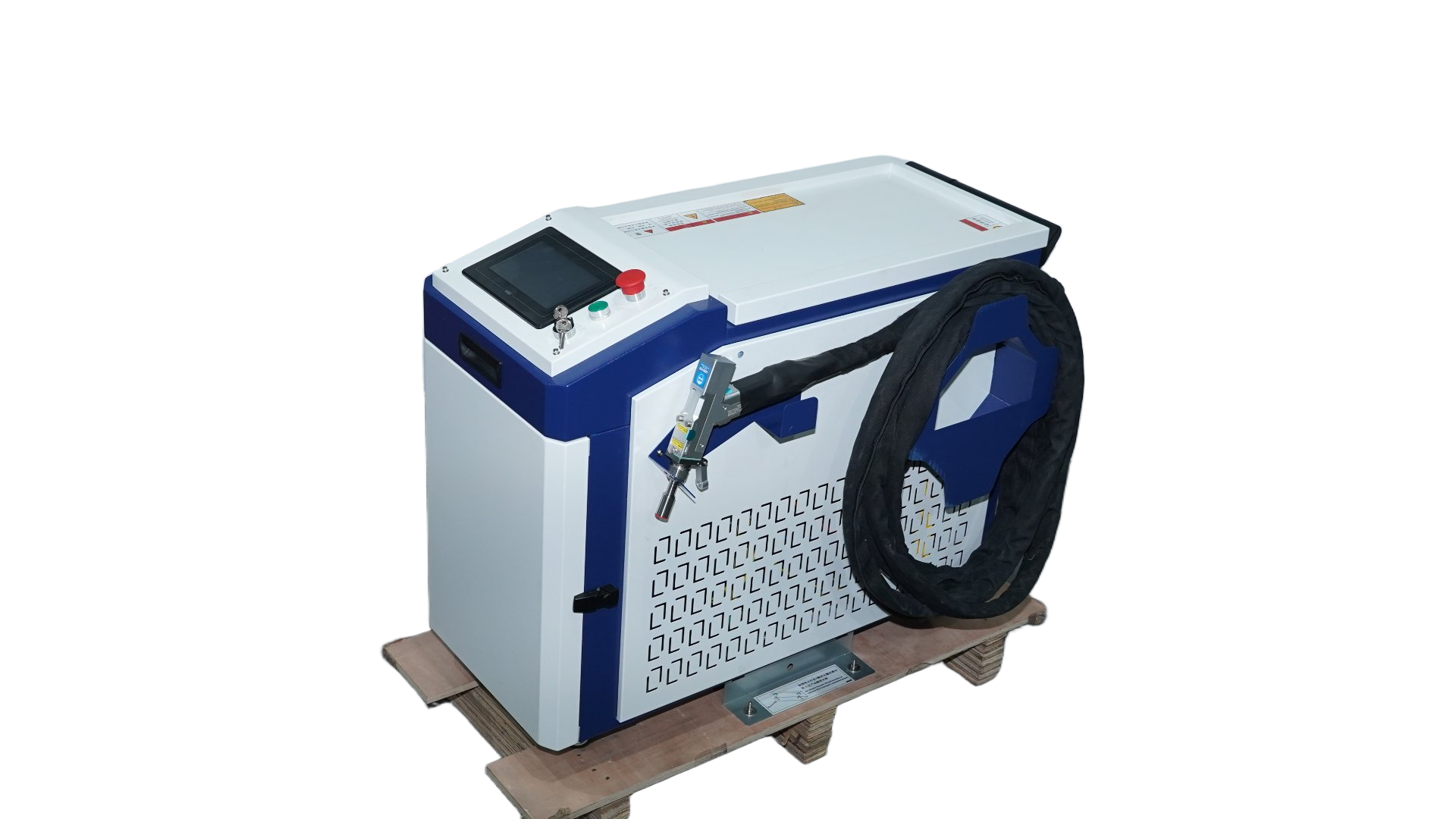

HandHeld Fiber Laser Welding Machine 1000w-3000w With Auto Wire Feeder
HandHeld Fiber Laser Welding Machine 1000w-3000w With Auto Wire Feeder
Specifications
Brand Name :
HYZONT
Model Number :
FLW-1000
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100
Delivery Time :
5-10 DAYS
Packaging Details :
WOODEN CASE
Usage :
Welding
Voltage :
220V
After-sales service provided :
Engineers available to service machinery overseas
Warranty :
1 Year
Color :
Red
Rated duty cycle :
60%
Description
HAND-HELD FIBER LASER WELDING MACHINE 1000W-3000W WITH AUTO WIRE FEEDER
HYZONT Fiber Laser welding can be used in welding stainless steel, aluminum, copper, gold, silver, chromium, nickel, titanium and other metals or alloys, can also be used for a variety of welding between different materials, such as: copper – brass, titanium –gold, Titanium – molybdenum, nickel – copper and so on. Welding range: 0.5~8mm carbon steel,0.5~4mm stainless steel, aluminium alloy 0.5~6mm, brass 0.5~4mm.

Main Feature

1. The system is mainly composed of a laser unit and a welding unit.
2. Hand-held welding, taking into account the flexibility, high efficiency and high weld quality of laser welding.
3. Modular design and layout of the overall equipment, beautiful and easy to maintain and debug.
4. High system flexibility, compatible with a variety of models, and short changeover time.
5. The internal design is dexterous, and the good interactive control system expands the tolerance range of the machined parts and the weld width, solves the disadvantage of small spot size, and welds are better formed.
6. The shape is light, the body engineering design method is adopted, and the grip is comfortable; the hand is easy to control, and the operation is simple and easy to use.
7. With multiple safety alarms, the light is automatically locked after the workpiece is removed, and the safety is high.
8. Beautiful weld seam, fast speed, no consumables, no weld marks, no discoloration, no need for post-grinding.
9. Can be equipped with a variety of angle nozzles to meet the welding needs of different products.
HandHeld Fiber Laser Welding Machine 1000w-3000w With Auto Wire Feeder
SPECIFICATION

Model

Handheld laser welding machine FLW-1000

Laser device

1000W/ 1500W / 2000W/3000W

Laser wave length

1080nm

Welding speed range

0-120mm/s

Welding gap

≤1/5 of the thickness of sheet metal

Fiber length

Standard 15m

Water cooling

Special for handheld welding

Electromechanical

380V/50HZ or 220V optional

Consumable

Nitrogen welding, output pressure 0.2Mpa

Total power

6KW

Dimensions

1300X650X1100mm

Total weight

150KG

HandHeld Fiber Laser Welding Machine 1000w-3000w With Auto Wire Feeder

HandHeld Fiber Laser Welding Machine 1000w-3000w With Auto Wire Feeder

HandHeld Fiber Laser Welding Machine 1000w-3000w With Auto Wire Feeder

HandHeld Fiber Laser Welding Machine 1000w-3000w With Auto Wire Feeder

HandHeld Fiber Laser Welding Machine 1000w-3000w With Auto Wire Feeder

HandHeld Fiber Laser Welding Machine 1000w-3000w With Auto Wire Feeder
