Programming CNC Plasma Cutting Table For Shipping Building
Programming CNC Plasma Cutting Table For Shipping Building
Specifications
Brand Name :
Hyzont
Model Number :
CNCSG-4000
Certification :
CE
Place of Origin :
China
MOQ :
1 sets
Price :
USD 500- USD 2000
Payment Terms :
T/T, L/C
Supply Ability :
1000Sets /month
Delivery Time :
5-8Days
Packaging Details :
Wooden case
name :
220V Plasma Cnc Machine
model :
CNCSG-4000
speed :
10000 Mm/Min
brand :
Hyzont
Description
Products Description
Gantry Type Series CNCSG is heavy duty, precision machine, specially designed for cutting large steel plate, can be equipped with multiple plasma torches and flame torches. It is very efficient, with excellent cutting quality.
Optional items:
  • Powder marking device
  • Straight line stripe cutting torch
  • Straight line triple beveling torch
  • Rotary triple flame curve beveling torch
  • Rotary plasma curve beveling torch
  • Blow and draft dust and fume collection system
  • Water surface and underwater cutting table
Machine Features
  • Gantry and box type welded structure, annealed, long service life, steady and durable under heavy load and high duty cycl condition.
  • Gapless gearing transmit, stable and smooth running in high speed, so that we can achieve excellent cutting quality.
  • Integrated auto-ignition with automatic height controller, keep the proper height between cutting torch and work piece, so
  • that we can achieve the best cutting quality.
  • Able to cut work piece with several torches at the same time, can improve cutting efficiency
  • Low use and maintenance cost, dispensing special maintenance, friendly operator interface, easy to learn
  • Reliable, safe cnc system, automatic programming, optimization nesting and piercing path, so that we can save steel effectively
Technical Specification
Effective Cutting Width (mm): 3000 to 8000 (customized)
Effective Cutting Length (mm): 6000 to 30000(customized)
Flame Cutting Thickness(mm) 5-120mm(Max 300mm)
Plasma Cutting Thickness(mm) 1-80mm(according to plasma model)
Cutting Mode Plasma and Oxy-Fuel/Flame
Drive Mode AC Servo motor, Dual-drive
Cutting Torch Number Customization
Driving Motor Panasonic/Yaskawa
CNC Controller EDGE CONNECT TC; EDGE CONNECT; LKNC-3200
Available Plasma Power , Kjellberg, Victor, ESAB
Programming Software Fastcam, SmartNest,
Input Power Voltage 3×380V±10% 50HZ/according to user's local condition
Operation Language Multilanguage

Main Application: CNC Plasma and oxyfuel cutting machines are widely used for the industry of metal fabrication, shipping building, automation, Aerospace Military, Heavy Equipment, Pressure Vessels, Rail Transportation, Bridge Construction, Hardware Machinery, Energy Industry Etc.

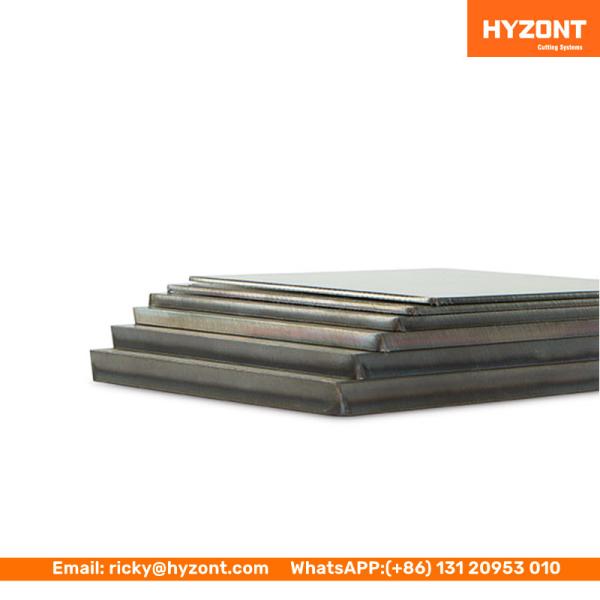

Cutting Sample

Programming CNC Plasma Cutting Table For Shipping Building

Provide the information for the Quotation
Please kindly advise us of the following information:
1. The main usage of the workpiece, it is better to send us the cutting drawings or your product pictures.
2. The effective cutting size?
3. The cutting material: Carbon steel, stainless steel, aluminum, and cutting thickness separately?
4. Plasma cutting or oxy fuel cutting, both?
5. Other special requirements?
