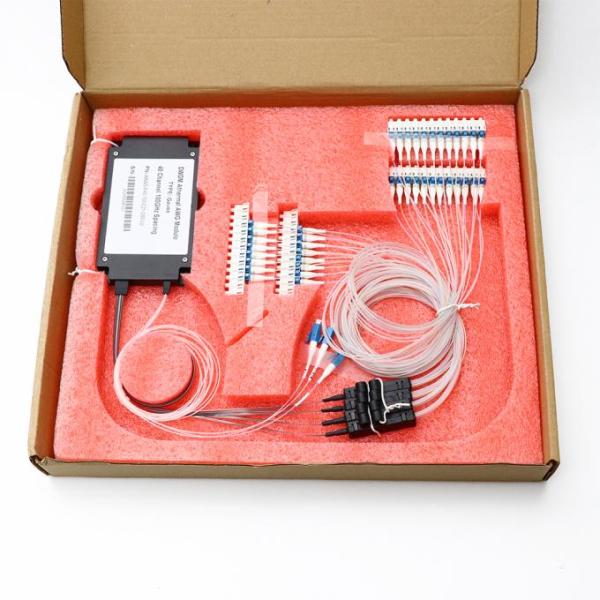

40 CH 100GHz Athermal AAWG DWDM Module Flat Top Gaussian Filter
40 CH 100GHz Athermal AAWG DWDM Module Flat Top Gaussian Filter
Specifications
Brand Name :
GEZHI or OEM
Model Number :
40 Channel AAWG Module
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Type :
AAWG Module
Use :
FTTX, FTTX
Product Name :
Athermal AWG Module
Channel Spacing :
100Ghz
Number Of Channels :
40 CH
Filter Shape :
Flat Top/Gaussian
Operating Temperature :
-5~75
Input/Output Connector :
FC, SC, LC Optional
FC, SC, LC Optional Input/Output Length :
0.5m, 1m Or Customized
Pigtail Diameter :
0.9mm
Fiber Type :
900um Loose Tube
Description

Flat top/Gaussian Filter 40 Channel AAWG Module 40 CH 100GHz Athermal AWG Module

Product Description

Gezhi Photonics rack-mounted 40-channel DWDM multiplexer (Mux) and Demultiplexer (DeMux) chassis provide excellent solution for infrastructure savings by aggregating 40 different wavelengths onto a single fiber. These 1U products are protocol transparent. All 40 channels are in the C-band with spacing of 100 GHz between channels using high quality AWG Gaussian technology.

Applications
Metro networks
Data center
Access Network
CATV applications
WDM Network

Telecommunication

Features
High isolation Low insertion loss Dual power supply Can be management by console and NMS Expoxy-free optical path Low total integrated crosstalk Excellent stability & reliability Excellent wavelength accuracy & stability Athermal design

40 CH 100GHz Athermal AAWG DWDM Module Flat Top Gaussian Filter

40 CH 100GHz Athermal AAWG DWDM Module Flat Top Gaussian Filter

40 CH 100GHz Athermal AAWG DWDM Module Flat Top Gaussian Filter

40 CH 100GHz Athermal AAWG DWDM Module Flat Top Gaussian Filter40 CH 100GHz Athermal AAWG DWDM Module Flat Top Gaussian Filter

Specifications

Parameter
Value
Number of Channels
40
Channel Spacing
100Ghz
Operating Wavelength
C-band
Passband Frequency
±0.1nm
Wavelength Accuracy
±50pm
Insertion Loss
<6.0dB
Consistency of Insertion Loss
<1.2dB
Insertion Loss Flatness
<0.5dB
0.5dB Passband
>0.2nm
1dB Passband
>0.4nm
3dB Passband
>0.6nm
20dB Passband
<1.2nm
Adjacent Channel Isolation
≥25dB
Non-Adjacent Channel Isolation
≥30dB
Total Crosstalk
22 dB
Return Loss
≥40dB
Polarization Dependent Loss
<0.5ps
Polarization Mode Dispersion
<0.5ps
Maximum Load Optical Power
24dBm
Monitoring Range of Optical Power
-35dBm ~ +23dBm
Connector Form
LC/UPC
Operating Temperature
-10~+65℃
Relative Humidity
95%
Dimensions
19-inch 1U rack (440 x 220 x 44mm)
