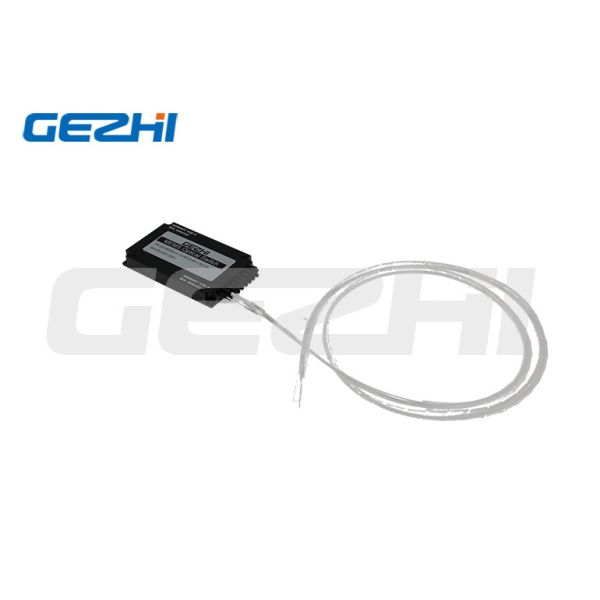

Single Mode And Multimode MEMS 1x8 Module Data Center Fiber Sensing And Monitoring 1x8 Optical Switch
Single Mode And Multimode MEMS 1x8 Module Data Center Fiber Sensing And Monitoring 1x8 Optical Switch
Single Mode And Multimode MEMS 1x8 Module Data Center Fiber Sensing And Monitoring 1x8 Optical Switch
Single Mode And Multimode MEMS 1x8 Module Data Center Fiber Sensing And Monitoring 1x8 Optical Switch
Single Mode And Multimode MEMS 1x8 Module Data Center Fiber Sensing And Monitoring 1x8 Optical Switch
Single Mode And Multimode MEMS 1x8 Module Data Center Fiber Sensing And Monitoring 1x8 Optical Switch
Single Mode And Multimode MEMS 1x8 Module Data Center Fiber Sensing And Monitoring 1x8 Optical Switch
Single Mode And Multimode MEMS 1x8 Module Data Center Fiber Sensing And Monitoring 1x8 Optical Switch
Specifications
Brand Name :
GEZHI or OEM
Model Number :
1x8 MEMS Optical Switch
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Packaging Details :
Paper box
Type :
MEMS Optical Switch Module
Use :
Data Center
Warranty Time :
3 years
Fiber mode :
SM/MM
Application :
Instrumentation
Operating Wavelength :
1260~1650 for SM,850/1310 for MM
Connector Type :
LC/SC/FC/ST or others
Description

Single mode and Multimode MEMS 1x8 Module Data Center Fiber Sensing and Monitoring 1x8 Optical Switch

Product Description MEMS 1x8 Optical Switches

Gezhi Photonics MEMS 1X8 Fiber Optical Switch is a compact, single mode or multimode fiber optical switch configurable for port counts up to 1x64.It utilizes the proprietary microelectromechanical system (MEMS) technology to achieve reliable optical performance and excellent durability; This MEMS optical switch is available in any 1XN size up to 1x64.
Single Mode And Multimode MEMS 1x8 Module Data Center Fiber Sensing And Monitoring 1x8 Optical SwitchSingle Mode And Multimode MEMS 1x8 Module Data Center Fiber Sensing And Monitoring 1x8 Optical Switch
Features of 1x8 MEMS Optical Switches

Applications of 1x8 MEMS Optical Switches

Single mode and Multi-mode

 Optical network protection/restoration

​Base on MEMS technology

 R&D in Laboratory

1XN up to 1x64,Small package

 Network Security and Monitoring

Low insertion loss,Fast switching time

 Optical reconfiguration

High Stability,High Reliability
Secure Communications

Specifications of MEMS 1x8 Optical Switches

Parameter Multi-Mode
Wavelength range (nm) 700~1700
Insertion loss1 (dB) ≤1.6 (Typ 0.5)
Crosstalk (dB) ≥ 45 (Typ 55)
Backreflection (dB) ≥ 35(Typ 45)
Polarisation Dependent Loss (dB) ≤0.20(Typ 0.07)
Switch time (ms) ≤20 (Typ 2)
Switching Voltage ( V ) ≤5
Fiber Pigtail (µm) 62.5/125/900 or 50/125/900
Durability (cycles) no wear out
Power Consumption (mW) Typ :40
Operation temperature(℃) 0~70
Storage temperature (℃) -40~85
Package Size (L x W x H) (mm) 76 x 93 x 9.5
Parameter Single Mode
Wavelength range (nm) 1240~1640
Insertion loss (dB) ≤1.6 (Typ 1.2)
Crosstalk (dB) ≥ 60 (Typ 75)
Backreflection (dB) ≥ 45 (Typ 55)
Polarisation Dependent Loss (dB) ≤0.12
Switch time (ms) ≤1 (Typ 0.5)
Switching Voltage ( V ) ≤5
Fiber Pigtail (µm) 9/125/900
Durability (cycles) no wear out
Power Consumption (mW) Typ:40
Operation temperature(℃) 0~70
Storage temperature (℃) -40~85
Package Size (L x W x H) (mm) 76 x 93 x 9.5

Ordering Information

A B C D E F
Type Wavelength Fiber Length (m) Fibre type Fiber diameter Connector
1x8
Specify Custom		 1=850nm
2=1310nm
3=1490nm
4=1550nm
5=1625nm
6=1310/1550nm
7=850/1310nm
S=Specify Custom		 0.5=0.5m
1.0=1.0m
1.5=1.5m
S=Specify Custom		 9=SMF28,9/125
50=MM 50/125
62=MM 62.5/125
S=Specify Custom		 1=250um bare fibre
2=900um loose tube
3=2.0mm loose tube
S=Specify Custom		 OO=None
FP=FC/PC
FA=FC/APC
SP=SC/PC
SA=SC/APC
SP=ST/PC
SA=ST/APC
LP=LC/PC
LA=LC/APC
X=Others
