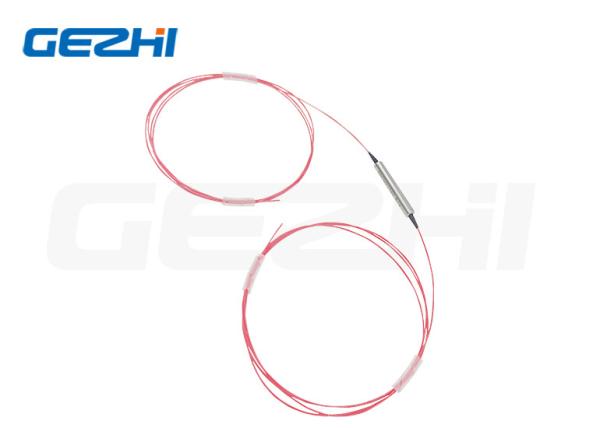

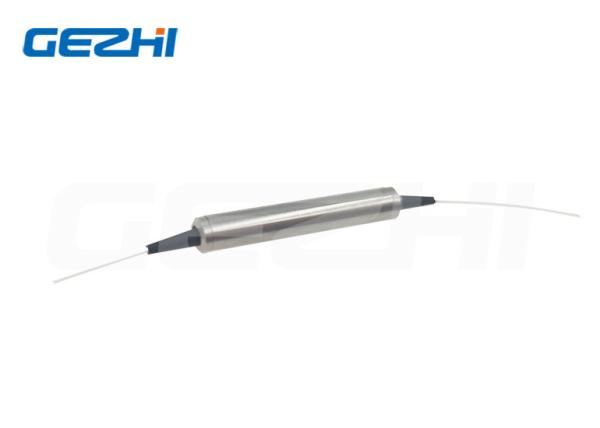

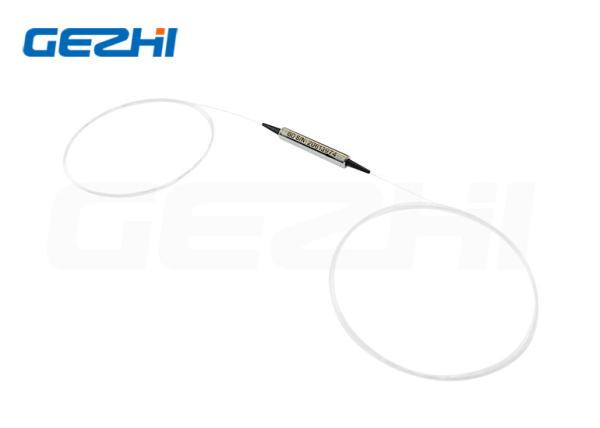

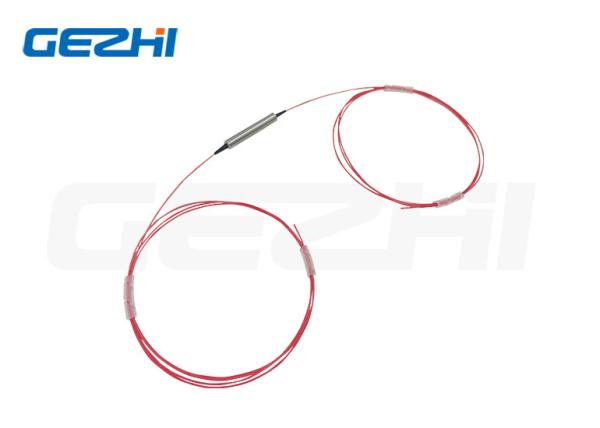

High Reliablity & Stablility 1064nm Mini Size In-line Polarizer for Fiber Sensor
High Reliablity & Stablility 1064nm Mini Size In-line Polarizer for Fiber Sensor
High Reliablity & Stablility 1064nm Mini Size In-line Polarizer for Fiber Sensor
High Reliablity & Stablility 1064nm Mini Size In-line Polarizer for Fiber Sensor
High Reliablity & Stablility 1064nm Mini Size In-line Polarizer for Fiber Sensor
High Reliablity & Stablility 1064nm Mini Size In-line Polarizer for Fiber Sensor
High Reliablity & Stablility 1064nm Mini Size In-line Polarizer for Fiber Sensor
High Reliablity & Stablility 1064nm Mini Size In-line Polarizer for Fiber Sensor
High Reliablity & Stablility 1064nm Mini Size In-line Polarizer for Fiber Sensor
High Reliablity & Stablility 1064nm Mini Size In-line Polarizer for Fiber Sensor
Specifications
Brand Name :
GEZHI or OEM
Model Number :
Mini Size Polarizer
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000Channel per month
Delivery Time :
5-8 work days
Packaging Details :
Paper box
Product Name :
Mini Size In-Line Polarizer
Port :
1x1
Wavelength :
1064nm
Warranty Time :
3 years
Application :
Test Instrument
Description

Product Overview of Mini Size In-Line Polarizer

Low Insertion Loss 915nm High Power In-line Polarizer for Test Instrument

In-Line Polarizer

GEZHI Mini Size 1064nm In-line Polarizer is designed to pass light with one specific polarization while blocking the other polarization. It can be used to convert no-polarized light into polarized light with high extinction ratio. It can also be used to enhance the extinction ratio of signals with its excellent polarization properties. It is ideal for Communication Systems,Test Instrument,Fiber Sensor and Research

Features & Applications of Mini Size In-Line Polarizer

Features

High Extinction Ratio

Low Insertion Loss

High Return Loss

High Power Handling
Low Cost
High Reliability

Applications

Fiber lasers
Fiber Sensor

Fiber Amplifiers
Test and Measurement
Communications System

Specifications of Mini Size In-Line Polarizer

Parameters Unit Value
Center Wavelength nm

1064
Operating Wavelength Range nm

±30
Typ. Insertion Loss at 23℃ dB

0.4
Max. Insertion Loss at 23℃ dB

0.6
Min. Return Loss at 23℃ dB

50
Typ. Extinction Ratio at 23℃ dB

30
Min. Extinction Ratio at 23℃ dB

28
Fiber Type for Input & Output / SM→SM or SM→PM or PM→PM
Max. Optical Power (CW) mW 300
Package Dimension mm φ3.0x30 or φ3.2x30
Max. Tensile Load N 5
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85
With connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
Connector key is aligned to slow axis.

Dimension

High Reliablity & Stablility 1064nm Mini Size In-line Polarizer for Fiber Sensor

Odering Information of Mini Size In-Line Polarizer

MILP-1111-23-444-555-67-8-9A
1111 - Wavelength: 1064=1064nm, SSSS=Specified
2 - Fiber Type Option: 1=SM→SM, 2=SM→PM, 3=PM→PM
3 - Working Axis: F=Fast axis blocked, N=Non-PM
444 - Fiber Type for Input: 003=PM980, 004=Hi1060, SSS=Specified
555 - Fiber Type for Output: 003=PM980, 004=Hi1060, SSS=Specified
6 - Package Dimension: 0=φ3.0x30mm, 1=φ3.2x30mm
7 - Pigtail Type: 0=bare fiber, 1=900μm loose tube
8 - Fiber Length: 0.8=0.8m, 1.0=1m, S=Specified
9 - Connector Type for Input: 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
A - Connector Type for Output: 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified

FAQ

Q1:Can I have a sample order of Mini Size In-Line Polarizer? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales.
representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms of Mini Size In-Line Polarizer?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time Mini Size In-Line Polarizer?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
