1x2 1x4 1x8 1x16 Fiber Polarization Maintaining Coarse WDM Module PM CWDM Module
1x2 1x4 1x8 1x16 Fiber Polarization Maintaining Coarse WDM Module PM CWDM Module
1x2 1x4 1x8 1x16 Fiber Polarization Maintaining Coarse WDM Module PM CWDM Module
1x2 1x4 1x8 1x16 Fiber Polarization Maintaining Coarse WDM Module PM CWDM Module
1x2 1x4 1x8 1x16 Fiber Polarization Maintaining Coarse WDM Module PM CWDM Module
1x2 1x4 1x8 1x16 Fiber Polarization Maintaining Coarse WDM Module PM CWDM Module
1x2 1x4 1x8 1x16 Fiber Polarization Maintaining Coarse WDM Module PM CWDM Module
1x2 1x4 1x8 1x16 Fiber Polarization Maintaining Coarse WDM Module PM CWDM Module
1x2 1x4 1x8 1x16 Fiber Polarization Maintaining Coarse WDM Module PM CWDM Module
1x2 1x4 1x8 1x16 Fiber Polarization Maintaining Coarse WDM Module PM CWDM Module
Specifications
Brand Name :
GEZHI or OEM
Model Number :
PM Coarse WDM
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000Channel per month
Delivery Time :
5-8 work days
Packaging Details :
Paper box
Product Name :
PM CWDM Module
Center Wavelength :
ITU or ITU+1
Channel Number :
1x2 1x4 1x8 1x16
Warranty Time :
3 years
Application :
GPON Networks
Description

Product Overview of PM CWDM Module

1x2 1x4 1x8 1x16 High Channel Isolation Fiber Polarization Maintaining Coarse WDM Module

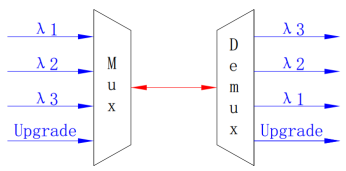

Polarization Maintaining Coarse WDM Module

GEZHI Polarization Maintaining Filter CWDM is characterized with low IL, high return loss, high extinction ratio and excellent environmental stability and reliability. They are ideal for polarization maintaining fiber amplifiers, CWDM network, and high-speed communication system and instrumentation applications.

Features & Applications of PM CWDM Module

Features

Low Insertion Loss
High Return Loss & Channel Isolation
Good Channel to Channel Uniformity
High Reliability & Stability

Applications

DWDM System
GPON Networks
CATV Links

Specifications of PM CWDM Module

Parameters Unit Values
Channel Number - 1x2 1x4 1x8 1x16
Center Wavelength nm ITU or ITU+1
Channel Space Ghz 1260~1460 or 1460~1620 or 1260~1620
Channel Space nm 20
Min. Channel Bandwidth @λc nm ± 6.5
Max. Channel Flatness dB 0.4
Max. Insertion Loss Mux to Demux (Link) dB 1.4 2.2 3.4 7.1
Min. Isolation Adjacent channel dB 30 30 30 30
Non-adjacent channel dB 40 40 40 40
Upgrade Channel dB 12 12 12 12
Min. Return Loss dB 50
Min. Extinction Ratio at 23℃ dB 20 20 18 16
Max. Wavelength Thermal Stability nm/℃ 0.003
Max. Insertion Loss Thermal Stability dB/℃ 0.005
Max. Power Handling (CW) mW 500
Operating Temperature ℃ 0~+70
Storage Temperature ℃ -40~+85
With connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
Connector key is aligned to slow axis.

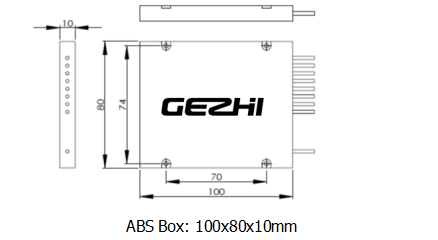

Dimension

1x2 1x4 1x8 1x16 Fiber Polarization Maintaining Coarse WDM Module PM CWDM Module1x2 1x4 1x8 1x16 Fiber Polarization Maintaining Coarse WDM Module PM CWDM Module

Odering Information of PM CWDM Module

PMCWM-12-33-444-5-666-78-9-A

1 - Module Type:

:

 M=Mux, D=Demux
2 - Operating Wavelength: F=Full wave(1260nm~1620nm), H=half wave(1260~1460 or 1460~1620)
33 - Start Wavelength: 27=1270nm or 1271nm,..., 55=1550 or 1551nm,..., 61=1610nm or 1611nm
444 - Port type: 104=1x4, 108=1x8, 116=1x16, SSS=Specified
5 - Working Axis: B=Both Axis Working, F=Fast axis blocked
666 - Fiber Type: 001=PM1550, 002=PM1310, SSS=Specified
7 - Package Dimension: 0=100x80x10mm, 1=120x80x18mm, 2=140x140x10mm, S=Specified
8 - Fiber Length: 0=bare fiber, 1=900um loose tube, 2=2.0mm loose tube, 3=3.0 loose tube
9 - Pigtail Type: 0.8=0.8m, 1.0=1m, S=Specified
A - Connector Type: 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified

FAQ

Q1:Can I have a sample order of Polarization Maintaining CWDM Module? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales.
representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms of Polarization Maintaining CWDM Module?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time Polarization Maintaining CWDM Module?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
