Specifications
Brand Name :
GEZHI or OEM
Model Number :
High Power Coupler
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000Channel per month
Delivery Time :
5-8 work days
Packaging Details :
Paper box
Product Name :
High Power Coupler
Wavelength :
780nm-2050nm
Fiber Type :
PM Fiber
Warranty :
3 Years
Application :
Fiber Sensor
Description

Product Overview of High Power Coupler

High Reliablity 780-2050nm High Power PM Fused Coupler (up to 20W) for Fiber Sensor

High Power Coupler

GEZHI high power optical fiber couplers are fused fiber devices that combine light for high power optical fiber and laser applications. We offers a variety of standard, WDM and polarization maintaining (PM) splitters and couplers that separate or combine multiple, high power optical signals.
GEZHI offers additional customization options such as pigtail lengths, fiber type, and packaging.

Features & Applications of High Power Coupler

Features:

• Low insertion loss
• Low polarization dependent loss (PDL)
• High stability and reliability
• High Power Handling

Applications:

•Coherent Communication
•Power Monitor
• Fiber Sensor
•Fiber Amplifiers

Specifications of High Power Coupler

Parameter Unit Value
Center Wavelength nm 2050, 2000, 1950 1550, 1480, 1310 1064, 1030, 980 850, 808, 780
Operating Bandwidth nm ±15 ±15 ±10 ±10
Max. Excess Loss dB 0.8

0.5

 0.6 0.8
Min. Extinction Ratio dB 16

20

 20 20
Min. Directivity dB 50
Min. Return Loss dB 50
Max. Optical Power W 5, 10, 20 or Specified
Package Dimensions Input Power <5 mm φ3x60
Input Power ≤20 mm 70x12x8
Operating Temperature ℃ -5~+75
Storage Temperature ℃ -40~+85
Splitting Ratio Tolerance
Splitting Ratio 50 % ±3.0
40 % ±2.5
30 % ±2.0
20 % ±1.5
10 % ±1.0
5 % ±0.7
1 % ±0.3

Note:With connectors, the handling power is 1W only, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
Connector key is aligned to slow axis.

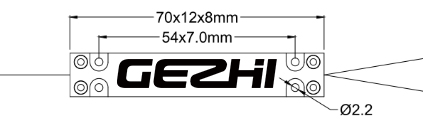

Package Dimension

780-2050nm High Power PM Fused Coupler 20W High Reliability For Fiber Sensor780-2050nm High Power PM Fused Coupler 20W High Reliability For Fiber Sensor

Odering Information of High Power Coupler

HPMFUC-1111-233-444-56-7-888-99AA (1x2 Type) / HPMFUC-1111-233-444-56-7-8888-99AA (2x2 Type)

1111 - Wavelength: 2000=2000nm, 1550=1550nm, 1064=1064nm, 980=980nm, SSSS=Specified
2 - Port Type: 3=1x2, 4=2x2
33 - Tap Ratio: 01=1/99, 05=5/95,..., 50=50/50
444 - Fiber type: 001=PM1550, 002=PM1310, 003=PM980, 045=PM1950, 067=PM780-HP, SSS=Specified
5 - Package Dimensions: 0=φ3.0x60, 1=70x12x8mm, S=Specified
6 - Pigtail type: 0=bare fiber, 1=900μm loose tube
7 - Fiber length: 0.8=0.8m, 1.0=1m, S=Specified
8888 - Connector type: 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
99 - Average Power: 01=1W, 05=5W, 10=10W, 20=20W, SS=Specified
AA - Peak Power: 00=Continuous Wave, 01=1kW, 02=2kW, 10=10kW, SS=Specified

FAQ

Q1:Can I have a sample order? What is your MOQ of High Power Coupler?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time of High Power Coupler?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
