Specifications
Brand Name :
GEZHI or OEM
Model Number :
1950,2000,2050nm High Power Optical Circulator
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Power :
up to 20W
Warranty Time :
36 months
Ports :
3
Application :
Fiber Instrument
Wavelength :
1950, 2000, 2050nm
Description

Good Price 3 ports 1950,2000,2050nmHigh Power Optical Circulator for Fiber Instrument (up to 20W)

Product Description

The 1950,2000,2050nm 3-port High Power Optical Circulator (up to 20W) routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3. So, fiber optic circulators act as signal routers, transmitting light from an input fiber to an output fiber, but directing light that returns along that output fiber to a third port. They perform a similar function as an isolator, protecting the input fiber from return power, but also allowing the rejected light to be employed.
3 Ports High Power Components Optical Circulator 1950nm 2000nm 2050nm For Fiber Instrument 3 Ports High Power Components Optical Circulator 1950nm 2000nm 2050nm For Fiber Instrument 3 Ports High Power Components Optical Circulator 1950nm 2000nm 2050nm For Fiber Instrument
Applications
Fiber Sensor
Fiber Instrument
EDFA & Raman Amplifier
Features
High Return Loss
Low Insertion Loss
High Reliability& Stability
High Isolation
Specifications
Parameter Unit Value
Port Type -

3 Port
Center Wavelength nm 1950, 2000, 2050
Operating Wavelength Range nm

±10
Max. Insertion Loss at 23℃ dB 1.3
Min. Isolation at 23℃ dB 16
Min. Crosstalk dB 50
Min. Extinction Ratio at 23℃ (PM Fiber Type) dB 18
Max. Polarization Dependent Loss at 23℃ (SM Fiber Type) dB 0.15
Min. Return Loss dB 50
Max. Optical Power W 1, 2, 5,..., 20 or Specified
Package Dimensions Input Power ≤5W mm φ5.5x35 (PM type only)
Input Power ≤20W mm 50x28x14
Max. Tensile Load N 5
Operating Temperature ℃ 0~+70
Storage Temperature ℃ -40~+85

With connector, the handling power is 1W only, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
Connector key is aligned to slow axis.

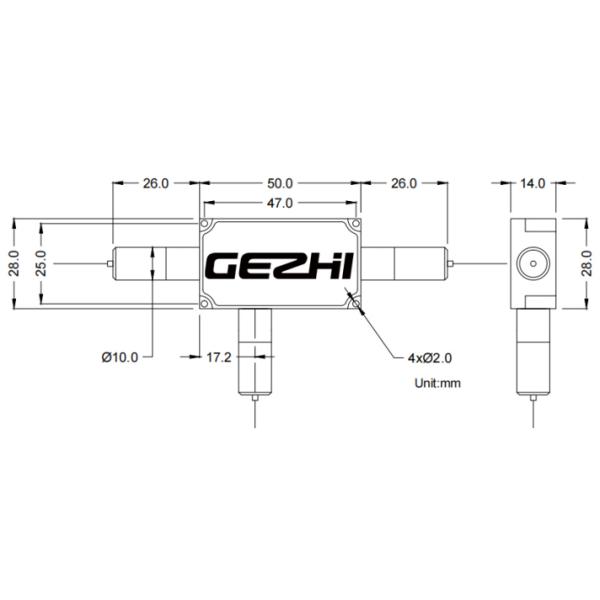

Package Dimensions
3 Ports High Power Components Optical Circulator 1950nm 2000nm 2050nm For Fiber Instrument

Ordering Information

HPMCIR-1111-23-444-56-7-888-99AA (PM Fiber Type) / HPICIR-1111-23-444-56-7-888-99AA (SM Fiber Type)
1111 - Wavelength: 2050=2050nm, 2000=2000nm, 1950=1950nm, SSSS=Specified
2 - Port Type: 3=3-Port
3 - Working Axis: F=Fast axis blocked, N=Non-PM
444 - Fiber Type:

001=PM1550, 008=SMF-28, 022=PM-GDF-10/130-2000-M, 0045=PM1950,

090=SM1950, SSS=Specified
5 - Package Dimension: 0=φ5.5x35mm, 1=70x12x8mm, 2=50x28x14mm, S=Specified
6 - Pigtail Type: 0=bare fiber, 1=900μm loose tube
7 - Fiber Length: 0.8=0.8m, 1.0=1m, S=Specify
888 - Connector Type: 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
99 - Average Power: 00=300mW, 01=1W, 05=5W, 10=10W, 20=20W, SS=Specified
AA - Peak Power: 00=Continuous Wave, 10=10kW, SS=Specified
