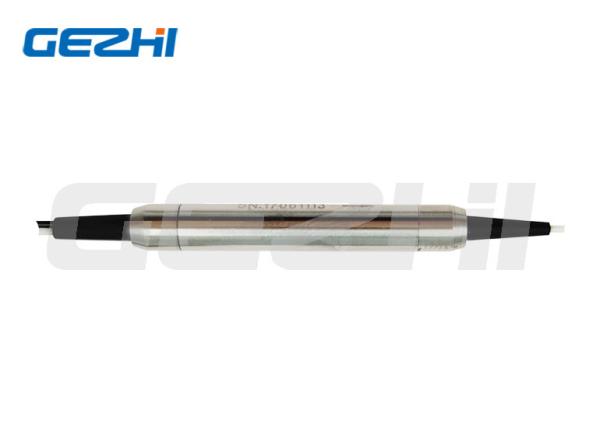

3 Ports Optical Circulator Fiber Optic Passive Components With FC Connector
3 Ports Optical Circulator Fiber Optic Passive Components With FC Connector
3 Ports Optical Circulator Fiber Optic Passive Components With FC Connector
3 Ports Optical Circulator Fiber Optic Passive Components With FC Connector
3 Ports Optical Circulator Fiber Optic Passive Components With FC Connector
3 Ports Optical Circulator Fiber Optic Passive Components With FC Connector
3 Ports Optical Circulator Fiber Optic Passive Components With FC Connector
3 Ports Optical Circulator Fiber Optic Passive Components With FC Connector
Specifications
Brand Name :
GEZHI or OEM
Model Number :
3-port optical circulator
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Package :
Steel Tube
Ports :
3 Ports
Application :
FTTH
Connector :
SC/FC/LC/ST
Wavelength :
1310±30 Or 1550±30 Or 1585±30
Pigtail Length: :
1m Or Customized
Description

Low Back Reflection Optical Circulator 3 Ports Fiber Module With FC Connector

Product Description

Gezhi's Optical circulators have many applications in optical circuits and optical communication systems for redirecting bidirectional optical signals into different ports.

An optical circulator is a special fiber-optic component that can be used to separate optical signals that travel in opposite directions in an optical fiber, analogous to the operation of an electronic circulator. An optical circulator is a three-port device designed such that light entering any port exits from the next. This means that if light enters port 1 it is emitted from port 2, but if some of the emitted light is reflected back to the circulator, it does not come out of port 1, but instead exits from port 3.

Applications
Add-Drop Multiplexing

Fiber Sensors
Bidirectional Signal Transmission Systems
Bidirectional Pumping
Coupling In-Line Chromatic Dispersion Compensation Devices

Features
Low Insertion Loss
Low PDL
High Channel Isolation
Compact Package
High Reliability & Stability
Cost Effective

Specification

Parameter P Grade
Configuration Port 1 to Port 2 to Port 3
Operation Wavelength (nm) 1310±30 or 1550±30 or 1585±30
Isolation (dB) Typical 0.6
Maximum 0.8
Typical Isolation (dB) ≥50
Minimum Isolation (dB) ≥40
Cross Talk (dB) ≥50
Polarization Dependent Loss (dB) <0.15
Polarization Mode Dispersion <0.1
Return Loss(dB) ≥50
Power Handling (mW) 500
Opterating Temperature (℃) -10~+75
Package dimension (mm) Φ5.5xL50 or Φ5.5xL63

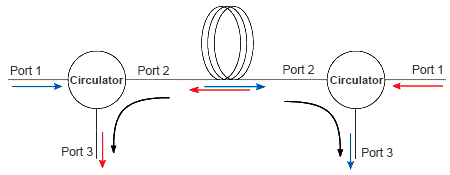

Application Diagram

As the picture shows: A Circulator is located at both ends of the fiber. Each Circulator functions to add a signal in one direction while removing the signal in the other. See the example to the left.

Circulator can be used to send optical signals through a single fiber in two directions.

3 Ports Optical Circulator Fiber Optic Passive Components With FC Connector
