SC APC 1x32 Optical Splitter Steel Tube Type Fiber Optic Passive Components For FTTH
SC APC 1x32 Optical Splitter Steel Tube Type Fiber Optic Passive Components For FTTH
SC APC 1x32 Optical Splitter Steel Tube Type Fiber Optic Passive Components For FTTH
SC APC 1x32 Optical Splitter Steel Tube Type Fiber Optic Passive Components For FTTH
SC APC 1x32 Optical Splitter Steel Tube Type Fiber Optic Passive Components For FTTH
SC APC 1x32 Optical Splitter Steel Tube Type Fiber Optic Passive Components For FTTH
SC APC 1x32 Optical Splitter Steel Tube Type Fiber Optic Passive Components For FTTH
SC APC 1x32 Optical Splitter Steel Tube Type Fiber Optic Passive Components For FTTH
Specifications
Brand Name :
GEZHI or OEM
Model Number :
PLC Splitter 1x32 Steel Tube Type
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Control Type :
G657A1
Port :
1x32
Warranty Time :
3 years
Package :
Stainless steel tube
Wavelength :
1260-1650nm
Use :
System Monitor
Description

Optical PLC Splitter 1x32 SC APC Steel Tube Type Optic Fiber PLC Splitter for FTTH

Product Description:

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. PLC splitters are commonly found in PON(Passive Optical Networks), Datacom, LAN(Local Area Networks), CATV(Cable TV), LCP(Local Convergence Points),FTTx, and more applications, suitable for communication, medical, bank, building, large Office buildings, offices and other places with high-quality network requirements. Blockless PLC splitter is mainly used for the connection of outdoor optical distribution boxes or network cabinets, aiming to improve the utilization rate of customer ports.

Features:

  • Low Insertion loss
  • Compact Design
  • Low PDL
  • Wide Operating Wavelength: from 1260nm to 1650nm
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: 1260-1650nm
  • Wide Operating Temperature: -40°C - 85°C
  • High Reliability and Stability
  • Adopt high strength stainless steel, pass salt spray test
  • Ferrule core is less than 0.5um
  • Adopt 100% new raw material, ROHS compliance
  • Low PDL Compact Design
  • Good channel-to-channel uniformity

Applications:

1.FTTX Systems 2.PON Networks
3.CATV Links 4.Optical Signal Distribution

Specifications:

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube

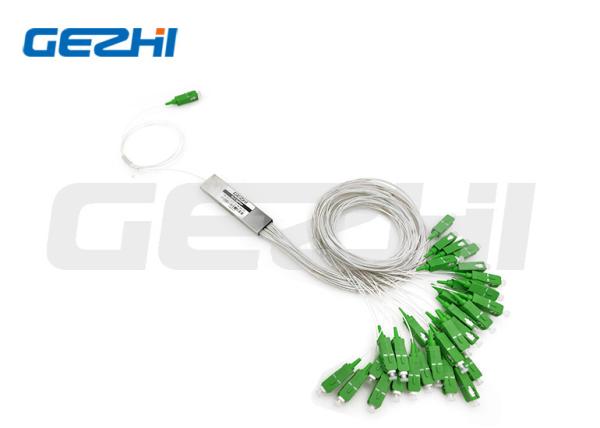

Product image:

SC APC 1x32 Optical Splitter Steel Tube Type Fiber Optic Passive Components For FTTH SC APC 1x32 Optical Splitter Steel Tube Type Fiber Optic Passive Components For FTTH
