FSW 1x48 Fiber Optical Switch 19inch 2U Rackmount 1260~1650nm Single Mode
FSW 1x48 Fiber Optical Switch 19inch 2U Rackmount 1260~1650nm Single Mode
FSW 1x48 Fiber Optical Switch 19inch 2U Rackmount 1260~1650nm Single Mode
FSW 1x48 Fiber Optical Switch 19inch 2U Rackmount 1260~1650nm Single Mode
FSW 1x48 Fiber Optical Switch 19inch 2U Rackmount 1260~1650nm Single Mode
FSW 1x48 Fiber Optical Switch 19inch 2U Rackmount 1260~1650nm Single Mode
FSW 1x48 Fiber Optical Switch 19inch 2U Rackmount 1260~1650nm Single Mode
FSW 1x48 Fiber Optical Switch 19inch 2U Rackmount 1260~1650nm Single Mode
Specifications
Brand Name :
GEZHI or OEM
Model Number :
FSW-1x48-1U
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Wavelength Range :
1260~1650nm
WDL :
≤0.25dB
PDL :
≤0.05dB
TDL :
≤0.25dB
Connector Type :
FC/APC
Fiber Type :
SM,9/125
Description

FSW 1x48 Fiber Optical Switch 19inch 2U Rackmount 1260~1650nm Single Mode

Product Description

1x48 rack-mounted optical switch is a kind of optical path control device which has the function of optical path control and switch. it can choose working optical path switch manually with button and also control optical path switch or scan in frequency the optical switch which need to be monitored with rs 232 port and ethernet port.

GEZHI Photonics can supply full range of 1x2,1x4,1x8,1x12,1x16, 1x24,1x32,1x48,1x64,1x128 up to 1x512 fiber optical switch rackmount.

Features
1.SerialNet, High Reliability, High Stability
2.LED display panel. Visual display, Convenient operation
3.RS232 Control and RJ45 Ethernet Remote Management
4.Channel and time interval of automatic scanning can be set up
5.Transparent transmission signal. High stability and reliability

Applications
1.FITL
2.Maintaining system
3.Automatic Measurement
4.Optical Network Remote Monitoring Cable Monitoring

Technical Index

Parameter Unit 1x4 1x8 1x12 1x16 1x24 1x32 1x48 1x128
Wavelength Range nm 1260~1650 or customized
Testing Wavelength nm 1310/1550 or customized
Insertion Loss (Max) dB ≤1.0 ≤1.0 ≤1.5 ≤1.5 ≤1.5 ≤1.5 ≤1.5 ≤2.0
Return Loss dB SM ≥ 50
Crosstalk dB ≤-70
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.20
Repeatability dB ≤0.02
Switching Time ms ≤10 (Adjacent Channel)
Optical Power mW ≤500
Fiber Type um 9/125
Connector / FC, SC, LC, ST, SMA or customized
Monitor Port / RJ45 & RS232 or customized
Working Power Supply (Plug Tyep) V AC:220V (50/60Hz) or DC:36V~72V
Operating Temperature ℃ -10~+60
Storage Temperature ℃ -40~+85
Rack mount Dimensions mm 1U L483XW230XH44.5 (Up to 16 channel) customization is available.

2U L483XW230XH89 (Up to 36 channel) customization is available.

2U L483XW350XH89 (Up to 64 channel) customization is available.
3U L483XW350XH133.5 (Up to 128 channel) customization is available.
4U L483XW350XH178 (Up to 256 channel) customization is available.

Panel Drawing

Front Panel

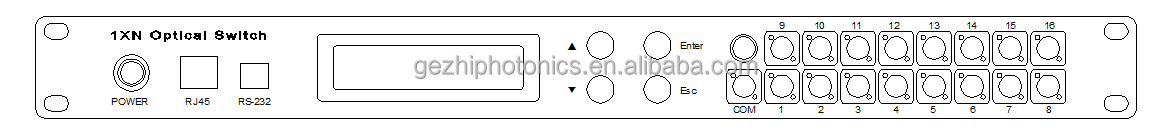

1xN≤16 Optical Switch 19”1U Rack mount

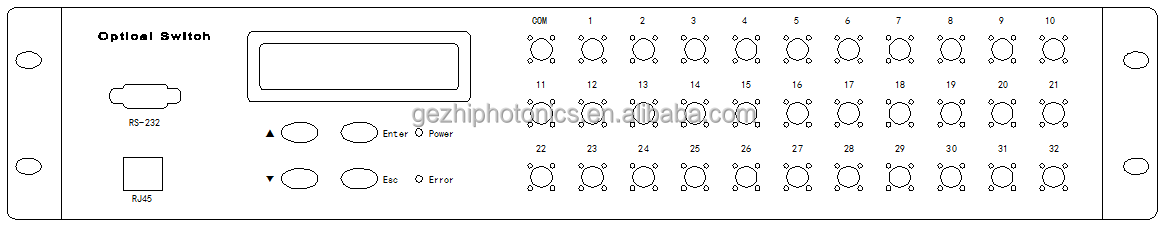

1xN≤36 Optical Switch 19”2U Rack mount

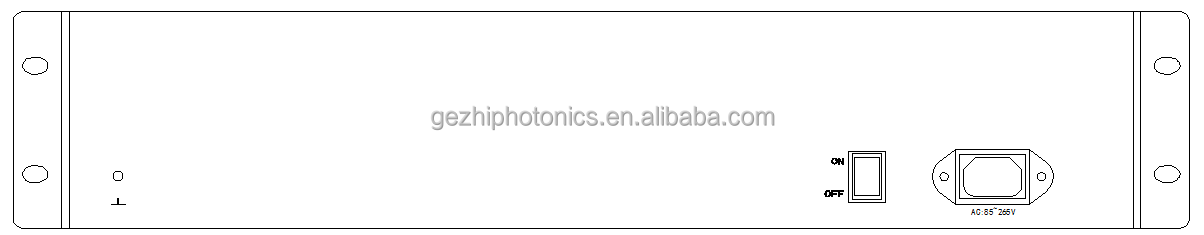

Back Panel

Ordering Information

OSW-XxX-X-XX-X-XX-XX-XX-XX

OSW Mode Wavelength Package Fiber Type Power Supply Connector
1x4
1x8
1x16
1x32
1x64
1x128
S=Specity		 S=SM
M=MM		 85=850nm
13=1310nm
15=1550nm
85/13=850/1300
13/15=1310/1550nm
460nm
780nm
980nm
S=Specify		 1U=1U Rackmount
2U=2U Rackmount
3U=3U Rackmount
4U=4U Rackmount
S=Specify		 M5=50/125
M6=62.5/125
S9=9/125
S105/125
S200/240
S272/300
S365/400
S550/600
S=Specify

AC=Single 85~265V
DC=Single 36~72V
AA=Dual 85~265V
DD=Dual 36~72V
AD=AC85~265V

+DC36~75V

 00=None
FP=FC/UPC
FA=FC/APC
SP=SC/UPC
SA=SC/APC
LP=LC/UPC
LA=LC/APC
S=Specify
