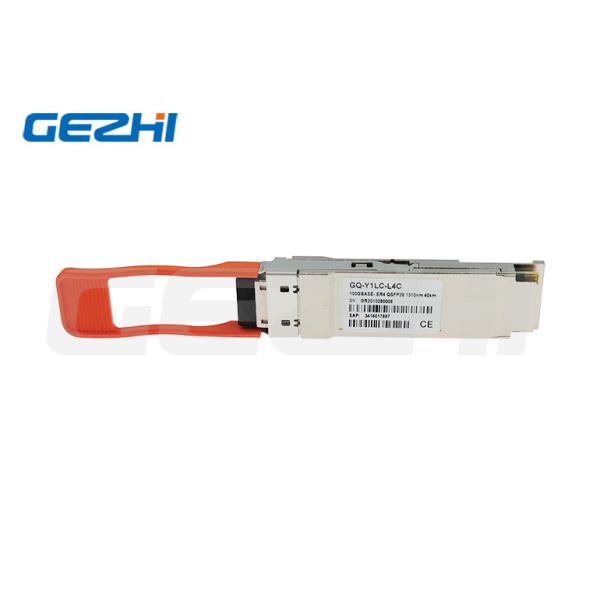

LR ER CWDW 100G QSFP28 Transceiver 1310nm 10km 20km 40km Optical Transceiver Module
LR ER CWDW 100G QSFP28 Transceiver 1310nm 10km 20km 40km Optical Transceiver Module
LR ER CWDW 100G QSFP28 Transceiver 1310nm 10km 20km 40km Optical Transceiver Module
LR ER CWDW 100G QSFP28 Transceiver 1310nm 10km 20km 40km Optical Transceiver Module
LR ER CWDW 100G QSFP28 Transceiver 1310nm 10km 20km 40km Optical Transceiver Module
LR ER CWDW 100G QSFP28 Transceiver 1310nm 10km 20km 40km Optical Transceiver Module
LR ER CWDW 100G QSFP28 Transceiver 1310nm 10km 20km 40km Optical Transceiver Module
LR ER CWDW 100G QSFP28 Transceiver 1310nm 10km 20km 40km Optical Transceiver Module
LR ER CWDW 100G QSFP28 Transceiver 1310nm 10km 20km 40km Optical Transceiver Module
LR ER CWDW 100G QSFP28 Transceiver 1310nm 10km 20km 40km Optical Transceiver Module
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GZ-QSFP28 Series
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Form Factor :
SFP Transceiver
Data Rate :
100Gb
Wavelength :
1310nm
Fiber Type :
SMF
Max. Distance :
10/20/40 Km
Connector :
Duplex LC
Description

LR ER CWDW SFP Module Optical Transceiver 100G QSFP28 1310nm 10km 20km 40km

Overview

The GZ-QSFP28-ER4 is a transceiver module designed for 40km with FEC (30km without FEC) optical communication applications. The design is compliant to 100GbASE-ER4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard. The module converts 4 inputs channels (ch) of 25.78 Gbps to electricaldata to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals, and converts them to 4 lanes output electrical data.

Feature


4 lanes MUX/DEMUX design
Integrated LAN WDM TOSA / ROSA for up to 40 km reach over SMF with FEC (30km without FEC)
Aggregate bandwidth of >100Gbps
DuplexLC connectors
Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard
Single +3.3V power supply operating
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Support FEC (Forward Error Correction)

Order Information

Model Description
GZ-QSFP28-SR4 100G QSFP28 850nm 100m SR4 MPO
GZ-QSFP28-LR4-10C 100G QSFP28 1310nm 10km LR4 LC CWDM4
GZ-QSFP28-LR4-10 100G QSFP28 1310nm 10km LR4 LC
GZ-QSFP28-LR4-20 100G QSFP28 1310nm 20km LR4 LC
GZ-QSFP28-ER4 100G QSFP28 1310nm 40km ER4 LC Lite
