ST/UPC Singlemode 9/125µm 1310 nm/1550 nm Fiber Optic Pigtail
ST/UPC Singlemode 9/125µm 1310 nm/1550 nm Fiber Optic Pigtail
ST/UPC Singlemode 9/125µm 1310 nm/1550 nm Fiber Optic Pigtail
ST/UPC Singlemode 9/125µm 1310 nm/1550 nm Fiber Optic Pigtail
Specifications
Brand Name :
GEZHI
Model Number :
GZ-STP100X
Certification :
CE RoHS,ISO9001
Place of Origin :
China
Fiber Mode :
9/125 μm
Fiber Count :
Simplex
Cable Diameter :
0.9 mm
Cable Jacket :
PVC/LSZH
Wavelength :
1310 nm/1550 nm
iber Grade :
G.652D/G.657A2
Description

Product Description:

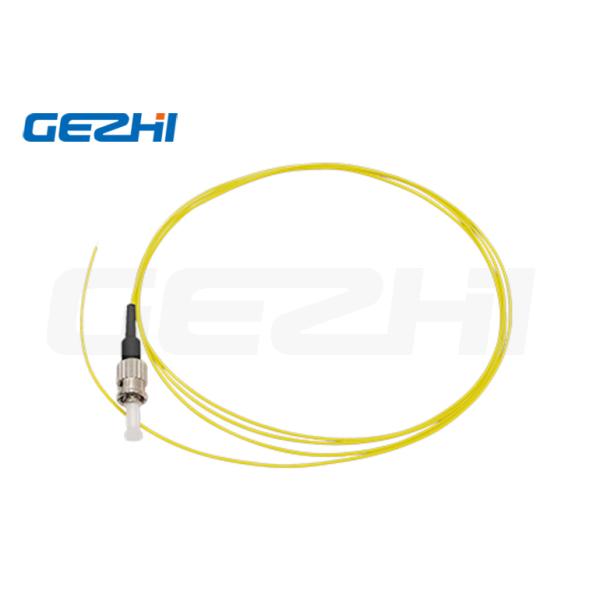

ST/UPC Singlemode 9/125µm 1310 nm/1550 nm Fiber Optic Pigtail

ST/UPC Fiber Pigtail

We offer simplex ST single-mode fiber optic pigtails at a very competitive price. Our ST single-mode fiber optic pigtail comprises an exposed 9/125μm fiber cable at one end and a pre-installed simplex ST connector at the other end. The fiber optic pigtails are commonly used to splice the fiber in the cable so that they can be connected to the patch panel or equipment. This pigtail features a typical 900μm tight-buffered cable as default. Available in different lengths, jacket materials, polish, and cable diameters,our fiber optic pigtail can be ordered to customize any fiber optic protocol to meet your different network applications.

Features

◆Low insertion loss
◆ High back reflection loss
◆ Stable capability and high reliability
◆UPC polish as default
◆Boots in a variety of colors
◆ PVC jacket as default, LSZH optional
◆0.9mm as default, 2.0mm and 3.0mm cable optional
◆ 100% inspected for optical characteristics before shipment
◆ Customized specifications are available

Technical Parameters

Fiber Type 9/125µm Singlemode Fiber Count Simplex
Connector Type ST Polish UPC
Cable Length 1m,2m,3m …5m or Customize Cable Diameter 0.9 mm as default
Tensile Strength 5N (0.9mm), 70N (2.0mm) Length Tolerance +/- 1cm
Insertion Loss ≤0.2dB Return Loss ≥50dB
Repeatability ≤0.2dB Interchangeability ≤0.2dB
Jacket Material PVC (OFNR riser-rated) as default Jacket Color Yellow
Environment Operating: -20°C to 70°C
Storage: -40°C to 85°C		 Compliance RoHS
Application Optical fiber communications system
Optical fiber access networks
Optical fiber CATV
Optical fiber test equipment
Optical fiber data communication		 Application Premises Distribution
Local Area Networks (LAN)
Fiber-to-the-Home (FTTX)
Device Terminations

ST/UPC Singlemode 9/125µm 1310 nm/1550 nm Fiber Optic Pigtail

FAQ

Q1:Can I have a sample order? What is your MOQ of ST/UPC Fiber Pigtail?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms of ST/UPC Fiber Pigtail?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time of ST/UPC Fiber Pigtail?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
