LC MM 50/125 Duplex LC OM4 Fiber Optical Patch Cord
LC MM 50/125 Duplex LC OM4 Fiber Optical Patch Cord
LC MM 50/125 Duplex LC OM4 Fiber Optical Patch Cord
LC MM 50/125 Duplex LC OM4 Fiber Optical Patch Cord
LC MM 50/125 Duplex LC OM4 Fiber Optical Patch Cord
LC MM 50/125 Duplex LC OM4 Fiber Optical Patch Cord
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GZ-OMP100x
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000Channel per month
Delivery Time :
5-8 work days
Packaging Details :
Paper box
Mode :
Multimode OM4
Diameter :
2.0mm, 3.0mm
Core :
50/125
Cover :
PVC, LSZH
Connector :
LC/PC
Application :
CATV Links
Description

Product Overview

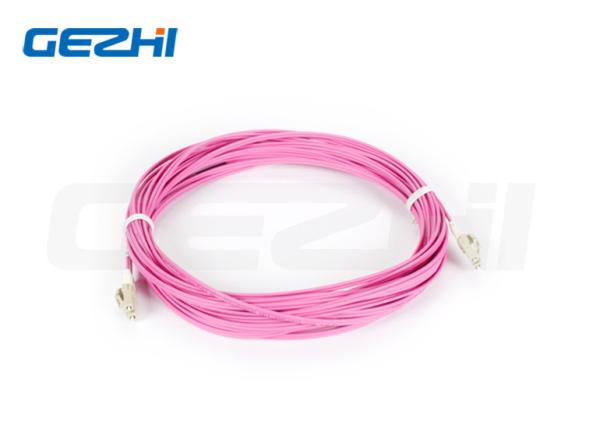

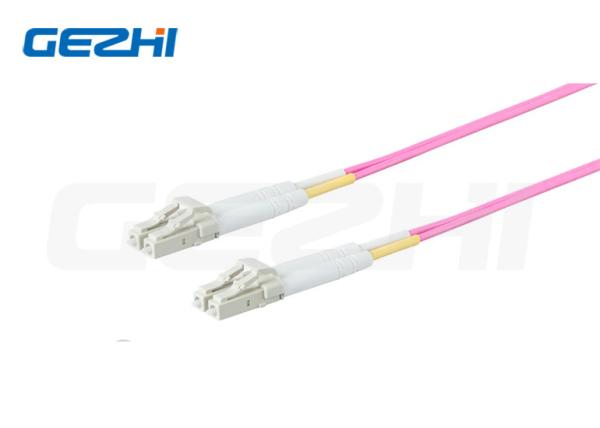

LC MM 50/125 Duplex LC OM4 Fiber Optical Patch Cord

Fiber Patch Cord

The 50/125μm OM4 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.

This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10/40/100G Ethernet connections and is the preferred fiber specification for 40/100G applications.

Features & Applications

Features Applications

♦High return loss, low insertion loss

♦Good interchangeability and durability

♦High stability and reliability

♦Complies with Telcordia, GR-326 core,and RoHS standards

♦Multimode (MM) based on 50/62.5-125um fiber

♦Ceramic ferrule

 ♦Fiber optic communication network
♦Optical Distribution Frame
♦CATV
♦Fiber instruments
♦Metro and Local Area Networks
♦Spectral measurement
♦Data processing networks

Specifications

Mode SM MM
Polish UPC APC PC
Insertion Loss Maximum ≤0.3dB ≤0.25dB
Return Loss ≥50dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strengh > 10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)

LC MM 50/125 Duplex LC OM4 Fiber Optical Patch Cord
FAQ
Q1:Can I have a sample order? What is your MOQ of LC OM4 Patch Cord?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms of LC OM4 Patch Cord?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time of LC OM4 Patch Cord?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
