4 Channel O Band 200 Ghz 4 Channel DWDM Mux Demux
4 Channel O Band 200 Ghz 4 Channel DWDM Mux Demux
Specifications
Brand Name :
GEZHI or OEM
Model Number :
ObandDWDM
Certification :
CE RoHS ,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000Channel per month
Delivery Time :
5-8 work days
Packaging Details :
Paper box
Product Name :
Oband DWDM
Wavelength :
1260-1495
Central wavelength :
1325.782; 1327.249; 1329.220; 1330.459
Connector :
SC/APC or customized
Features :
Passive, Bi-directional
Application :
Data Center
Description

O-Band 200 Ghz DWDM Module 4 Channel Dense WDM Mux and DeMux

GEZHI supply high performance 200GHz Dense Wave Division Multiplexer (DWDM) in O-Band wavelengths
designed for Hybrid Fiber-Coaxial (HFC) network applications. The O-Band 200 Ghz DWDM Module with feature 4 channels, a common input port, and a 1310 upgrade port to allow for future expansion. Options include a single fiber multiplexer or demultiplexer and a dual fiber version that can be either a combination multiplexer and demultiplexer or dual multiplexers or dual demultiplexers. The standard package is the single width LGX module or an ABS flat field module.

Features

Applications
  • High channel
  • Low Insertion Loss
  • High stability and reliability
  • Epoxy-Free Optical Path
  • Metro Networks
  • Long Haul Networks
  • Wavlength Routing
  • Dense WDM System

Specification

Parameter Unit Values
Wavelength Range nm 1260~1495
Center Wavelength nm 1325.782 (226.125 THz)
1327.249 (225.875 THz)
1329.220 (225.540 THz)
1330.459 (225.330 THz)
1310 Upgrade
Channel Passband Width nm 0.4
Pass Channel Insertion Loss dB ≤2.0
Adjacent Channel Isolation dB 25
Non-adjacent Channel Isolation dB 40
Polarization Mode Dispersion ps 0.15
Directivity dB 50
Return Loss dB ≤45
Power Handling mW 300
Operating Temperature ℃ -5 to +65
Storage Temperature ℃ -40 to +85

Ordering Information

O-Band 200 GHz Dense WDM Mux and Demux (Four channel)

ITEM Line Type Pacakge Fiber Length of ABS box Connector
O-Band DWDM

MD=Mux+Demux pair

M=Mux

D=Demux

A=ABS box

L=LGX cassette

R=19" 1U Rackmount

S=Specify

1=1meter

2=2merter

S=Specify

00=None

LP=LC/PC

LA=LC/APC

SP=SC/PC

SA=SC/APC

FP=FC/PC

FA=FC/APC

S=Specify

High Quality TFF Technology
Adopting high quality TFF technology, this O-Band 200Ghz DWDM Module provides low insertion loss and High Isolation.

Customizable
The LGX module type has a variety of package sizes and wavelength options. It can also be customized according to customer requirements, such as mini size, one-way or two-way, upgrade port, etc.

O-Band 200 Ghz DWDM Module 4 Channel Dense WDM Mux and DeMux

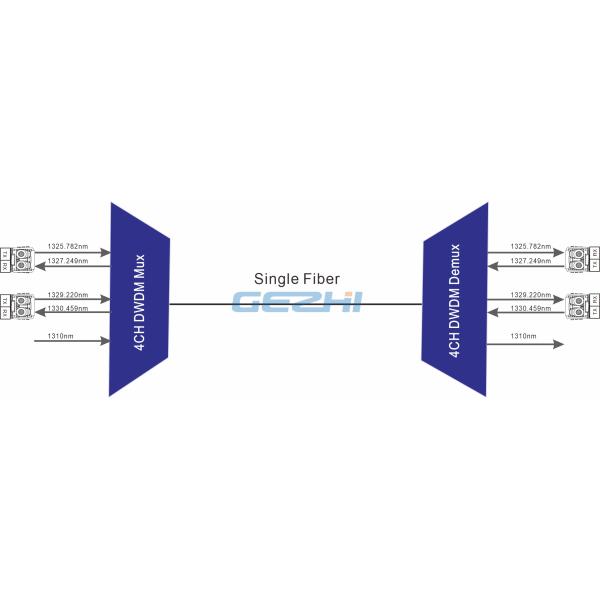

Single Fiber Solution

4 Channel O Band 200 Ghz 4 Channel DWDM Mux Demux

Dual Fiber Solution

4 Channel O Band 200 Ghz 4 Channel DWDM Mux Demux
