100G AAWG DWDM Equipment Gaussian Type Dual Fiber

Gezhi’s 100G AAWG DWDM Equipment Gaussian Type Dual Fiber is a high density, low loss and standalone passive optical module. It is based on a-thermal AWG with Gaussian Monolithic Technology. The 100G AAWG DWDM Equipment Gaussian Type Dual Fiber offers an ultra low-loss (Max: 3.5dB) and high channel isolation WDM solution for metro access and data centers applications. this 100G AAWG DWDM Equipment Gaussian Type Dual Fiber ease of fiber handling, long-term reliability and excellent channel isolation in a 1U 19" Rackmount, which is the ideal device for systems requiring superior performance, low cost and high channel counts. The 100G AAWG DWDM Equipment Gaussian Type Dual Fiber built-in Mux + Demux in one unit, working on two network fibers.

Features

Applications
  • High Channel Isolation
  • Standalong 19" 1U Rackmount
  • Completely passive
  • Low Insertion Loss
  • Metro and long haul Networks
  • Optical signal processing
  • Wavelength selective routing
  • WDM based ADM
  • WDM transmission

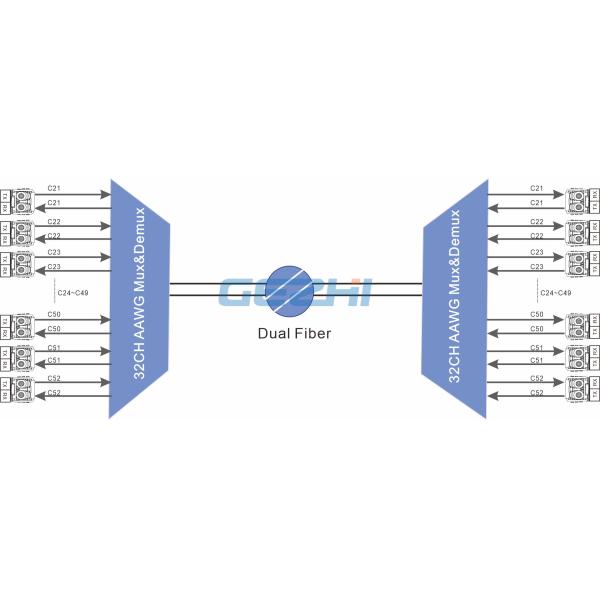

32CH AAWG DWDM Mux+Demux Equipment

Ordering Information

AWG X XX X XX X XX
Channel Spacing Number of Channels Configuration 1st Channel Package Type In/Out Connector
1=100GHz

32=32Channel

40=40 Channel

44=44 Channel

48=48 Channel

S=Single Fiber

D=Dual Fiber

21=Ch21

……

34=Ch34

……

50=Ch50

……

 RU=19” 1U Rackmount

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST/PC

6=ST/APC

7=LC/PC

8=LC/APC

S=Specify

The DWDM AAWG (Athermal Arrayed Waveguide Grating) module is a kind of passive module based on PLC (Planar Waveguide) technology, which does not need additional power supply or temperature control; Compared with traditional TFF (thin film filter) products, AAWG has the advantages of high integration, good uniformity, low PMD and low insertion loss. AAWG can provide a variety of channels, packaging methods and extended ports for customers to choose; At present, due to the multi-channel characteristics of AAWG, it is widely used in long-distance signal transmission such as MAN, backbone network and data center.

Specification

Parameters Conditions Specifications Units
Min. Max.
Operating Temperature Operating -5 65 oC
Operating Humidity Operating 5 95 %RH
Storage Temperature Non_Operating -40 +85 oC
Storage Humidity Non_Operating 5 95 %RH
OPTICAL SPECIFICATION AWG GAUSSIAN AAWG
Parameters Condition Specs Units
Min Type Max
Number of Channels 2-1×32
Number Channel Spacing 100GHz 100 GHz
Cha. Center Wavelength ITU frequency. C –band nm
Clear Channel Passband ±0.1 nm
Wavelength Stability Maximum range of the wavelength error of all channels and temperatures in average polarization. ±0.05 nm
-1 dB -1 dB Channel Bandwidth Clear channel bandwidth defined by passband shape. For each channel 0.24 nm
-3 dB -3 dB Channel Bandwidth Clear channel bandwidth defined by passband shape. For each channel 0.43 nm
Optical Insertion Loss at ITU grid Defined as the minimum transmission at ITU wavelength for all channels. For each channel, at all temperatures and polarizations. 3.2 3.5 dB
Adjacent Channel Isolation Insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of the adjacent channels. 30 dB
Non-Adjacent, Channel Isolation Insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of the nonadjacent channels. 40 dB
Total Channel Isolation

Total cumulative insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band

of all other channels, including adjacent channels.

 33 dB
Insertion Loss Uniformity Maximum range of the insertion loss variation within ITU across all channels, polarizations and temperatures. 0.8 1.0 dB
Insertion Loss Ripple

Any maxima and any minima of optical loss across

ITU band, excluding boundary points, for each channel at each port

 0.4 0.5 dB
Directivity Ratio of reflected power out of any channel (other than channel n)to power in from the input channel n 50 dB
Optical Return loss Input & output ports 40 dB
PDLPolarization Dependent Loss in Clear Channel Band Worst-case value measured in ITU band 0.3 0.5 dB
Polarization Mode Dispersion 0.5 ps
Maximum Optical Power 23 dBm
MUXDEMUX input output Monitoring range -35 +23 dBm

32 Channels 100Ghz Gaussian Athermal AWG DWDM Dual Fiber Rack Mountable

C50 Gaussian Dual Fiber 32 Channel 100G AAWG DWDM

100G AAWG DWDM Equipment Gaussian Type transmission over Dual Fiber
