1310nm SM 1 Meter SC UPC 2x2B Mechanical Fiber Optical Switches
1310nm SM 1 Meter SC UPC 2x2B Mechanical Fiber Optical Switches
1310nm SM 1 Meter SC UPC 2x2B Mechanical Fiber Optical Switches
1310nm SM 1 Meter SC UPC 2x2B Mechanical Fiber Optical Switches
Specifications
Brand Name :
GEZHI or OEM
Model Number :
2x2B Fiber Optical Switch
Certification :
CE RoHS FCC,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
60000pcs per month
Delivery Time :
2-7 work days
Packaging Details :
2pcs in a foam with plastic Box
Wavelength :
1310nm 2x2B Switch
Control Type :
Non-Latching
Power Supply :
5V
Connector :
SC/UPC
Product Name :
Mechanical Fiber Optical Switch
Feature :
Available in Single Mode / Multi Mode
Description

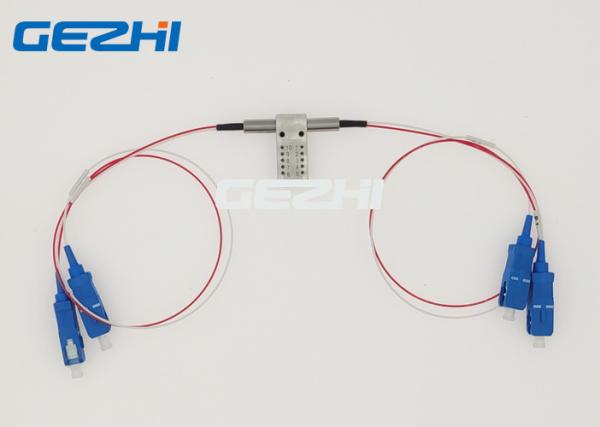

2x2B Mechanical Fiber Optical Switch 1310nm with SM fiber 1meter SC/UPC

GEZHI 2x2B mechanical Fiber Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. Its working with 1310nm wavelenght (1260~1650nm available). This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal. The 2x2B mechanical Fiber Optical Switch offers ultra-high reliability and fast switching speed as well as bi-directional performance. The 2x2B mechanical Fiber Optical Switch are true switching solution for optical networking applications.

Features

PCB Mountable

Smallest Size

Low Insertion-‐Loss

Fast Switching Speed

Industrial Type Available

Available in Single Mode / Multi Mode

Applications

Optical Network Monitoring

Optical network Restoration and Protection

Configurable Optical Add/Drop

Transmission equipment protection

Research and development

Wavelength router

GEZHI 2x2B Mechanical Fiber Optical Switch widely used for optical netrwork protection/restoration, optical signal routing, reconfigurable add/drop multiplexers, optical cross connect (OXC), optical network monitoring, optical test equipments, etc.

Specification

Parameters GZ-FSW-2×2B
Wavelength Range nm 850±40/1300±40 1260～1650
Operating avelength nm 850/1300 1310/1490/1550/1625/1650
Insertion Loss dB Typ:0.8 Max:1.2 Typ:0.6 Max:0.8
Return Loss dB MM≥30 SM≥50
Crosstalk dB MM≥35 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power Supply v 3.0 or 5.0
Lifetime times ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operating Temperature ℃ -20～+70
Storage Temperature ℃ -40～+85
Weight g 16
Dimension mm (L)27.0×(W)12.0×(H)8.2 customization is available.

Optical Route

Status One Status Two


1310nm SM 1 Meter SC UPC 2x2B Mechanical Fiber Optical Switches
1310nm SM 1 Meter SC UPC 2x2B Mechanical Fiber Optical Switches

Pins

Parameters Pins Electric Drive Status Sensor
2×2B Optical Path 1 5 6 10 2-3 3-4 7-8 8-9
Non-latching P1-P3 -- -- -- -- Close Open Open Close
P1-P4,P2-P3 V+ -- -- GND Open Close Close Open
latching P1-P3 -- -- GND V+ Close Open Open Close
P1-P4 P2-P3 V+ GND -- -- Open Close Close Open


Order Information

GZ-2x2B-x-xx-x-x-x-xx-x-x

Mode Wavelength Voltage Type Control Model Fiber Type Fiber Diameter Fiber Length Connector
S=SM
M=MM		 85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others		 3=3V
5=5V		 L=Latching
N=Non- Latching		 5=50/125
6=62.5/125
9=9/125
X=Others		 25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others		 1=1m
2=1.5m
X=Others		 0=None
1=FC/PC
2=FC/APC
3=SC/PC
4=SC/APC
5=ST/PC
6=ST/APC
7=LC/PC
8=LC/APC
