8 Channel Passive DWDM Mux Demux Module Fiber Optical Components

GEZHI’ 8 Channel Passive DWDM Mux Demux Module Fiber Optical Components is a low loss, high density passive optical module which based on the thin film coating technology with C21, C22, C23, C24, C25, C26, C27, C28 wavelengthwith a upgrade port for future development and Fibre Extender or ITU grid wavelength C1 to C61 for customs choice. The 8 Channel Passive DWDM Mux Demux Module Fiber Optical Components offers an high channel isolation WDM solution for data centers and Metro access applications. Its package with ABS box 100x80x10mm LC/UPC pigtailed. The 8 Channel Passive DWDM Mux Demux Module Fiber Optical Components is ideal for long-haul transport of fiber optic singals all over a dual fiber.

Features

Low Insertion Loss

High stability and reliability

High channel

Wide pass band

Epoxy-Free Optical Path

Telcordia GR-1221 Compliant

Applications

Access / Enterprise Networks

Long Haul Networks

CATV Fiber Optic Links

Wavlength Routing

Channel Add/Drop

Dense WDM Systems
Metro Networks

GEZHI's 8 Channel Passive DWDM Mux Demux Module Fiber Optical Components offers high-capacity terminal DWDM solutions for network expansion. This 8 Channel Passive DWDM Mux Demux Module Fiber Optical Components with Upgrade port C21~C28 wavelength Module is used for long-haul transmission where wavelengths are packed tightly together over the C-band in 100GHz grid (0.8nm). The 8 Channel Passive DWDM Mux Demux Module Fiber Optical Components with Upgrade port C21~C28 wavelength is protocol transparent and suited for applications including SDH/SONET, 10/1G Ethernet, 16/8/4/2/1G Fibre Channel, CATV, FTTx, etc.

Specification

8 Channel Passive DWDM Mux Demux filter cascading

8 Channel Passive DWDM Mux Demux Module

Single Fiber DWDM

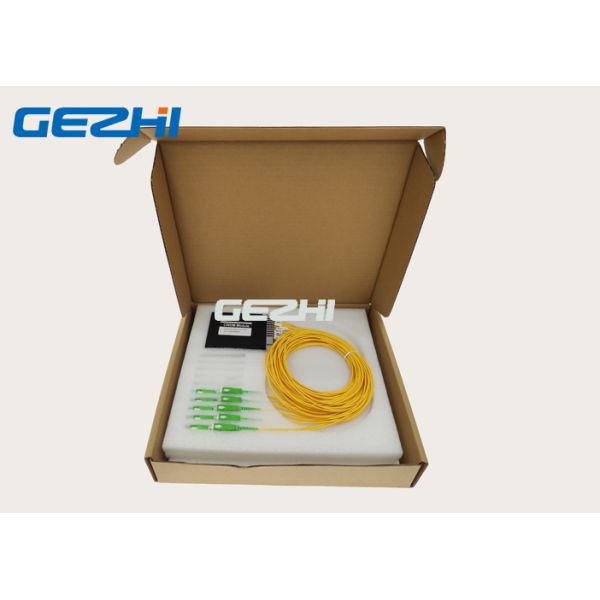

8 Channel Passive DWDM Mux Demux Package
