1x16 CWDM Mux Demux
1x16 CWDM Mux Demux
1x16 CWDM Mux Demux
1x16 CWDM Mux Demux
1x16 CWDM Mux Demux
1x16 CWDM Mux Demux
1x16 CWDM Mux Demux
1x16 CWDM Mux Demux
Specifications
Brand Name :
GEZHI or OEM
Model Number :
16CH-CWDM-M-1RU
Certification :
CE RoHS FCC,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000Channel per month
Delivery Time :
5-8 work days
Packaging Details :
Paper box
Product Name :
CWDM Mux Demux One Pair
Wavelength :
1270~1570nm
Line Type :
One fiber
Connector :
LC/UPC
Feature :
Low insertion loss
Application :
Broadcast contribution networks
Description

1x16 CWDM Unit Mux Demux Equipment Bi-directional over Single Fiber

1x16 CWDM Unit Mux Demux Equipment Bi-directional over Single Fiber is an optical multiplexer that can multiplex up to 16 CWDM sources on a single optical fiber for the CWDM wavelength range with only 3.5dB link insertion loss. Its with an express port for future development and fiber extend.
The CWDM Mux Demux standlone equipment has high channel isolation and can therefore be used in a bi-directional system. The 1x16 CWDM Unit Mux Demux Equipment Bi-directional over Single Fiber consist of a multiplexer and a de-multiplexer which transmit 16 signals over a single fiber.

Features

Applications
  • Epoxy free on optical path
  • High stability and reliability
  • Low insertion loss
  • Wide pass band
  • High channel isolation
  • Optical video networks
  • ​CWDM networks
  • Broadcast contribution networks
  • Event production
  • Dark fiber networks

Standlone 16CH CWDM Mux Demux one pair Equipment

Specification

Parameter

Unit

 16CH CWDM
Mux Demux
Channel Wavelength nm 1270~1590nm

Center wavelength

Accuracy

 nm ±0.5
Channel Spacing nm 20

Channel Passband

(@-0.5dB bandwidth

 nm >14
Max Insertion Loss dB <4.5 or with Skip <3.5 <4.5 or with Skip <3.5
Channel Ripple dB 0.3

Isolation

 Adjacent dB >30
Non-adjacent dB >40

Inertion Loss Temperature

Sensitivity

 dB/℃

<0.005

Wavelength Temperature

Shifting

nm/

℃

 <0.002

Polarization Dependent

Loss

 dB <0.1

Polarization Mode

Dispersion

 dB <0.1
Directivity dB .>50
Return Loss dB >45
Maximum Power Handling mW 300
Opterating Temperature ℃ -5~+75
Storage Temperature ℃ -40~85
Package dimension mm 19" 1U Rack Mount

Note: 1. Customization is available.

2. Specified with connector

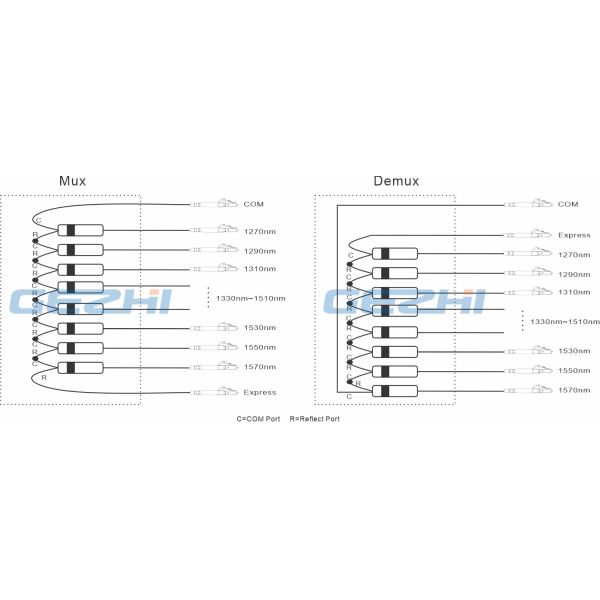

Standlone 16CH CWDM Mux Demux one pair Equipment Filter Cascading

1x16 CWDM Mux Demux

1x16 CWDM Unit Mux Demux Equipment Bi-directional Standlone Rackmount

1x16 CWDM Mux Demux

16 Channel CWDM Mux and Demux Rack Mount Modules over Single FiberSolution

1x16 CWDM Mux Demux

More Pictures of 1x16 Passive CWDM Modules

1x16 CWDM Mux Demux
