FMU Plug in 1U 19 Inch Rack 2 Units 16CH CWDM Mux Demux
FMU Plug in 1U 19 Inch Rack 2 Units 16CH CWDM Mux Demux
FMU Plug in 1U 19 Inch Rack 2 Units 16CH CWDM Mux Demux
FMU Plug in 1U 19 Inch Rack 2 Units 16CH CWDM Mux Demux
FMU Plug in 1U 19 Inch Rack 2 Units 16CH CWDM Mux Demux
FMU Plug in 1U 19 Inch Rack 2 Units 16CH CWDM Mux Demux
FMU Plug in 1U 19 Inch Rack 2 Units 16CH CWDM Mux Demux
FMU Plug in 1U 19 Inch Rack 2 Units 16CH CWDM Mux Demux
Specifications
Brand Name :
GEZHI or OEM
Model Number :
2Slot*16CH-1U
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000Channel per month
Delivery Time :
5-8 work days
Packaging Details :
Paper box
Product Name :
2Slot*16CH-1U
Wavelength :
1310~1610nm
Channel Number :
1x16
Line Type :
Two fiber
Connector :
LC/UPC adaptor
Application :
Access Network
Description

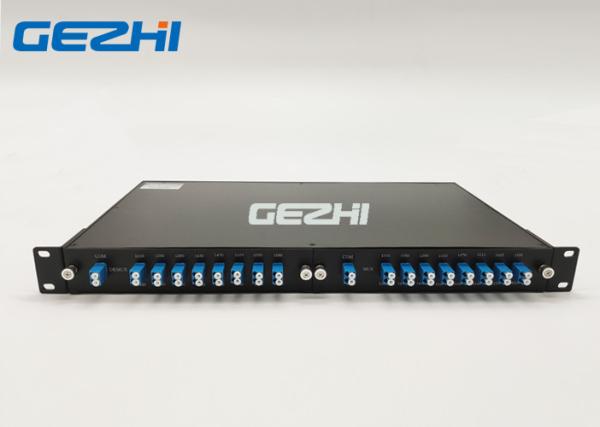

2 Units CWDM Mux/Demux FMU Plug-in Module in 2-Slot 1U 19" Rack Chassis

GEZHI 16CH CWDM Mux/Demux FMU Plug-in Module is built a 16CH Mux LGX cassette + 16CH Demux LGX cassette in one 19" 1U Rack-mount. The wavelenght of 16CH CWDM Mux/Demux FMU Plug-in Module is 1310 to 1610nm. The 16CH CWDM Mux/Demux FMU Plug-in Module offers an high channel isolation WDM solution for data centers and Metro access applications. And working at dual optical network fiber.

Features

Applications
  • Wide pass band
  • Epoxy free optical path
  • High channel isolation
  • High Quality & Low Cost
  • Fully compatible with all ITU-T CWDM optics
  • Combined mux and demux unit, working on two network fibers
  • Fiber optical amplifier
  • WDM network
  • Line monitoring
  • Dark fiber networks
  • Access Network
  • Optical video networks
  • Telecommunication


Specification

Parameter

Unit

 16CH CWDM Mux/Demux
Mux Demux
Channel Wavelength nm 1310~1610nm

Center wavelength

Accuracy

 nm ±0.5
Channel Spacing nm 20

Channel Passband

(@-0.5dB bandwidth

 nm >13
Max Insertion Loss dB <4.5 or with skip <3.5 <4.5 or with skip <3.5
Channel Ripple dB 0.3
Isolation Adjacent dB >30
Non-adjacent dB >40

Inertion Loss Temperature

Sensitivity

 dB/℃

<0.005

Wavelength Temperature

Shifting

nm/

℃

 <0.002

Polarization Dependent

Loss

 dB <0.1

Polarization Mode

Dispersion

 dB <0.1
Directivity dB >50
Return Loss dB >45
Maximum Power Handling mW 300
Opterating Temperature ℃ -20~+70
Storage Temperature ℃ -40~85
Package dimension mm 2-slot 19" 1U Rackmount


Ordering Information

CWDM - XXX - XX - XX - XX - XX - XX
Number of Channels Module type Cable type Fiber length Input connector

Output

connector

M=Mux
D=Demux
MD=Mux+Demux

 01=1Channel
02=2 Channel
03=3 Channel
04=4 Channel
......
16=16Channel
17=17Channel
18=18Channel

0=100x80x10 mm
1=142x102x14.5 mm
2=LGX Box
3=19″1U Rack
4=2card Lgx in 1U Rack-mount
5=4card in 1U Rack-mount
X=Others

 00=none
09=900um
Loose tube
20=2.0mm
30=3.0mm		 05=0.5m
10=1.0m
15=1.5m
30=3.0m
40=4.0m
50=5.0m
......		 0=none
LP=LC/UPC
LA=LC/APC
SP=SC/UPC
SA=SC/APC
FP=FC/UPC
FA=FC/APC
X=Customized

0=none
LP=LC/UPC
LA=LC/APC
SP=SC/UPC
SA=SC/APC
FP=FC/UPC
FA=FC/APC
X=Customized


16CH CWDM Mux/Demux Filter cascading
2 Units 16CH CWDM Mux/Demux FMU Plug-in Module in 2-Slot 1U 19" Rack Chassis

FMU Plug in 1U 19 Inch Rack 2 Units 16CH CWDM Mux Demux
FMU Plug in 1U 19 Inch Rack 2 Units 16CH CWDM Mux Demux


2 Units 16CH CWDM Mux/Demux FMU Plug-in Module in 2-Slot 1U 19" Rack Chassis

Two Fiber

FMU Plug in 1U 19 Inch Rack 2 Units 16CH CWDM Mux Demux
