3 Port Single Channel 1290nm 1x2 OADM CWDM Device
3 Port Single Channel 1290nm 1x2 OADM CWDM Device
3 Port Single Channel 1290nm 1x2 OADM CWDM Device
3 Port Single Channel 1290nm 1x2 OADM CWDM Device
3 Port Single Channel 1290nm 1x2 OADM CWDM Device
3 Port Single Channel 1290nm 1x2 OADM CWDM Device
3 Port Single Channel 1290nm 1x2 OADM CWDM Device
3 Port Single Channel 1290nm 1x2 OADM CWDM Device
Specifications
Brand Name :
GEZHI or OEM
Model Number :
1x2-CWDM OADM
Certification :
CE RoHS ,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000Channel per month
Delivery Time :
5-8 work days
Packaging Details :
Paper box
Product Name :
CWDM OADM device
Wavelength :
1290nm
Line Type :
Single fiber
Connector :
LC/UPC
Package :
Steel Tube
Application :
WDM Network
Description

1x2 OADM Multiplexer 3 port single Channel CWDM device

The 1x2 OADM Multiplexer device is thin film filter technology and metal bonding micro optics packaging for improved performance, such as lower insertion loss and wide channel bandwidth, higher thermal stability, flexible channel configuration with a competitive cost structure.

GEZHI's 1x2 OADM Multiplexer 3 port single Channel CWDM device is used to add or drop a particular wavelength and is ideal for telecommunicationsand networking. Additionally, this 1x2 Add/Drop device can be used in high-power applications in CWDM systems.

Features

Low Insertion Loss
Highly Stable & Reliable
Epoxy-Free Optical Path
High Channel Isolation
Low Profile Packaging

Applications

Fiber Amplifier System

Add/Drop Channels

WDM Systems
CATV Fiberoptic Links

Specification

Parameter Specification
Channel Wavelength (nm) 1260 ~ 1620
Center wavelength Accuracy (nm) ±0.5
Channel Spacing (nm) 20
Channel Passband (@-0.5dB bandwidth (nm) >13
Pass Channel Insertion Loss (dB) ≤0.6
Reflection Channel Insertion Loss (dB) ≤0.4
Channel Ripple (dB) <0.3
Isolation (dB) Adjacent >30
Non-adjacent >40
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 300
Opterating Temperature (℃) -20~+75
Storage Temperature (℃) -40~85
Package dimension (mm)

Φ5.5x34 (Bare fiber)

Φ5.5x38 (900um Loose tube)

Note: 1. Customization is available.

2. Specified with connector

Drawing

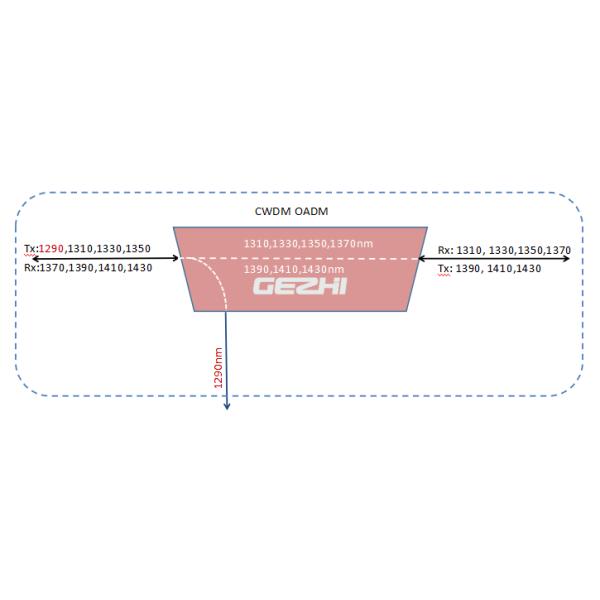

It drops or adds one wavelength-specific channel from the network fiber in single-seded transmission.

3 Port Single Channel 1290nm 1x2 OADM CWDM Device

1x2 Single Channel CWDM add drop multiplexer for EAST or WEST for bi-directional data transmission over single fibers.

1 Channel OADM filter cascading

3 Port Single Channel 1290nm 1x2 OADM CWDM Device

1x2 OADM Multiplexer 3 port single Channel CWDM device

3 Port Single Channel 1290nm 1x2 OADM CWDM Device
