Specifications
Brand Name :
GEZHI or OEM
Model Number :
1x8CHDWDM
Certification :
CE RoHS ,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000Channel per month
Delivery Time :
5-8 work days
Packaging Details :
Paper box
Product Name :
DWDM Module
Wavelength :
C27 to C34
Channel Passband :
0.8nm (100Ghz)
Line Type :
One Fiber
Connector :
SC/APC
Application :
CATV Fiber Optic Links
Description

8+1 CH Optical Passive DWDM Multiplexer Splitter Module

GEZHI’ 8+1 CH Optical Passive DWDM Multiplexer Splitter Module is a low loss, high density passive optical module which based on the thin film coating technology with C27, C28, C29, C30, C31, C32, C33, C34 wavelengthwith a upgrade port for future development and Fibre Extender or ITU grid wavelength C1 to C61 for customs choice. The 8+1 CH Optical Passive DWDM Multiplexer Splitter Module offers an high channel isolation WDM solution for data centers and Metro access applications. Its package with ABS box 100x80x10mm LC/UPC pigtailed. The 8+1 CH Optical Passive DWDM Multiplexer Splitter Module is ideal for long-haul transport of fiber optic singals all over a dual fiber.

Features

Low Insertion Loss

Telcordia GR-1221 Compliant

High stability and reliability

Wide pass band

Epoxy-Free Optical Path

Applications

Metro Networks

Access / Enterprise Networks

CATV Fiber Optic Links

Long Haul Networks

Wavlength Routing

Dense WDM Systems

GEZHI's 8+1 CH Optical Passive DWDM Multiplexer Splitter Module offers high-capacity terminal DWDM solutions for network expansion. This 8+1 CH Optical Passive DWDM Multiplexer Splitter Module with Upgrade port C27~C34 wavelength Module is used for long-haul transmission where wavelengths are packed tightly together over the C-band in 100GHz grid (0.8nm). The 8+1 CH Optical Passive DWDM Multiplexer Splitter Module is protocol transparent and suited for applications including SDH/SONET, 10/1G Ethernet, 16/8/4/2/1G Fibre Channel, CATV, FTTx, etc.

Specification

Parameter Unit 8+1 CH Optical Passive DWDM Multiplexer
Channel Number -- 1x8CH
Operation Wavelength nm C27~C34 +Upgrade Port
Channel Central Wavelength nm ITU-T Grid @DWDM
Channel Passband nm 0.8 (100Ghz)
Insertion Loss @PB dB <2.8
Isolation @Adjacent Channel dB >30
Isolation @Non-adjacent Channel dB >40
Isolation @Reflect Channel dB >15
Passband Ripple dB <0.5
Polarization Dependent Loss dB <0.15
Polarization Mode Dispersion ps <0.1
Directivity & Return Loss dB Directivity: >50 Return Loss:>45
Power Handling mW <500
Connector -- LC/UPC
Fiber Type -- SMF-28e or Customized
Operating Temperature ℃ -20 ~ +70
Storage Temperature ℃ -40 ~ +85
Package Dimension mm ABS box 100x80x10mm

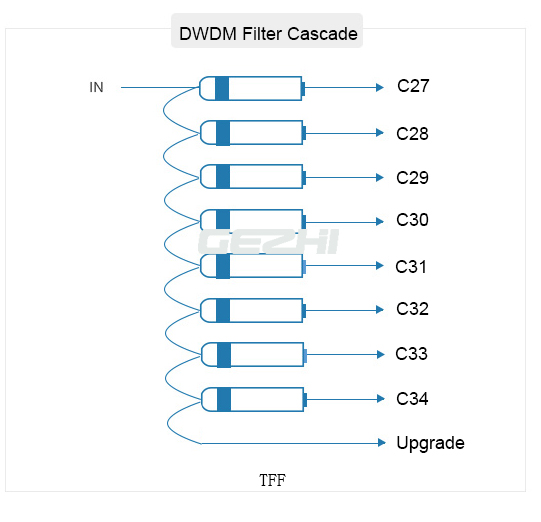

8+1 CH Optical Passive DWDM Multiplexer filter cascading

1x8 Passive DWDM Multiplexer

8+1 CH Optical Passive DWDM Multiplexer Module

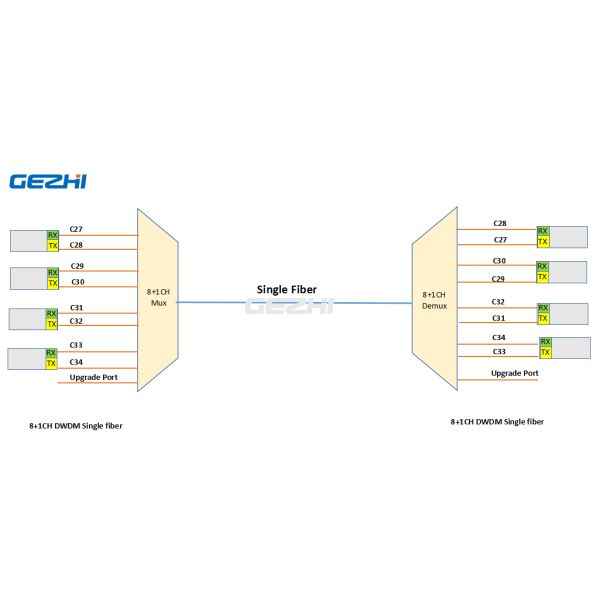

Single Fiber DWDM

1x8 Passive DWDM Multiplexer

8+1 CH Optical Passive DWDM Multiplexer Packaging

1x8 Passive DWDM Multiplexer
