DC 5V PON Network 1620nm 1x16 MEMS Optical Switch
DC 5V PON Network 1620nm 1x16 MEMS Optical Switch
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GZ-MFSW-1x16
Certification :
CE RoHS ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500pcs per month
Delivery Time :
2-7 work days
Packaging Details :
2pcs in a foam with plastic Box
Product Name :
MEMS Switch
Channel :
1xN N≤16
Wavelength :
1260~1620nm
Connector :
Customized
Features :
Fast Switching time
Application :
PON Network
Description

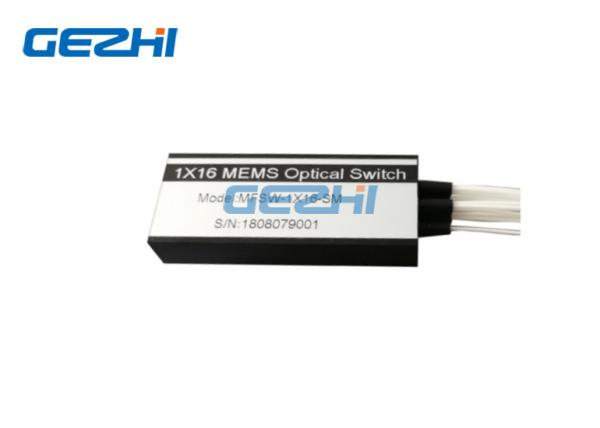

1x16 MEMS Optical Switch Module

With its MEMS-based design, GEZHI Photonics 1x16 MEMS optical switch module durable performance in a compact package. Fast switching time and more than 10-billion lifetime expectancy make it the perfect optical switch for demanding manufacturing applications. The MEMS Optical Switch is available for singlemode fibers with a choice of 1x2, 1x4,1x8, 1x12, 1x16 modules.

Features

Compact Structure
Fast Switching Time
Low Insertion Loss
High Reliability

Applications

PON Network
Protection
Instrumentation
Network Monitoring

Specification

Parameters Unit MFSW-1×N (N≤16)
Operating Wavelength nm 1260~1620 for SM, 850/1310 for MM
Insertion Loss dB ≤ 1.0 (typical: 0.8)
WDL dB ≤ 0.3
TDL dB ≤ 0.3
PDL dB ≤ 0.1
Return Loss dB SM ≥ 50, MM ≥ 30
Crosstalk dB SM ≥ 50, MM ≥ 30
Repeatability dB ≤ ±0.02
Switching Time ms ≤ 8
Durability times ≥ 10 billion
Power Supply V DC 5V ± 5%
Switching Mode Non-latching
Optical Power mW ≤ 500
Operating Temperature °C -5 ~ +70
Storage Temperature °C -40 ~ +85
Operating Humidity % 5 ~ 95
Dimension mm 34×24×11 or 60×24×11

Note: 1. Within operating temperature and all SOP.

2. Excluding connector, and add 0.3dB IL for a pair of connectors.

Pins

Specifications

No. Item Specification
1 Power Supply DC 5V ± 5%
2 Power Consumption <500mW
3 Control UART or Parallel mode (TTL level)

Pin Assignment

Pin Signal Name Description
1 NC No physical internal connection
2 VCC Power Supply (5V)
3 STROBE Falling Edge Active (input)
4 GND Signal Ground
5 D0 Data 0 (input)
6 D1 Data 1 (input)
7 D2 Data 2 (input)
8 D3 Data 3 (input)
9 UART TX UART Transmit (output)
10 UART RX UART Receive (input)
11

GND

 Case Ground
12 RDY Ready (output), use for internal debugging
13 MODE 0=TTL, 1=UART (input)
14 RESET 0=Reset (input)

Optical Route

DC 5V PON Network 1620nm 1x16 MEMS Optical Switch

Dimension

DC 5V PON Network 1620nm 1x16 MEMS Optical Switch

Order Information

GZ-MFSW-1xN-x-x-xx-xx-x

Type Channel Wavelength Fiber Type Fiber Diameter Fiber Length Connector
GZ-MFSW

01=1x1

02=1x2

.....

16=1x16

......

C=C Band

L=L Band

O=O Band

D=C+L Band

X= Others

5=50/125

6=62.5/125

9=9/125

X=Others

25=250um

90=900um

20=2.0mm

30=3.0mm

X=Others

1=1m

2=1.5m

X=Others

0=None

FP=FC/PC

FA=FC/APC

SP=SC/PC

SA=SC/APC

LP=LC/PC

LA=LC/APC

X=Other
