Specifications
Brand Name :
Gezhi or OEM
Model Number :
FWDMT1625
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1 pieces
Price :
USD >= 1 pieces $2.9
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Day
Delivery Time :
7 Days
Packaging Details :
inner box,Carton
Fiber Connector :
SC/UPC, SC/APC etc
Package :
Package
Application :
OTDR
Reflection Wavelength: :
1310/1490/1550nm
Control Type :
T1625nm
Transmission Wavelength :
3V or 5V
Port :
Port
Description

Product description

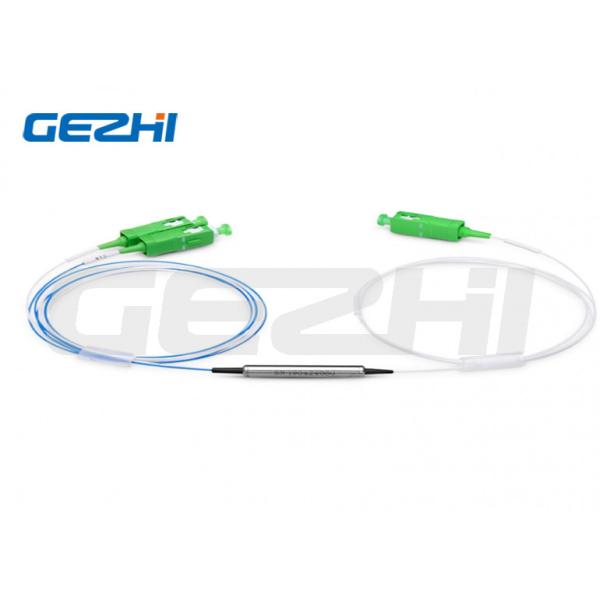

Filter Wavelength Division Multiplexer FTTH/FTTX 1310/1550/1490nm Fwdm Filter WDM

FTTX Filter WDM module extensively used in EDFA, Raman amplifiers, WDM networks, and fiber optics instrumentation is based on Thin Film Filter (TFF) technology. The device combines or separates light at different wavelengths in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication so that widely used in optical network upgrades and expansion, or introduce new comprehensive business, etc. FS provides filter-based wavelength division multiplexing (WDM) filter devices that are customized to the particular wavelength bands for your special applications. As you might know, the GEPON system itself works on 1310/1490, so the CATV signal here is delivered over the same fiber using 1550nm, and FWDM is a place where all this get's "mixed".

Filter Wavelength Division Multiplexer FTTH/FTTX 1310/1550/1490nm Fwdm Filter WDM

Filter Wavelength Division Multiplexer FTTH/FTTX 1310/1550/1490nm Fwdm Filter WDM

Filter Wavelength Division Multiplexer FTTH/FTTX 1310/1550/1490nm Fwdm Filter WDM

Filter Wavelength Division Multiplexer FTTH/FTTX 1310/1550/1490nm Fwdm Filter WDM

Filter Wavelength Division Multiplexer FTTH/FTTX 1310/1550/1490nm Fwdm Filter WDM

Specification

Parameters
Unit
FWDM Device
Operating Wavelength
T: transmission wavelength
R: reflection wavelength
1310±50,1490±10, 1550±10
1610±10, 1625±25, 1650±20
nm
1
T1550 R1310/1490
2
T1490 R1310/1550
3
T1310 R1490/1550
4
T1550/1610 R1310/1490
5
T1550/1625 R1310/1490
6
T1625 R1310/1490/1550
7
T1650 R1310/1490/1550
Insertion Loss
dB
Transmission: ≤ 0.6
Reflection: ≤ 0.4
Transmission Channel Isolation
dB
≥ 30 High Isolation type is available
Reflection Channel Isolation
dB
≥ 17 High Isolation type is available
PDL
dB
≤ 0.1
Wavelength thermal stability
nm/℃
≤ 0.003
Insertion loss thermal stability
dB/℃
≤ 0.005
Return loss
dB
≥ 45
Optical Power
mW
≤ 500
Operating Temperature
℃
-10 ~ +70
Storage Temperature
℃
-40 ~ +85
Relative Humidity
%
5 ~ 95
90×20×10
Dimension
mm
Φ5.5×35
Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector

Filter Wavelength Division Multiplexer FTTH/FTTX 1310/1550/1490nm Fwdm Filter WDM

Filter Wavelength Division Multiplexer FTTH/FTTX 1310/1550/1490nm Fwdm Filter WDM

Filter Wavelength Division Multiplexer FTTH/FTTX 1310/1550/1490nm Fwdm Filter WDM

Filter Wavelength Division Multiplexer FTTH/FTTX 1310/1550/1490nm Fwdm Filter WDM

FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
