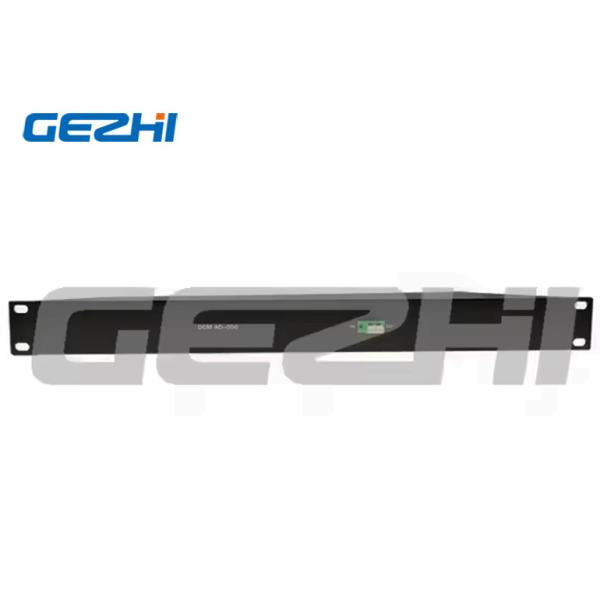

Fiber Repeater DCM OADM chassis Passive dispersion compensation module Fiber Optic DCM in 19" 1U Rackmount

Dispersion Compensation Module (DCM) is designed to fix the form of optical signals that are deformed by chromatic dispersion. The main constituent of DCM is DCF (Dispersion Compensation Fiber) with a negative chromatic dispersion value at C-band wavelength. The module offers a high level of compensation while maintaining a low flat insertion loss as
well as a low latency. When combined with EDFA and OEO, DCM provides a simple, reliable, and cost-effective long-haul transport solution, making signals go further without regeneration.

Fiber Repeater DCM OADM Chassis Passive Dispersion Compensation Module Fiber Optic DCM In 19

Fiber Repeater DCM OADM Chassis Passive Dispersion Compensation Module Fiber Optic DCM In 19

Fiber Repeater DCM OADM Chassis Passive Dispersion Compensation Module Fiber Optic DCM In 19

Feature

Optimized residual dispersion

Low insertion loss Low
Polarization Mode Dispersion
100% Slop Compensation of G.652 fiber in C-band (typical) Broadband dispertion compensation in DWDM System Meet or Exceed Telcordia GR-2854-CORE & GR-21221-CORE Different package styles, connector types, and pigtail lengths are available
Specification
Parameters
AD-020
AD-040
AD-060
AD-080
AD-100
AD-120
Dispersion@1545nm (ps/nm)
-340±10
-670±20
-1000±30
-1340±40
-1680±50
-2010±60
Relative Dispersion Slope 1545nm (nm-1)
0.0036 +/- 20%
Inerstion Loss (dB)
≤4.5
≤6.3
≤8.3
≤10.4
≤12.0
≤12.0
Polarization Mode Dispersion(ps)
≤0.6
≤0.7
≤0.8
≤0.9
≤1.0
≤1.1
Polarization Dependent Loss (dB)
≤0.1
≤0.1
≤0.1
≤0.1
≤0.1
≤0.1
Parameters
AD-010
AD-030
AD-050
AD-070
AD-090
AD-110
Dispersion@1545nm (ps/nm)
-170±5
-500±15
-835±25
-1170±35
-1500±45
-1840±55
Relative Dispersion Slope 1545nm (nm-1)
0.0036 +/- 20%
Inerstion Loss (dB)
≤3.5
≤5.4
≤7.3
≤9.2
≤11.1
≤12.0
Polarization Mode Dispersion(ps)
≤0.6
≤0.7
≤0.8
≤0.9
≤1.0
≤1.1
Polarization Dependent Loss (dB)
≤0.1
≤0.1
≤0.1
≤0.1
≤0.1
≤0.1

Nonlinear Properties
Parameters
Minimum
Maximum
SBS Threshold(dBm)
6
-
Nonlinear Coeff.(n2/Aeff) (W-1)
-
1.4*10-9
Effective Area(Aeff) (um2)
20
-
Environmental Characteristics
Parameters
Minimum
Maximum
Operating Temperature Range
-5℃
70℃
Storage Temperature Range
-40℃
85℃
Environmental/ Reliability
Meet Telcordia GR-2854 and GR-1221
Package
Package Style
19" 1U Rackmount
Connector
LC/UPC
Others
Neutral Packaging or Customized

Ordering Information
AD-SM-C-050-LC/UPC-1RU
AD : DCM Module；
SM :Singlemode fiber pigtailed；
C : C Band；
050 :Dispersion kilometers；
LC/UPC :Connector type；
1RU:19" 1U Rackmount；

Product Model:
AD-SM-C-010-LC/UPC-1RU
AD-SM-C-020-LC/UPC-1RU
AD-SM-C-030-LC/UPC-1RU
AD-SM-C-040-LC/UPC-1RU
AD-SM-C-050-LC/UPC-1RU
AD-SM-C-060-LC/UPC-1RU
AD-SM-C-070-LC/UPC-1RU
AD-SM-C-080-LC/UPC-1RU
AD-SM-C-090-LC/UPC-1RU
AD-SM-C-100-LC/UPC-1RU
AD-SM-C-110-LC/UPC-1RU
AD-SM-C-120-LC/UPC-1RU

Test Enviroment
NO-dust workshop
High Temp. Ageing & High-Low Temperature cycling
100% Testing Before Shipment
Optical Spectrum Analysis

FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
