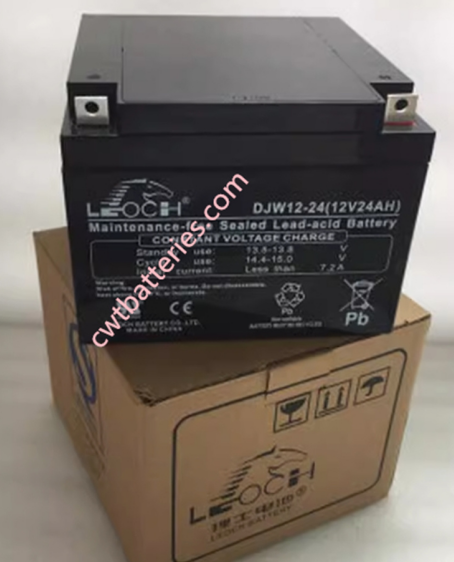

LEOCH DJM12-24 12V 24AH VALVE BATTERY NEW ORIGINAL

►Brief Description

Follow these simple tips to ensure your new battery lasts as long as possible and is safe to use:

Charge your battery after each use to prevent performance degradation.

Avoid completely discharging the battery.

Check the terminals regularly for corrosion or other signs of wear that could cause failure.

Always keep the battery fully charged.

Store batteries in a cool, dry place (approximately 68°F).

Recycle batteries instead of discarding them.

►This battery features:

Rechargeable

Low self-discharge

Absorbent Glass Mat (AGM) technology

Maintenance-free design with valve regulation Anti-spill structure -

Impact-resistant ABS casing

Free voltage matching and top-charging

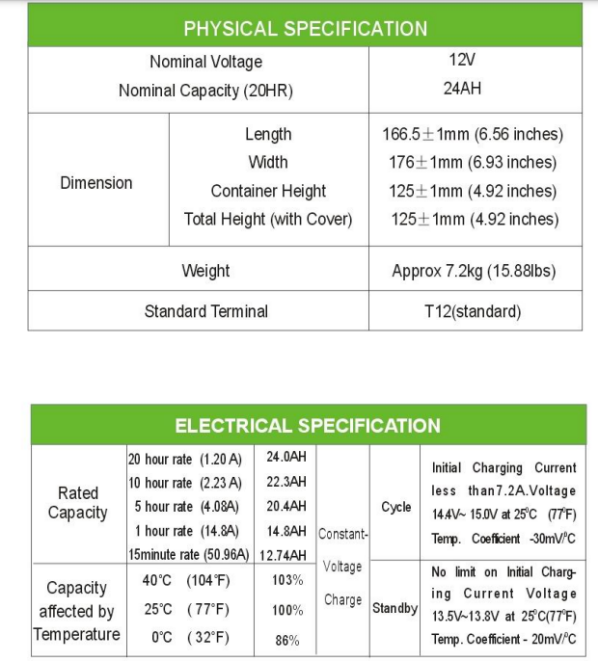

►Specification

►Notes

1. Select the battery model, characteristics and installation method according to the usage and design requirements.

2. Do not mix batteries of different capacities, manufacturers, characteristics and models.

3. It is recommended to use the constant voltage and constant current limiting method to charge the battery. When the ambient temperature is 25°C: The charging voltage in standby mode is 2.23-2.30V/cell, the maximum current is not limited. In cycle mode, the charging voltage is 2.40-2.50V/cell, the average charging voltage is 2.35-2.40V/cell, and the maximum current is 0.3C (C is the rated capacity 1010 at 10-hour rate discharge).

4. Adjust the battery charging voltage according to the ambient temperature during use. The temperature compensation coefficient in standby mode is -3mV/cell. That is, for every 1°C increase in temperature, the charging voltage decreases by 3mV/cell. Conversely, for every 1°C decrease in temperature, the charging voltage increases by 3mV/cell. Temperature compensation coefficient during cycle use is -5mV/cell, average charging time: -4mV/cell.

5. Do not put the battery in a closed container or charge it upside down. It is recommended to charge it in a well-ventilated place.

6. Do not charge it near a heater or in a place where heat is trapped. Do not charge it under direct sunlight.

7. Do not store the battery in organic solvents to prevent deformation and corrosion of the container.

8. Do not leave the battery discharged for a long time. Recharge it after discharging to maintain the capacity. During use, do not over-discharge it to avoid severe sulfation of the plates. Over-discharging will affect the service life and capacity.

9. Do not overcharge the battery. The safety vent will keep opening, which will cause moisture loss and eventually shorten the battery life.

10. Red represents the positive pole and black represents the negative pole. Connect the battery terminals correctly.

11. Keep the entire battery clean and the connections tightly fastened. Avoid damage caused by loose connections.

12. To prevent explosion, do not disassemble the battery or dispose of it in fire.

If you are interested in LEOCH DJM12-24 12V 24AH VALVE BATTERY,please contact us at any time.
