Large Size Tapered Roller Bearing NSK 30248 Bearing 240×440×79mm Used In Mining Equipment

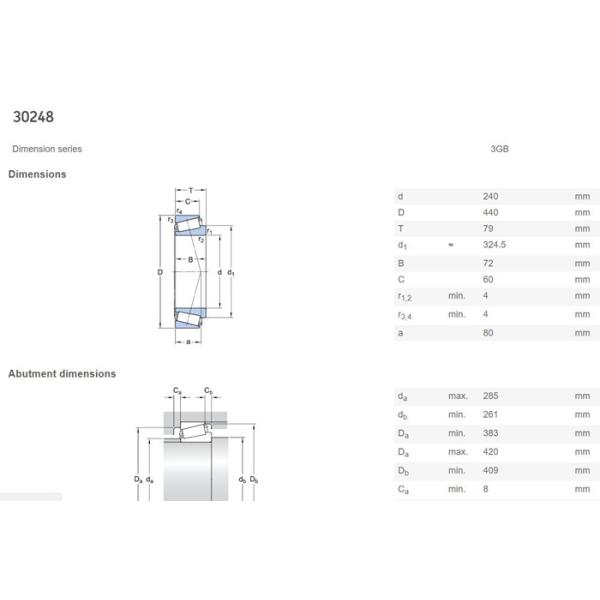

Large size Taper Roller Bearing NSK 30248 Bearing is one kind of tapered roller bearing design . Its dimension is 240×440×79mm , weight is 47kg , the material are adopt high quality chrome steel , this design are separable. the bearing ring with the rollers and cage assembly can be separated from the other ring, so this kind of bearing are the same with single row cylindrical roller bearings.

XRB can supply particularly wear-resistant taper roller bearings. Details are available on request .

Standard design

Taper roller bearings for general use , including XRB bearings to Q specifications, have been optimized with regard to

• sliding contact surfaces of the guide flange of the inner ring

• roller end faces

• raceway contact profile.

In addition, highly accurate manufacturing processes make adjustment of the bearings against each other more reliable , which dramatically improves performance especially during the very first hours of operation.

Inch bearings

Inch taper roller bearings are designated according to the ANSI/ABMA standard.

Metric bearings that belong to the same series maintain the same relative cross section

regardless of their size. This is not the case with inch bearings. All inch bearings within a series use the same cage and roller assembly but the inner and outer rings can have different sizes and designs.

Any cone (the inner ring with cage and roller assembly) can be assembled with any cup (the outer ring) belonging to the same bearing series. For this reason the cone and cup have individual designations and can be supplied separately or as complete bearings .

The designations of the cones and cups as well as the series consist of a three to six-figure number which may be prefixed by one of the following letters or combination of letters: EL, LL,L, LM, M, HM, H, HH and EH. The prefixes characterize a bearing series from extra light to extra heavy.

NSK 30248 bearing is Tapered roller bearing and commonly type and widely used in many application like
the spindle of machine , it contains inner ring , outer ring , and steel cage,tapered roller bearing can carry radial and axial loads in both directions , NSK Taper roller bearings are particularly versatile and are simple in design , separable , NSK 30248 bearing suitable for high and middle high capacity , but low cost maintenance . as one of the biggest top quality bearing brand , Quality can be approved by the market .

Application Of Single Row Tapered Roller Bearings

XRB is the China bearing manufacturer,exporter , supplier , it can supply NSK 30248 bearing , Our large quantity Single Row Tapered Roller Bearings Stock can meet your need with good quality and fast delivery , Also you can find FAG 30248 Bearing , the other type and brand tapered roller bearing . just like NTN , NKE , ZWZ , TIMKEN , KOYO. We accepted DHL , FEDEX , TNT express for small order and samples order , also the transportation By AIR or By Sea , by Train are all avaiable . we asure we can ship high quality NSK 30248 bearing to your office at the first time .
