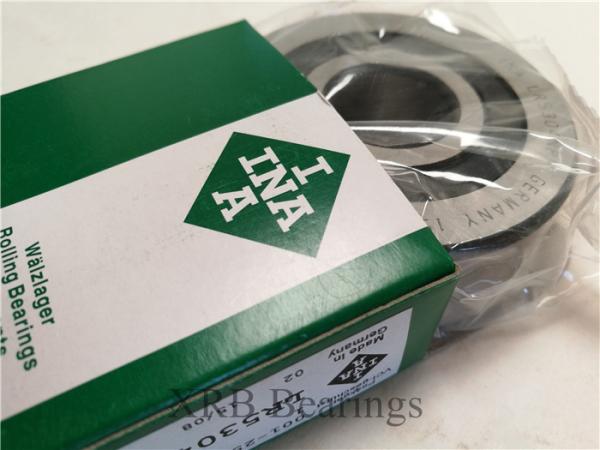

INA Track Roller Bearing LR5203-2Z-TVH Bearing 17×47×17.5mm Used In Extruder Gearbox

Track Roller Bearing INA 5203-2Z-TVH Bearing (also named Track Runner Bearings) is special kind of needle roller bearings design. this kinds of roller Bearings consist of incorporating needle rollers with a stud enclosed in a thick outer ring , Hexagon Socket , cage , stud , side plate , seals , needle roller , Track Roller Bearing and Cam Followers are available in two types ; one with a cage suitable for high speed , and the other with a full complement for heavy loads, but not so high speed , INA Track Roller Bearing 5203-2Z-TVH are available in the standard types which have a screwdriver slot built into a stud head , while the outer rings have a cylindrical outside surface .

Cam followers bearing (also known as Track rollers bearing) INA LR5203-2Z-TVH Bearing are characterized by their thick-walled outer rings that run directly on a track. The thick outer rings permit high load-carrying capability while minimizing both distortion and bending stresses. Sealed designs with internal thrust washers help extend service life under conditions of infrequent lubrication.

• Sizes: Stud-Type: 10 mm – 130 mm (0.3937 in. – 5.1180 in.) O.D. Yoke-Type: 10 mm – 300 mm (0.3937 in. – 11.816 in.) O.D.

• Markets: Ram support rollers, material handling and indexing equipment.

• Features: Available in two basic designs: with an inner ring for straddle mounting in a yoke or with an integral stud for cantilever mounting.

• Benefits: High load-carrying capability with minimized distortion and bending stresses. Extended service life under conditions of infrequent re-lubrication .

Feather of Track Roller Bearing LR5203-2Z-TVH

Track roller studs have a centering diameter , internal threads for a fixing bolt and radial grooves for snap rings that serve to locate track rollers axially. Hexagonal nuts are used for the axial location of wider track rollers. The nuts are screwed onto the protruding threads on the fixing bolts.

Track Roller Bearing have metric size and inch size design , There products are used typically on flat surfaces . Some of the most common applications are :

-transfer rolls -idler rollers

-Support rollers

-Straightening rolls

Application of INA Track Roller Bearing LR5203-2Z-TVH Bearing

--Extruder gearbox

--Bevel gearbox

--Small electric motor

--Electric car motor

--Research vessel M/V OCEAN

--Explorer Concrete pipe production

XRB is the China bearing manufacturer,exporter, supplier , it can supply INA Track Roller Bearings LR5203-2Z-TVH Bearing , Our large quantity INA track roller Bearings Stock can meet your need with good quality and fast delivery , Also you can find the other type and brand bearing, just like NSK , FAG , NTN , NKE , ZWZ ,TIMKEN . We accepted DHL , FEDEX , TNT express for small order and samples order , also the transportation By AIR or By Sea,by Train are all avaiable.we asure we can ship high quality track roller bearings INA LR5203-2Z-TVH Bearing to your office at the first time .
