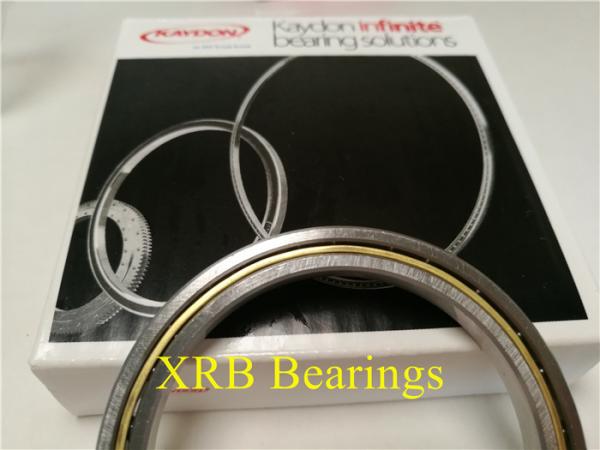

Kaydon Thin Section Bearings KA040XPO Bearings is one kind of ball Bearings design. this kinds of Ball Bearings consist of inner ring,outer ring,steel balls and brass cage , some design will be nylon cage or PEEK cage,Thin Section Bearing have open ,one-piece seals,double-side sealed design , Kaydon thin section ball bearings were developed to meet current engineer needs for thinner,lighter bearings . they are used extensively in automation and labor saving equipment,such as industrial robots .

Angular Contact Bearing (Type A) The Type A bearing is also a conventional design. It features a circular pocket separator and a 30° contact angle along with approximately 67% of a full complement of balls. The chief benefit of the Type A bearing is that it provides greater thrust capacity than a Type C or Type X bearing. Because of its counterbored outer race, a Type A bearing has unidirectional thrust capacity. Thus, this bearing should be mounted opposed to another bearing to establish and maintain the contact angle, and to support reversing thrust loads.

Four-Point Contact Bearing (Type X) Standard bearing lines are most often designed to handle either radial or axial load conditions. The unique feature of the Reali-Slim Type X four-point contact bearing line . is that the gothic arch geometry of the inner and outer races enables a single bearing to carry three types of loading (radial, axial and moment) simultaneously. This makes it the bearing of choice for many applications since a single four-point contact bearing can often replace two bearings, providing a simplified design. Type X bearings may also be furnished with an internal diametral preload for those applications requiring greater stiffness or zero free play. This is accomplished by using balls that are larger than the space provided between the raceways. The balls and raceways, therefore, have some elastic deformation in the absence of an external load.

Specifications of Kaydon Thin Section Bearing KA040XPO

Feather of Kaydon Thin Section Bearings KA040XPO

Thin Section ball bearings Kaydon KA040XPO Bearing are part of the Kaydon thin section bearing assortment. As the name suggests, thin section bearings have very thin rings and very low cross section. They are further characterized by low weight, low friction and high stiffness. Thin section ball bearings are inch dimension bearings that have a constant cross section within a particular series irrespective of the bearing size. Kaydon fixed section bearings are available as either open or sealed

XRB is the China bearing manufacturer,exporter, supplier, it can supply Kaydon KA040XPO Bearing and full series kaydon thin section bearings , Our large quantity Thin Section Bearings can meet your need with good quality and fast delivery, Also you can find the other type and brand bearing, just like NSK , FAG , NTN , NKE , ZWZ , TIMKEN . We accepted DHL , FEDEX , TNT express for small order and samples order,also the transportation By AIR or By Sea , by Train are all avaiable.we asure we can ship high quality Thin Section Bearings KA040XPO Bearing to your office at the first time.
