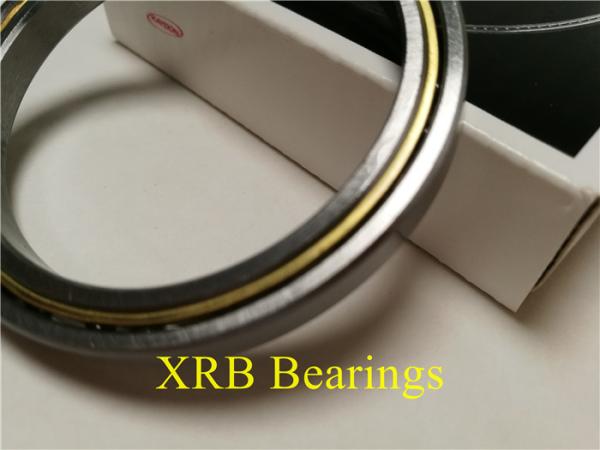

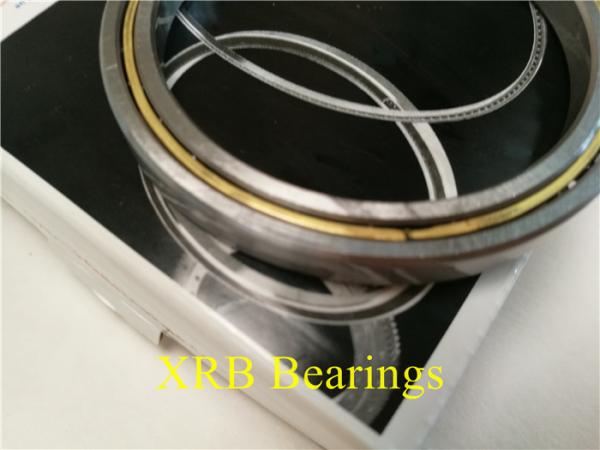

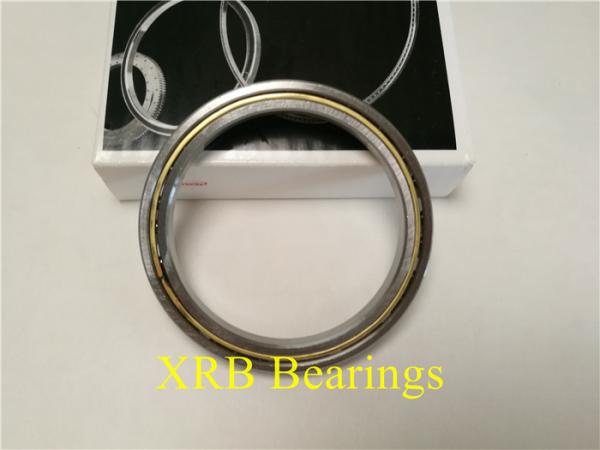

Kaydon Thin Section Bearings JU065XPO Bearings is one kind of ball Bearings design. this kinds of Ball Bearings consist of inner ring,outer ring , steel balls and brass cage , some design will be nylon cage or PEEK cage ,Thin Section Bearing have open , one-piece seals,double-side sealed design , Kaydon thin section ball bearings were developed to meet current engineer needs for thinner , lighter bearings . they are used extensively in automation and labor saving equipment , such as industrial robots .

Kaydon Thin Section Bearings not only supply JU065XPO Bearing, but also produce contains seven series of open types and five series of sealed types, with bore diameter ranging from 1 inch to 40 inch and cross section ranging from 0.1875 × 0.1875 inch to 1.000 × 1.000 inch. Three kinds of Open Thin Section Bearings are available: Radial contact (C Type), Angular contact (A Type) and Four-point contact (X Type). Two kinds of Sealed Thin Section Bearings are available: Radial contact (C Type), and Four-point contact (X Type).

• Brand : Kaydon

• Item Number :

• Technical details (2RS)2RS=Rubber Seals At Each Side Of The Bearing.

• Also known as

• FPXU608-2RS1

• INA CSXU065 2RS Bearing

• SILVERTHIN JSU065XPO Bearing

• FAG L18SG608.2RSD Bearing

• NSK NBX16512DD Bearing

• Category : Four Point Contact Ball Bearing

• Inner (d) MM165,1

• Outer (D) MM；184,15

• Width (B) MM:12,7

• Inner (d) Inch:6.5000

• Outer (D) Inch:7.2500

• Width (B) Inch:0.5000

• Weight (kg):0.4130

• Manufacturer Part Number (MPN) : JU065XPO bearing

• Seal2RS - Rubber Seal on Two Sides

• Cage TypeM - Brass Cage

• Radial Internal PlayCn Normal Internal

• Heat StabilizationNo Heat Stabilization - Temperatures up to 120°C

• Split Innering / OuterringStandard

Angular contact ball bearings can match the optimum number of balls with a contact angle of 30 degrees , They support higher radial loads than deep groove ball bearings or four-point angular contact ball bearings . And can support the axial load from the same direction. For special applications, angular contact ball bearings can also be provided as matched bearings , Four-point contact ball bearings can support both axial and radial loads, so they operate in the same way as double-row angular contact ball bearings . Deep groove ball bearings can support both axial and radial loads in both directions .

Suffix of Kaydon Thin Section Bearing JU065XPO

Material

D – AISI 52100 Steel One shield

E – AISI 52100 Steel Two shields

H – AISI 52100 Steel One seal—Nitrile rubber

J – AISI 52100 Steel Two seals—Nitrile rubber

K – AISI 52100 Steel No seals or shields

L – AISI 52100 Steel, AISI 440C stainless steel balls Two seals and Endurakote® plating

M – M-50 Steel No seals or shields

N – AISI 52100 Steel, AISI 440C stainless steel balls Endurakote plating and No seals

P – AISI 17-4PH Steel Ceramic Balls No shields or seals

Q – AISI 52100 Steel No shields or seals

S – AISI 440C Stainless Steel No seals or shields

V – AISI 440C Stainless Steel Two shields

W – AISI 440C Stainless Steel Two seals—Nitrile rubber

X – AISI 52100 Steel Ceramic Balls No shields or seals

Y – AISI 440C Stainless Steel Ceramic Balls No shields or seals

Z – Other

Suffix of cage design of Kaydon Thin Section Bearing JU065XPO

G Nylon one-piece molded ring with circular pockets - A

H Phenolic laminate one-piece machined ring with circular pockets - A

J Nylon molded strip with circular pockets - A

K Phenolic laminate, riveted two-piece ring type - A, C, X

Q PEEK, one-piece molded ring with circular pockets - A

R Standard one-piece formed ring with circular pockets – A

U Stainless steel, formed ring circular pockets type - A

Y Brass, formed ring, circular pockets type - A

F Full complement bearing - A, C, X

S Helical coil spring - C, X

Z Other (toroid ball spacers, spacer slugs, spacer ball or others available) - A, C, X

XRB is the China bearing manufacturer,exporter, supplier, it can supply Kaydon JU065XPO Bearing and full series kaydon thin section bearings , Our large quantity Thin Section Bearings can meet your need with good quality and fast delivery, Also you can find the other type and brand bearing, just like NSK , FAG , NTN , NKE , ZWZ , TIMKEN . We accepted DHL , FEDEX , TNT express for small order and samples order,also the transportation By AIR or By Sea , by Train are all avaiable.we asure we can ship high quality Thin Section Bearings Kaydon JU065XPO Bearing to your office at the first time.
