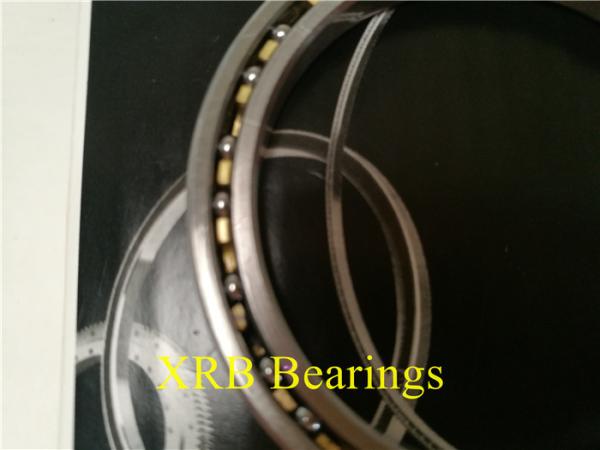

Kaydon Thin Section Bearings KA020ARO Bearings is one kind of ball Bearings design. this kinds of Ball Bearings consist of inner ring,outer ring,steel balls and brass cage , some design will be nylon cage or PEEK cage,Thin Section Bearing have open ,one-piece seals,double-side sealed design ,Kaydon thin section ball bearings were developed to meet current engineer needs for thinner,lighter bearings . they are used extensively in automation and labor saving equipment,such as industrial robots .

Kaydon not only supply Thin Section Bearings KA020ARO Bearing,but also produce contains seven series of open types and five series of sealed types, with bore diameter ranging from 1 inch to 40 inch and cross section ranging from 0.1875 × 0.1875 inch to 1.000 × 1.000 inch. Three kinds of Open Thin Section Bearings are available: Radial contact (C Type), Angular contact (A Type) and Four-point contact (X Type). Two kinds of Sealed Thin Section Bearings are available: Radial contact (C Type), and Four-point contact (X Type).

Angular Contact Bearing (Type A) The Type A bearing is also a conventional design. It features a circular pocket separator and a 30° contact angle along with approximately 67% of a full complement of balls. The chief benefit of the Type A bearing is that it provides greater thrust capacity than a Type C or Type X bearing. Because of its counterbored outer race, a Type A bearing has unidirectional thrust capacity. Thus, this bearing should be mounted opposed to another bearing to establish and maintain the contact angle, and to support reversing thrust loads.



Suffix Of Kaydon Thin Section Bearing KA020ARO Bearing

D – AISI 52100 Steel One shield
E – AISI 52100 Steel Two shields
H – AISI 52100 Steel One seal—Nitrile rubber
J – AISI 52100 Steel Two seals—Nitrile rubber
K – AISI 52100 Steel No seals or shields
L – AISI 52100 Steel, AISI 440C stainless steel balls Two seals and Endurakote® plating
M – M-50 Steel No seals or shields
N – AISI 52100 Steel, AISI 440C stainless steel balls Endurakote plating and No seals
P – AISI 17-4PH Steel Ceramic Balls No shields or seals
Q – AISI 52100 Steel No shields or seals
S – AISI 440C Stainless Steel No seals or shields
V – AISI 440C Stainless Steel Two shields
W – AISI 440C Stainless Steel Two seals—Nitrile rubber
X – AISI 52100 Steel Ceramic Balls No shields or seals
Y – AISI 440C Stainless Steel Ceramic Balls No shields or seals
Z – Other

XRB is the China bearing manufacturer,exporter, supplier, it can supply Kaydon KA020ARO Bearing and full series kaydon thin section bearings , Our large quantity Thin Section Bearings can meet your need with good quality and fast delivery, Also you can find the other type and brand bearing, just like NSK , FAG , NTN , NKE , ZWZ , TIMKEN . We accepted DHL , FEDEX , TNT express for small order and samples order,also the transportation By AIR or By Sea , by Train are all avaiable.we asure we can ship high quality Thin Section Bearings Kaydon KA020ARO Bearing to your office at the first time.
