Self-aligning Ball Bearing NSK 1215K Bearing 75×130×25mm Used In Metallurgy

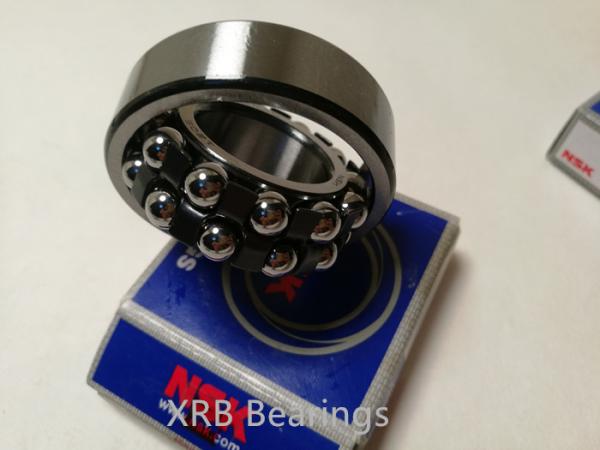

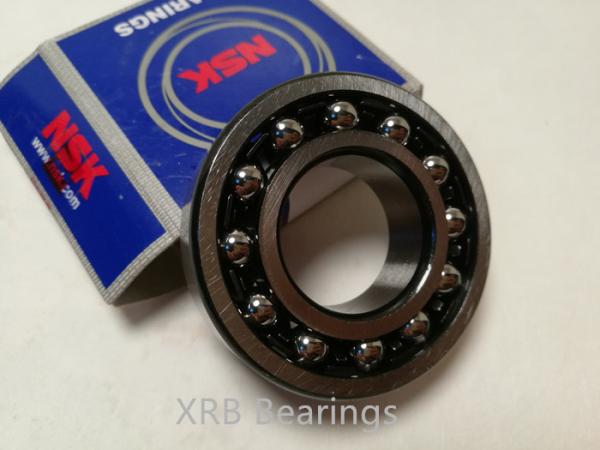

Double Row Self-aligning Ball Bearing NSK 1215K Bearing is one kind of self-aligning ball bearings design . Its dimension is 75×130×25mm , weight is 1.3kg , the material are adopt high quality chrome steel,this design its similar with deep groove ball bearings. they are all have one inner ring and outer ring, pressed steel cage or brass cage ( self-aligning ball bearings usually use Glass fibre reinforced PA66 cage) , they are all use steel balls , but self-aligning ball bearings can self-aligning when they working, and deep groove ball bearings can be high speed then self-aligning ball bearings , so the end-user have to choose them according to specific applications.

Basic Design Self-aligning ball bearings NSK 1215K Bearing of the basic design are available with both a cylindrical bore and a tapered bore with a 1:12 taper. Tapered bore bearings are furnished with adapter sleeves, including nut and lock washer, with which the bearings can be secured to smooth or stepped shafts. They are identified by suffix letter K. Sealed Bearings Self-aligning bearings with cylindrical and tapered bores are available with contact seals on both sides, identified by the suffix 2RS1. The seals are made of oil and wear resistant synthetic rubber reinforced by a steel insert. The operating temperature range for the seals, with a suitable grease, is -40˚C to 120˚C (-40˚F to 248˚F).

Sealed bearings are supplied with a lithium base grease suitable for an operating temperature range of -30˚C to 110˚C (-22˚F to 230˚F). Sealed Self-aligning ball bearings bearings with a tapered bore require a special adapter sleeve and lock washer identified by the suffix letter C. The lock washers have a circular beading on the side facing the bearing to prevent interference with the seal .

Double Row Self-aligning Ball Bearing NSK 1215K Bearing is constructed with the inner ring and ball assembly contained within an outer ring which has a spherical raceway for self aligning. and this kind of bearings are particularly suitable for applications where misalignment occurs from errors in mounting or from shaft deflection. the feature of this kind of bearing effect it can carry only in heavy axial load applications . For applications where the bearing load (particularly axial load) carrying capacity is insufficient, spherical roller bearings, which have the same self-aligning property, should be used instead.

Application of Self-aligning Ball Bearing

Self-aligning ball bearings are suitable for heavy and shock loading , mainly used in Precision instrument , Low noise motor , Automotive , motorcycle , Metallurgy, rolling mills, mines, petroleum, paper-making, cement, sugar and General machinery .

XRB is the China bearing manufacturer,exporter, supplier , it can supply NSK 1215K bearing, Our large quantity Self-aligning Ball Bearings Stock can meet your need with good quality and fast delivery , Also you can find FAG 1215-K-TVH Bearing , the other type and brand Self-aligning Ball bearing . just like KOYO , NACHI , NTN , NKE , ZWZ , TIMKEN . We accepted DHL , FEDEX , TNT express for small order and samples order , also the transportation By AIR or By Sea , by Train are all avaiable.we asure we can ship high quality Self-aligning Ball Bearings NSK 1215K Bearing to your office at the first time .
