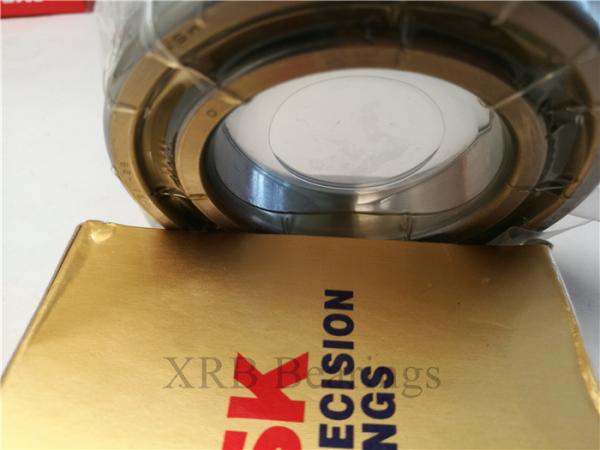

High precision Angular Contact Ball Bearing NSK 7207 Bearing is one kind of ball bearings design. Its dimension is 35×72×17mm , weight is 0.28kg , the material are adopt high quality chrome steel , Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis. This means that they are designed to accommodate combined loads , i.e. simultaneously acting radial and axial loads.

The axial load carrying capacity of angular contact ball bearing NSK 7207 Bearing increases with increasing contact angle . The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis

Angular contact ball bearing NSK 7207 Bearing are manufactured in a wide variety of designs and sizes . The most commonly used designs are:

-- Single row angular contact ball bearings •

-- Double row angular contact ball bearings •

-- Four-point contact ball bearings

Angular contact ball bearing type

α=15° angular contact ball bearing

α=25° angular contact ball bearing

α=40° angular contact ball bearing

Back to back pairs of double angular contact ball bearings

Face to face pairs of angular contact ball bearings

Tandem paired angular contact ball bearings

Double-row angular contact ball bearings with filling slots

Double-row angular contact ball bearings without filling slots

Double-row angular contact ball bearing with one side shielded

Double Shielded Double Row angular contact ball bearing without filling slots

Double Row angular contact ball bearing without filling slots, one side seals

Double Seals Double Row angular contact ball bearing without filling slots

Suffix of angular contact ball bearing NSK 7207 Bearing

B -- Modified internal structure

MP -- Machined Pressed brass cage

TVP -- Glass fiber reinforced nylon cage

UA -- Universal structural design of paired mounting bearings, small axial clearance bearing set

UO -- Universal structural design of pairs of mounted bearings, zero axial clearance bearing set

DA -- two-piece inner ring ( double row angular contact ball bearing )

TVH -- Glass fiber reinforced polyamide cage, steel ball guide

XRB is the China bearing manufacturer,exporter, supplier, it can supply NSK 7207 bearing, Our large quantity Angular Contact Ball Bearings can meet your need with good quality and fast delivery, Also you can find FAG 7207-B-XL-2RS-TVP Bearing, the other type and brand Angular Contact Ball Bearings for Excavator Machinery. just like FAG , NTN , KOYO , TIMKEN . We accepted DHL , FEDEX , TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we asure we can ship high quality NSK 7207 bearing to your office at the first time.
