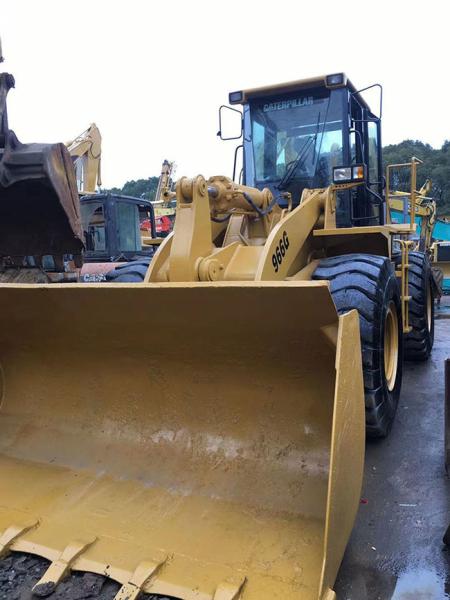

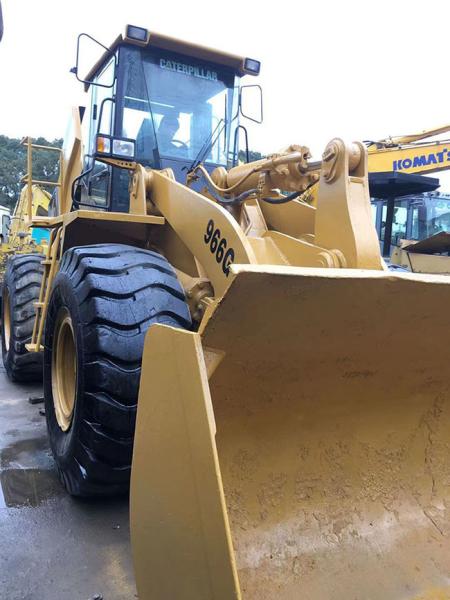

CAT 966G Used Wheel Loader 2010 Year Front End Wheel Loader
CAT 966G Used Wheel Loader 2010 Year Front End Wheel Loader
CAT 966G Used Wheel Loader 2010 Year Front End Wheel Loader
CAT 966G Used Wheel Loader 2010 Year Front End Wheel Loader
CAT 966G Used Wheel Loader 2010 Year Front End Wheel Loader
CAT 966G Used Wheel Loader 2010 Year Front End Wheel Loader
CAT 966G Used Wheel Loader 2010 Year Front End Wheel Loader
CAT 966G Used Wheel Loader 2010 Year Front End Wheel Loader
Specifications
Model Number :
966G
Certification :
CE, ISO
Place of Origin :
JAPAN
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
10 units per month
Delivery Time :
3-5 working days
Packaging Details :
Container
Operating weight :
20485 kg
Year :
2010
Origin :
China mainland
Type :
Front End Wheel Loader
Description

Used Construction Machinery wheel loader CAT 966G Payloader used loader

Net Power 220 hp 164.1 kw
Gross Power
Power Measured @ 2200 rpm
Displacement 640.7 cu in 10.5 L
Number of Cylinders 6
Aspiration Turbocharged
Operational
Operating Weight 45161.7 lb 20485 kg
Fuel Capacity 80.3 gal 304 L
Hydrauilc System Fluid Capacity 54.2 gal 205 L
Engine Oil Fluid Capacity 7.4 gal 28 L
Cooling System Fluid Capacity 10.8 gal 41 L
Transmission Fluid Capacity 15.6 gal 59 L
Front Axle/Diff Fluid Capacity 12.4 gal 47 L
Rear Axle/Diff Fluid Capacity 12.4 gal 47 L
Static Tipping Weight 30825 lb 13982 kg
Turning Radius 22.2 ft in 6779 mm
Operating Voltage 24 V
Alternator Supplied Amperage 50 amps
Rear Axle Oscillation 26 degrees
Tire Size 26.5-25 14PR
Transmission
Type Planetary powershift
Number of Forward Gears 4
Number of Reverse Gears 4
Max Speed - Forward 23.4 mph 37.6 km/h
Max Speed - Reverse 26.5 mph 42.6 km/h
Hydraulic System
Relief Valve Pressure 3000 psi 20684.3 kPa
Pump Flow Capacity 79.8 gal/min 302 L/min
Raise Time 7.1 sec
Dump Time 2 sec
Lower Time 2.4 sec
Bucket
Breakout Force 48446 lb 215.5 kN
Dump Clearance at Max Raise 9.3 ft in 2845 mm
Bucket Width 10.2 ft in 3107 mm
Bucket Capacity - heaped 4.7 yd3 3.6 m3
Bucket Capacity - struck 4 yd3 3.1 m3
Dimensions
Length with Bucket on Ground 27.4 ft in 8366 mm
Width Over Tires 9.6 ft in 2935 mm
Height to Top of Cab 11.8 ft in 3585 mm
Ground Clearance 1.6 ft in 476 mm
Wheelbase 11 ft in 3350 mm
Hinge Pin - Max Height 13.5 ft in 4118 mm
Reach at Max Lift and Dump 4.6 ft in 1398 mm

Available from stock:

CAT 966G Used Wheel Loader 2010 Year Front End Wheel Loader
We also have the following used machines for sale, please check the details below for your reference.




Used Excavator		 1. HITACHI EX100WD, EX120, EX200-1, EX200-2, EX200-3, EX200-5, EX350, ZAXIS200, ZAXIS230
2. KOMATSU PC60, PC120, PC130-7, PC200, PC210, PC220
3. CAT CAT312B, CAT320B, CAT320C, CAT325B, CAT330B, CAT 330C
4. HYUNDAI, DAEWOO, KEBOLCO, SIMITOMO, etc
Used Bulldozer 1. D6D, D6H, D7H, D7G, D8 K, D8N, D9L
2. KOMATSU D75A-1, D85A-18, D85A-21, D155-1, D155-2, D355, D375
Used Road Roller 1. DYNAPAC CA25, CA30 (weight: 8T-14T)
2. BOMAG BW213D-2, BW217D-2, BW219D-2
Used Wheel Loader: 1. KOMATSU WA300, WA350, WA360, WA380, WA400, WA470
2. CAT CAT936E, CAT950B, CAT950F, CAT966D, CAT 966E, CAT966F
3. KAWASAKI KLD65Z, KLD70, KLD70B, KLD80, KLD85, KLD85Z
4. TCM TCM230, TCM870
Used Motor Grader 1. CAT 12G, 120G, 14G, 140H
2. KOMATSU GD511A, GD605R, GD623A
Used Truck Crane 1. KATO: NK250E, NK350E, NK400E-3, NK500E, NK550E
2. TADANO: TL250E, TL300E, TG500E, TG550E, TG650E
Used Crawler Crane 1. HITACHI KH125 35T, KH180 50T, KH700 150T
2. KOBELCO 7045 50T, 5100 100T, 7150 150T
3. SUMITOMO LS118 50T, LS238 100T, LS248 100T


PACKING & SHIPPING:
CAT 966G Used Wheel Loader 2010 Year Front End Wheel Loader
1. Container: The cheapest and fast one ;put the machine into container need disassemble .
2. Flat rack: Often used to ship two wheel loader,max load-bearing is 35tons.
3. Bulk cargo ship: which is better for bigger construction equipment,no need disassemble.
4. RO RO ship: The machine is driven directly into the ship and does not need to be disassembled.



Our customers
CAT 966G Used Wheel Loader 2010 Year Front End Wheel Loader
We have customers from both domestic market and oversea market. Our main sales market:
Asia: Malaysia, Vietnam,Maynmar,Pakistan,Philippines, Bangladesh
Middle East: Saudi Arabia,Iran,Kuwait,Syria,Jordan
Africa: Cameroon ,Egypt, Nigeria,Ghana, Kenya,Tanzania,Guinea
South Ameriaca: Bolivia,Chile,Ecuador,Guyana,Suriname
Our company maintains 500 sets of machine stock for customers to purchase all the year round. Our professional technical team will inspect every machine in detail, and ensure that the machine runs well before shipment. At the same time to provide customers with thoughtful after-sales technical advice and accessories Services.


FAQ:
CAT 966G Used Wheel Loader 2010 Year Front End Wheel Loader
1. How to guarantee the condition and lifetime of the machine ?
A: We choose good condtion and less hour used machines. We are available for third part certificate of all of the machines.
And they are all available for your inspection in its place.
2. How to have after sale service from us ?
A: We have old suppliers in China, used or new parts are available for us to get, with reasonable price and in short time.
3. How can customers make visit and checking in China ?
A: We arrange everything ready for your jouney in China, welcome your happy visit!~
