Children Toy Blow Molding Machine 50mm 65mm 75mm Sea Ball LDPE Blowing Machine
Children Toy Blow Molding Machine 50mm 65mm 75mm Sea Ball LDPE Blowing Machine
Children Toy Blow Molding Machine 50mm 65mm 75mm Sea Ball LDPE Blowing Machine
Children Toy Blow Molding Machine 50mm 65mm 75mm Sea Ball LDPE Blowing Machine
Children Toy Blow Molding Machine 50mm 65mm 75mm Sea Ball LDPE Blowing Machine
Children Toy Blow Molding Machine 50mm 65mm 75mm Sea Ball LDPE Blowing Machine
Children Toy Blow Molding Machine 50mm 65mm 75mm Sea Ball LDPE Blowing Machine
Children Toy Blow Molding Machine 50mm 65mm 75mm Sea Ball LDPE Blowing Machine
Children Toy Blow Molding Machine 50mm 65mm 75mm Sea Ball LDPE Blowing Machine
Children Toy Blow Molding Machine 50mm 65mm 75mm Sea Ball LDPE Blowing Machine
Specifications
Brand Name :
TONGDA
Certification :
CE, ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1SET
Price :
$27,999.00 - $39,999.00/Sets
Payment Terms :
T/T, L/C, D/P, West Union
Supply Ability :
800sets/year
Delivery Time :
28 working days
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Model Number :
TONGDA HTll2L
Warranty of core components :
1 Year
Plastic Processed :
PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
Voltage :
Customized to customer needs
Dimension(L*W*H) :
3.2m*2.12m*2.55m
Hollow part volume :
1-2L
Output (kg/h) :
60 kg/h
Description

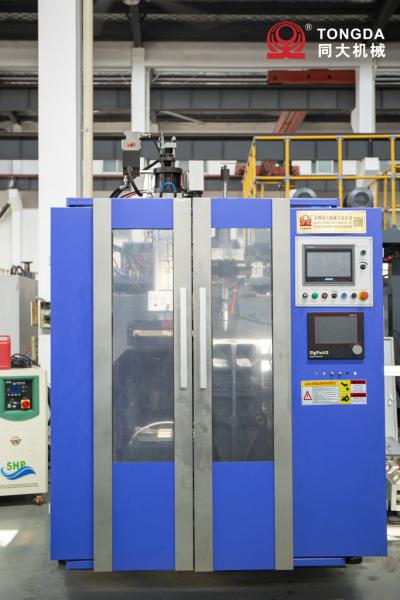

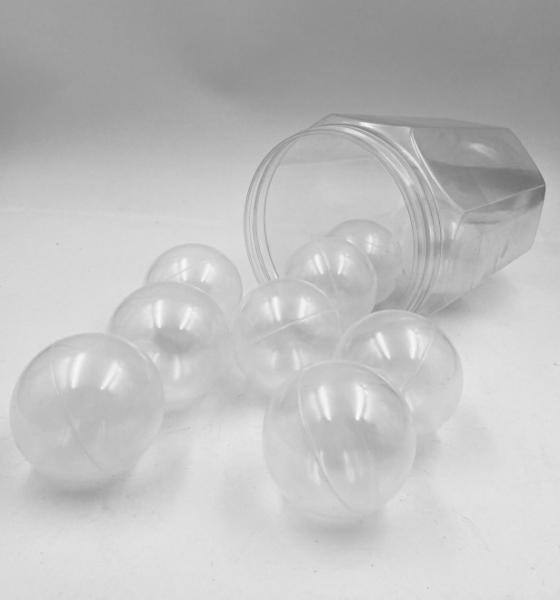

TONGDA HTll2L 50mm 65mm 75mm Children toy ldpe blowing machine sea ball
HTll-2L
This is our basic series machine.It is double station.This machine is suitable for the small bottles and toys.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements, we can provide customized services for you.

Technical parameters

MODEL
Units
HTll-2L
Click for the latest discount details
Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume
L
2
Output of HDPE
kg/h
60
Clamping force
kn
44
Screw diametre
mm
60
Screw heating power
kw
11.2
Blow pressure
mpa
0.6
Size of machine
m
3.2*2.12*2.55

Product Description

Product Details

Large touch screen, equipped with Japanese moog 100 poinst Parison control, simpler operation and more perfect products

Energy accumulator, protect wall thickness controller when suddenly power shut off.

After-sales service

Our company has exported over 4000 units machine to more than 120 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
Company Information
Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 270 employees.
Under normal conditions,the blow molding machine to abroad will be packaged in wooden case. ln addition,we will also pack the machine according to the requirements of specific customers.
FAQ


Advantages of TONGDA tech teams
1. Customize equipment models according to customer product characteristics.

2. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. A free 2-day training course will be provided to customers every year.
5. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
