Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$125,000.00/Sets >=1 Sets
Certification :
CE, ISO9001
MOQ :
1SET
Delivery Time :
28 working days
Payment Terms :
T/T, L/C, D/P, West Union
Model Number :
TDB-160D
Clamping Force (kN) :
740
Screw L/D Ratio :
25
Screw diameter (mm) :
120 mm
Output (kg/h) :
300 kg/h
Accumulator Capacity(L) :
18 L
Platen Distance :
800~1800mm
Blow pressure :
0.6Mpa
Water consunption :
180L/min
Description

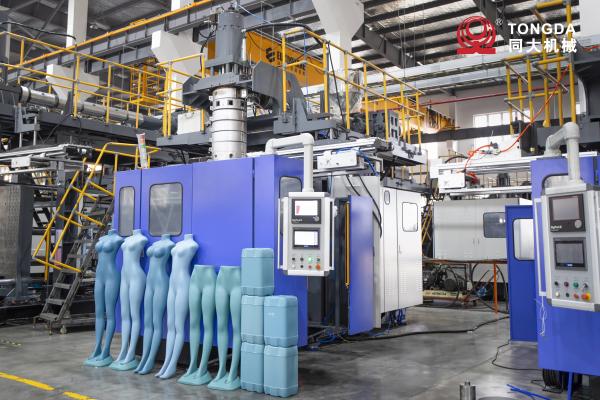

TONGDA TDB-160D Fully Automatic Extrusion HDPE Plastic Mannequin Boat Blow Moulding Machine For Water Tanks

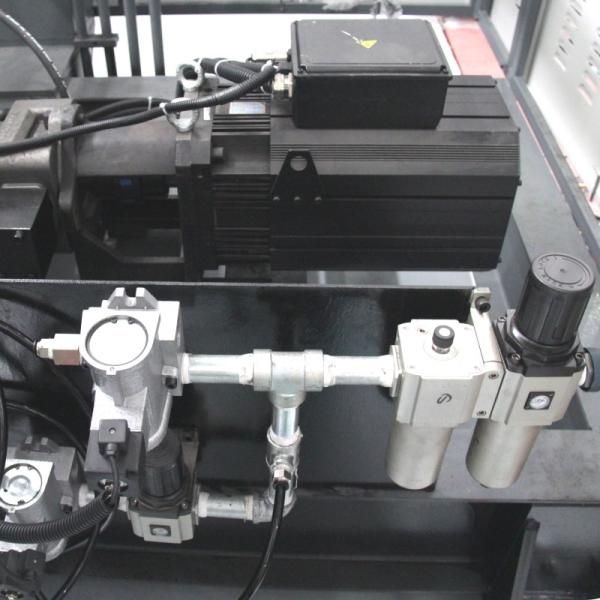

The TDB-160Dmachine is suitable for 120~160L product and it‘s bottom blow.The die-head is accumulator.It equipped with servo motor.The main parts of this machine are designed and manufactured by ourself. We do the independent R&D and inspection. If you have other special requirements, we can provide customized services for you.
Technical Parameters
MODEL
Units
TDB-160D
Remarks: If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
160
Output of HDPE
kg/h
230
Clamping force
kn
740
Screw diametre
mm
100
Screw heating power
kw
26
Blow pressure
mpa
0.6
Size of machine
m
6.02*1.88*4.5
Product Description
Product Details

Bottom Blowing Unit, with high precission of component assembly, can also be equipped with down seal device

Upper parison sealing device, stable and reliable.

Linear guide rails with high quality, so with high running accuracy and longer service life.


Company Information

In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 350 employees.

Warmly welcome new and old customers to visit, to guide.

After-sales Service

During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.


FAQ

Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
