HDPE Plastic Hollow Blow Molding Machine 37 KW Automatic Barrel Making Equipment
HDPE Plastic Hollow Blow Molding Machine 37 KW Automatic Barrel Making Equipment
HDPE Plastic Hollow Blow Molding Machine 37 KW Automatic Barrel Making Equipment
HDPE Plastic Hollow Blow Molding Machine 37 KW Automatic Barrel Making Equipment
HDPE Plastic Hollow Blow Molding Machine 37 KW Automatic Barrel Making Equipment
HDPE Plastic Hollow Blow Molding Machine 37 KW Automatic Barrel Making Equipment
HDPE Plastic Hollow Blow Molding Machine 37 KW Automatic Barrel Making Equipment
HDPE Plastic Hollow Blow Molding Machine 37 KW Automatic Barrel Making Equipment
Specifications
Brand Name :
TONGDA
Model Number :
TONGDA TDB50F
Certification :
CE, ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1SET
Price :
$75,999.00/Sets >=1 Sets
Payment Terms :
T/T, L/C, D/P, West Union
Supply Ability :
800sets/year
Delivery Time :
70 working days
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Dimension(L*W*H) :
5*2.4*3.8
Clamping Force (kN) :
260
Screw L/D Ratio :
25
Screw diameter (mm) :
90 mm
Output (kg/h) :
130 kg/h
Extruder Motor Power(kW) :
37 kW
Accumulator Capacity(L) :
6.6 L
Max. Size of Mold :
700*950
Description

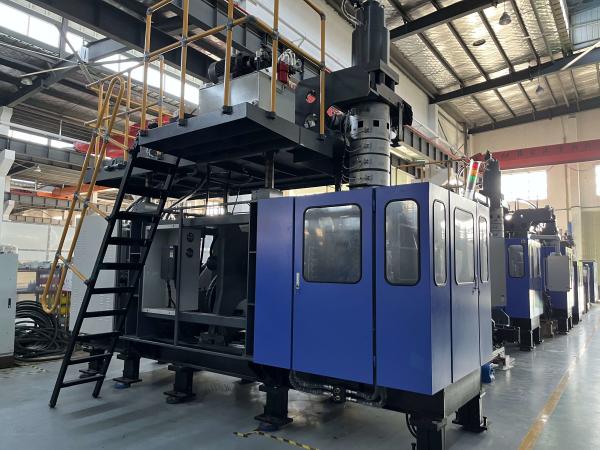

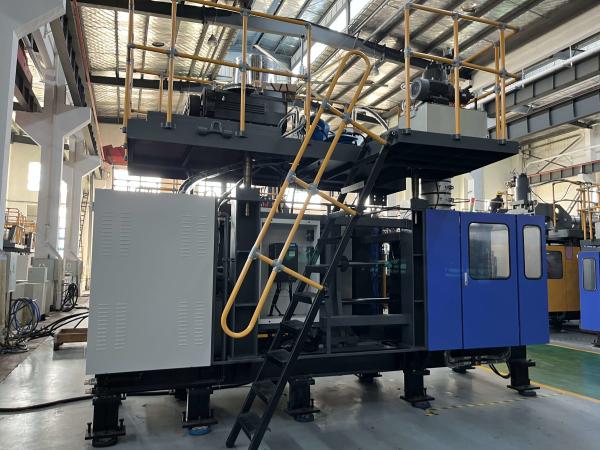

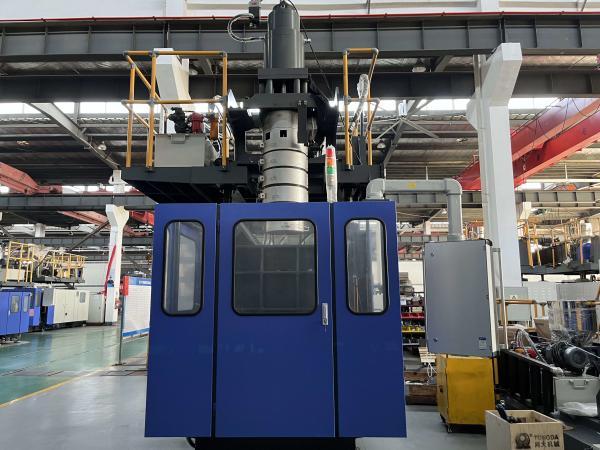

HDPE Plastic Barrel Making Machine Automatic Hollow Blow Molding Equipment
TDB-50F Description

This machine is suitable for 20~50L product and it's bottom blow.The die-head is accumulator. It equipped with servo motor.The main parts of this machine are designed and manufactured by ourself. We do the independent R&D and inspection. If you have other special requirements, we can provide customized services for you.
Technical Parameters of TDB-50F
MODEL Units TDB-50F Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 50
Output of HDPE kg/h 130/160
Clamping force kn 260
Screw diametre mm 90 25:1
Screw heating power kw 17.4
Blow pressure mpa 0.6
Size of machine m 5×2.4×3.8

Product Details

Die head:Using 38CrMoALA, 42CrMo and other high-quality materials, made by precision machining and heat treatment.

15 inches color control screen, with more convenient operation

Company Information

In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 350 employees.

Warmly welcome new and old customers to visit, to guide.

After-sales Service

During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
