HDPE 5L Plastic Bottle Blow Molding Machine 80mm Fully Automatic Double Station
HDPE 5L Plastic Bottle Blow Molding Machine 80mm Fully Automatic Double Station
HDPE 5L Plastic Bottle Blow Molding Machine 80mm Fully Automatic Double Station
HDPE 5L Plastic Bottle Blow Molding Machine 80mm Fully Automatic Double Station
HDPE 5L Plastic Bottle Blow Molding Machine 80mm Fully Automatic Double Station
HDPE 5L Plastic Bottle Blow Molding Machine 80mm Fully Automatic Double Station
HDPE 5L Plastic Bottle Blow Molding Machine 80mm Fully Automatic Double Station
HDPE 5L Plastic Bottle Blow Molding Machine 80mm Fully Automatic Double Station
HDPE 5L Plastic Bottle Blow Molding Machine 80mm Fully Automatic Double Station
HDPE 5L Plastic Bottle Blow Molding Machine 80mm Fully Automatic Double Station
Specifications
Brand Name :
TONGDA
Model Number :
TONGDA HSII-5L
Certification :
CE, ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1SET
Price :
$35,000.00 - $85,000.00/Sets
Payment Terms :
T/T, L/C, D/P, West Union
Supply Ability :
800sets/year
Delivery Time :
28 working days
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Core Components :
PLC, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Plastic Processed :
PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
Voltage :
Customized to customer needs
Dimension(L*W*H) :
4.9m*3.1m*3.2m
Hollow part volume :
1-5L
Clamping Force (kN) :
110
PLC Brand :
MITSUBISHI
Screw L/D Ratio :
25
Screw diameter (mm) :
80 mm
Output (kg/h) :
110 kg/h
Automation :
Automatic
No. of Screw Heating Zone :
5
Screw Heating Power(kW) :
19 kW
Extruder Motor Power(kW) :
30 kW
Mold Platen Size(Width)(mm) :
480 mm
Mold Platen Size(Height)(mm) :
450 mm
Air Pressure(MPa) :
0.6 MPa
Air Comsumption(m³/min) :
0.8 m³/min
Die Head Heating Power(kW) :
10.7 kW
Power (kW) :
80
Weight (T) :
9
Key Selling Points :
Long Service Life
Applicable Industries :
Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Restaurant, Food & Beverage Factory, Farms
Showroom Location :
Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
Rotary Cylinder Brand :
FESTO
Station :
Double Station
Suitable bottle :
1-5L
Key words :
Automatic Extrusion Blow Moulding Machine
Packing :
Wooden
Use :
Hollow Moulding
Parison Control :
MOOG
Max. Size of Mold :
480*450
Color :
Blue
Description

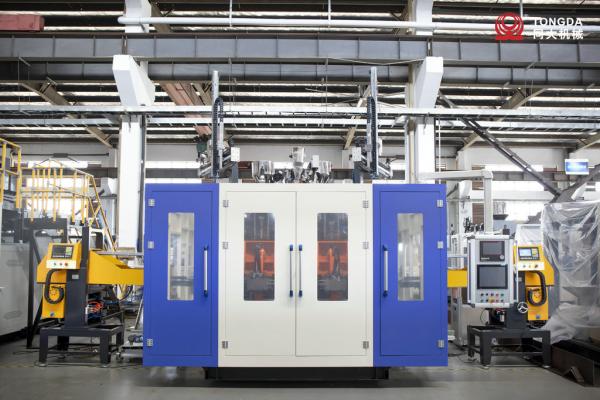

TONGDA HSII-5L HDPE 5L Plastic Bottle Blow Molding Machine Fully Automatic Double Station

Product Description

This is our best series machine.This is hydraulic servo system.The clamping unit is elbow style and the clamping force is more uniform.It is high speed and energy-saving. This machine is suitable for ry pack wipes disinfecting wet wipes canister/Daily chemical vegetable wash fruit cleaning /cream lotion cosmetic bottle, etc.It can be also equipped with several die-heads and then to make the small product.

Technical Parameters

MODEL Units HSII-5L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 5
Output of HDPE kg/h 110
Clamping force kn 110
Screw diametre mm 80
Screw heating power kw 19
Blow pressure mpa 0.6
Size of machine m 4.5*2.7*3.1

Product Details

CE Standard

Modularized components, easy replace

Digitizing and famous

Optional 3D Manipulator

Reduce manual sorting costs and improve productino efficiency

Company Information

Suzhou Tongda Machinery Co., Ltd has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work station. Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center, Jiangsu Province post-doctoral innovation practice base and other R & D platforms. That means constantly exploring the expansion of new areas.

After-sales services

Tongda has a sound service network, perfect after-sales service system, 14 professional after-sales service teams across the country, and a timely response service mechanism to continuously improve user satisfaction. Serve every customer sincerely, respond quickly, and solve the problems raised by customers in a timely manner. We will regularly send debugging engineers to visit customers and solve problems in time.

FAQ

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.


Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.


Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
