Automatic PE Blow Molding Machine Extrusion Small Cosmetic Bottle Making Machine
Automatic PE Blow Molding Machine Extrusion Small Cosmetic Bottle Making Machine
Automatic PE Blow Molding Machine Extrusion Small Cosmetic Bottle Making Machine
Automatic PE Blow Molding Machine Extrusion Small Cosmetic Bottle Making Machine
Automatic PE Blow Molding Machine Extrusion Small Cosmetic Bottle Making Machine
Automatic PE Blow Molding Machine Extrusion Small Cosmetic Bottle Making Machine
Automatic PE Blow Molding Machine Extrusion Small Cosmetic Bottle Making Machine
Automatic PE Blow Molding Machine Extrusion Small Cosmetic Bottle Making Machine
Automatic PE Blow Molding Machine Extrusion Small Cosmetic Bottle Making Machine
Automatic PE Blow Molding Machine Extrusion Small Cosmetic Bottle Making Machine
Automatic PE Blow Molding Machine Extrusion Small Cosmetic Bottle Making Machine
Automatic PE Blow Molding Machine Extrusion Small Cosmetic Bottle Making Machine
Automatic PE Blow Molding Machine Extrusion Small Cosmetic Bottle Making Machine
Automatic PE Blow Molding Machine Extrusion Small Cosmetic Bottle Making Machine
Specifications
Brand Name :
TONGDA
Model Number :
HTSII-2L
Certification :
CE, ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1SET
Price :
$39,999.00 - $54,999.00/Sets
Payment Terms :
T/T, L/C, D/P, West Union
Supply Ability :
800sets/year
Delivery Time :
28 working days
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Station :
Double Station
Suitable bottle :
1-2L
Screw diameter (mm) :
60 mm
Screw L/D Ratio :
25
Output :
60 kg/h
Clamping Force :
44KN
Mold moving stroke :
370mm
Description

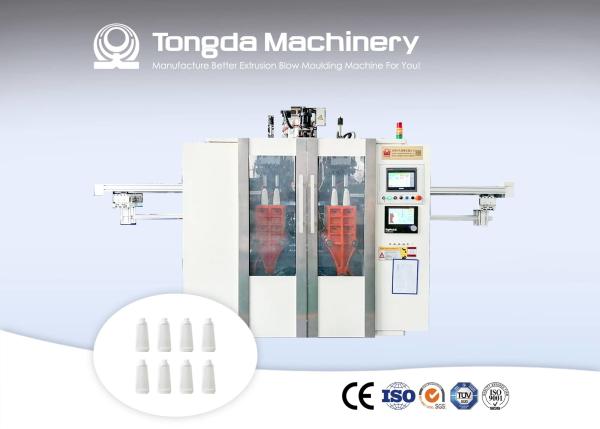

TONGDA HTSII2L Automatic Extrusion Blow Molding Machine Small PE Cosmetic Bottles Making Machine Blowing Machinery

Product Description

This HTS series machine is our most cost effective series machine. HTSII-2L machine is suitable for producing HDPE bottles size below 2 liters. If equipped with multi heads die-head, it also suitable for small HDPE/PP plastic cosmetic bottles blow molding.

The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.

Technical Parameters
MODEL
Units
HTSll-2L
Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume
L
2
Output of HDPE
kg/h
60
Clamping force
kn
44
Screw diametre
mm
60
Screw heating power
kw
11.2
Blow pressure
mpa
0.6
Size of machine
m
4.1*2.6*2.7

Product Details

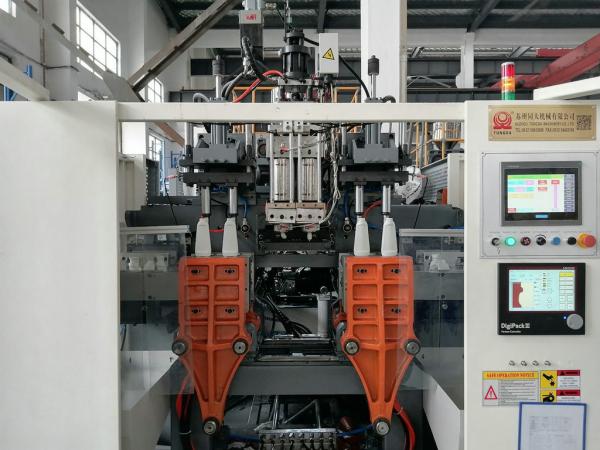

Automatic PE Blow Molding Machine Extrusion Small Cosmetic Bottle Making Machine

Multi-head die head confituration available for different output requirement, from 1 cavity to 8 cavity, we all can supply.

Automatic PE Blow Molding Machine Extrusion Small Cosmetic Bottle Making Machine

Service Marketing Network

1. Over four thousand Tongda machines have been serving customers all over the world.
2. The company has service outlets in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria.
3. our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
Automatic PE Blow Molding Machine Extrusion Small Cosmetic Bottle Making Machine
Our Machinery has been keeping good cooperative relationship with customers since our establishing.
The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.

Company information

Service network

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.

Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
